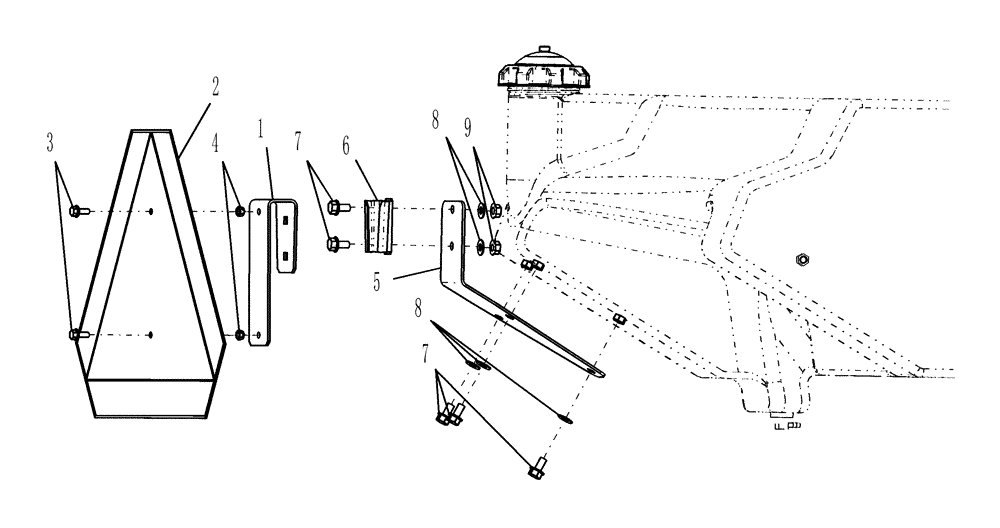

Запчасти Case IH FARMALL 55 (08.01.01) - SMV MOUNT & BRACKET (08) - SHEET METAL

1

87636035

BRACKET

SMV

1шт.

2

87308105

WARNING TRIANGLE

SMV W/Plastic Backing Plate

1шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

4

353308

NUT,M6 x 1.0, Cl 8

2шт.

5

87636033

BRACKET

SMV Mount

1шт.

6

847590

BRACKET

Mounting

1шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.
