(10.400.BE[02]) - RADIATOR, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (10.400.BE[02]) - RADIATOR, FARMALL 40C, 50C (10) - ENGINE

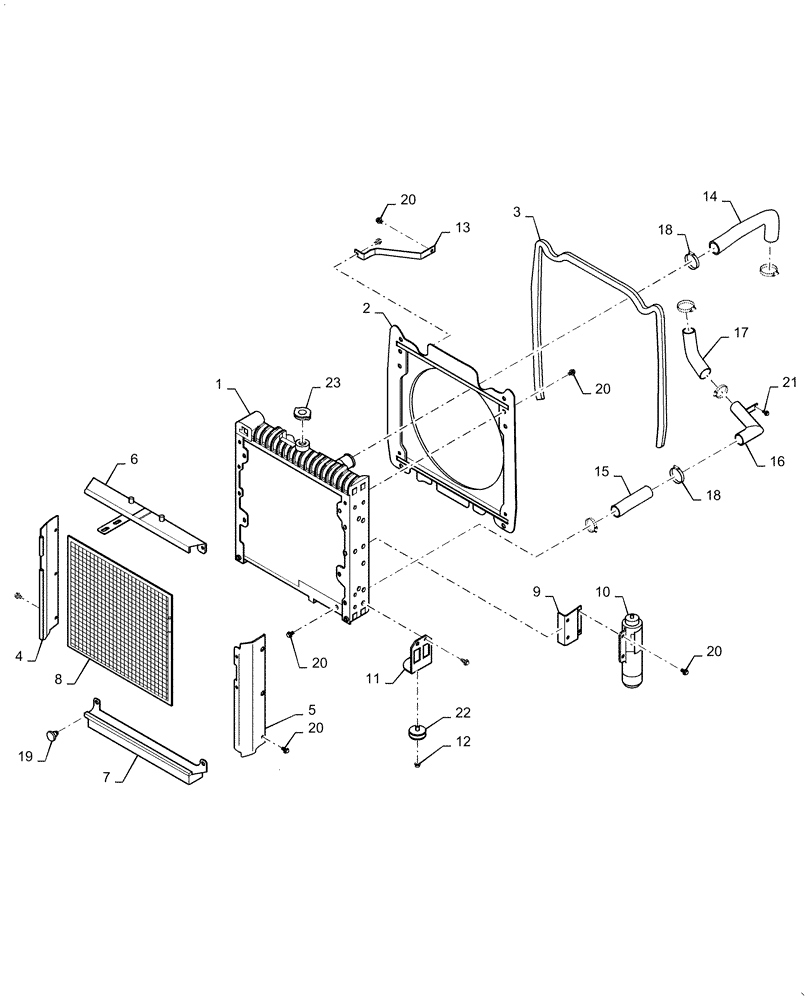

Схема запчастей Case IH FARMALL 50C - (10.400.BE[02]) - RADIATOR, FARMALL 40C, 50C (10) - ENGINE
1
2
14
4
7
20
20
8
18
17
15
23
22
11
12
10
20
5
13
21
6
3
9
20
16
19
20
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40266447

RADIATOR

Engine

1шт.

2

MT40266453

SHROUD,3mm Thk

Radiator

1шт.

3

MT40266462

RUBBER WEATHERSTRIP

Radiator

1шт.

4

MT40266449

COVER,1.2mm Thk

Net, RH

1шт.

5

MT40266448

COVER,1.2mm Thk

Net, LH

1шт.

6

MT40266451

SUPPORT

Net, Top

1шт.

7

MT40266452

SUPPORT,1.2mm Thk

Net, Bottom

1шт.

8

MT40282268

NET,1.2mm Thk

Radiator

1шт.

9

MT40277096

BRACKET

Reservoir Tank

1шт.

10

MT40278771

RESERVOIR, COOLANT E

1шт.

11

MT40277403

BRACKET

Radiator

2шт.

12

MT40029079

FLANGE NUT,M10 x 1.25

2шт.

13

MT40266465

SUPPORT

Radiator

1шт.

14

MT40266456

HOSE

Coolant, Out

1шт.

15

MT40266455

HOSE

Coolant, In

1шт.

16

MT40277328

PIPE

Coolant

1шт.

17

MT40266425

HOSE

Coolant, In

1шт.

18

MT40012013

CLAMP,27mm - 50mm

6шт.

19

MT40012987

KNOB

1шт.

20

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

25шт.

21

MT40028973

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

22

MT40007459

DAMPER

2шт.

23

MT40242668

RADIATOR CAP

1шт.
