(55.302.AG[02]) - BATTERY, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (55.302.AG[02]) - BATTERY, FARMALL 40C, 50C (55) - ELECTRICAL SYSTEMS

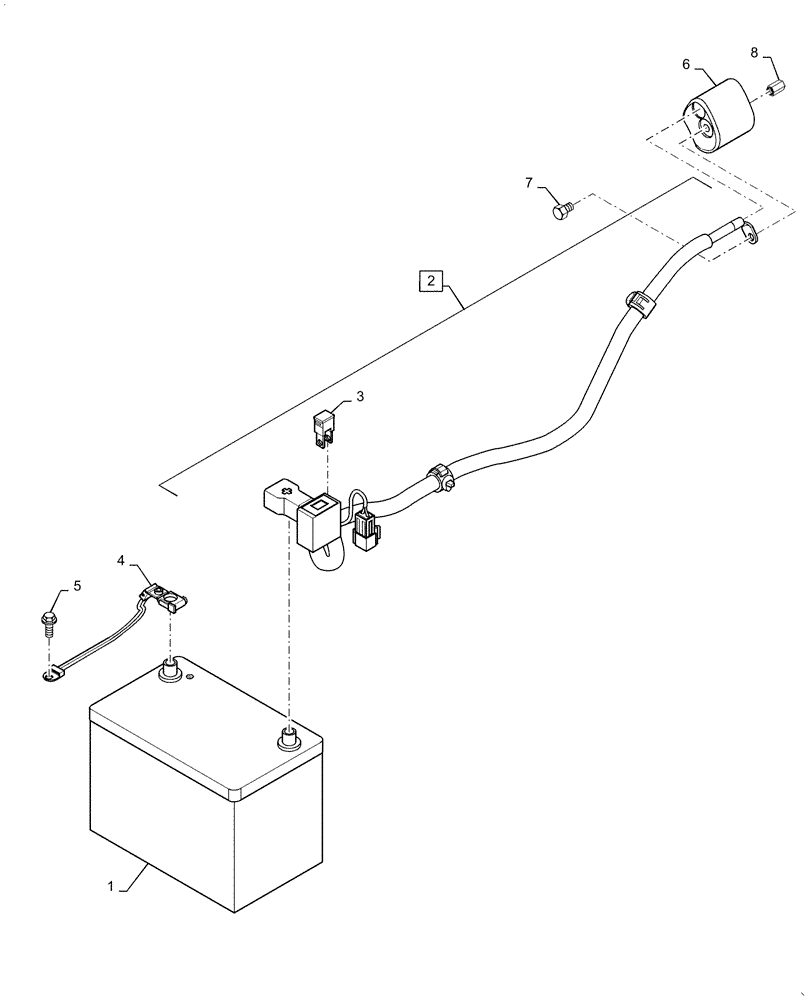

Схема запчастей Case IH FARMALL 50C - (55.302.AG[02]) - BATTERY, FARMALL 40C, 50C (55) - ELECTRICAL SYSTEMS
6
home
7
5
8
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BCM34770W

WET BATTERY

CIH US

1шт.

1

CCM34770W

WET BATTERY

CIH CAN

1шт.

Group 24, F790DSW – 600 CCA

1шт.

Group 34, BNH34770W – 770 CCA

1шт.

2

MT40293861

POS BATTERY CABLE

(+) Battery

2шт.

3

MT40279800

FUSE

100A

2шт.

4

MT40007155

CABLE,330mm L

(-) Battery

4шт.

5

MT40183617

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 1.25 x 25

1шт.

6

MT40293263

COVER

Motor

1шт.

7

MT40229814

BOLT

Flange, M8xP1.25

1шт.

8

MT40229813

NUT

1шт.
