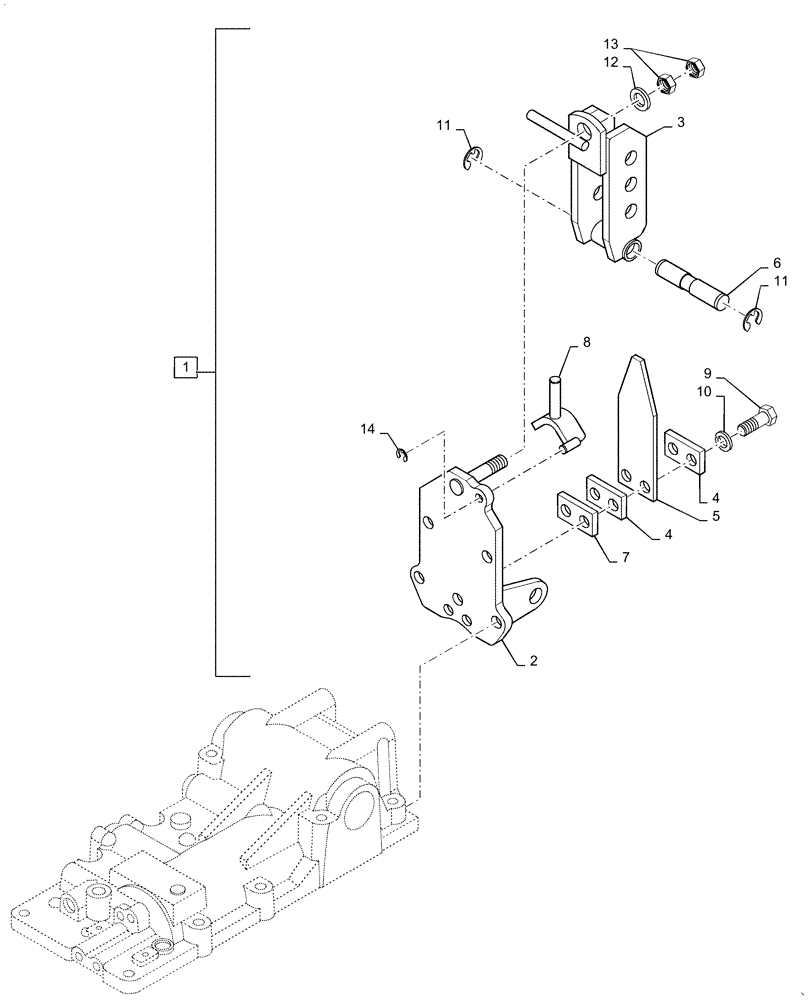

Запчасти Case IH FARMALL 50C (37.120.AL[05]) - UPPER LINK BRACKET, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40297459

BRACKET

Assy, Upper Link, Incl 2 - 14

1шт.

2

MT40278641

BRACKET

Upper Link

1шт.

3

MT40011577

BRACKET

Top Link

1шт.

4

MT40011893

PLATE

2шт.

5

MT40011918

SPRING

1шт.

6

MT40009474

PIN,20mm OD x 130mm L

1шт.

7

MT40012346

PLATE

1шт.

8

MT40012166

STOP DEVICE

1шт.

9

MT40028895

BOLT,Hex, M14 x 1.5 x 40mm

2шт.

10

MT40029083

WASHER,14.2mm ID x 24.7mm OD x 4.2mm Thk

Spring

2шт.

11

MT40029322

SNAP RING,M15, Ext

2шт.

12

MT40028178

WASHER,17mm ID x 30mm OD x 3mm Thk

Plain

1шт.

13

MT40029052

NUT,Hex, M16 x 1.6

2шт.

14

MT40029317

RING,M8, Ext

1шт.
