(37.120.AF[02]) - STABILIZER, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (37.120.AF[02]) - STABILIZER, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

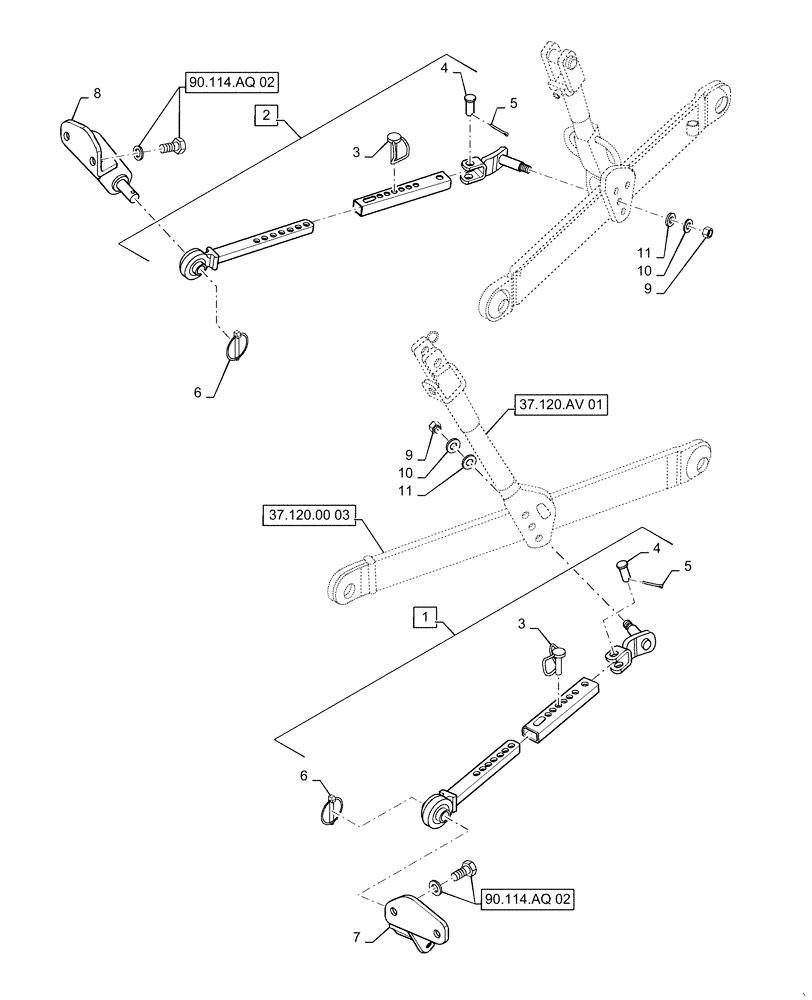

Схема запчастей Case IH FARMALL 50C - (37.120.AF[02]) - STABILIZER, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
4
9
90.114.aq 02
4
6
2
3
9
11
3
8
37.120.av 01
90.114.aq 02
5
5
6
7
37.120.00 03
10
11
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40270996

STABILIZER

Link Assy, LH, Incl 3 - 5

1шт.

2

MT40282087

STABILIZER

Link Assy, RH, Incl 3 - 5

1шт.

3

MT40279936

PIN

1шт.

4

MT40036102

PIN,17mm OD x 40mm L

1шт.

5

MT40036103

PIN,4mm OD x 25mm L

1шт.

6

MT40012410

PIN,11mm OD x 50mm L

2шт.

7

MT40272368

BRACKET

Check Chain, LH

1шт.

8

MT40272367

BRACKET

Check Chain, RH

1шт.

9

MT40029049

NUT,Hex, M12 x 1.25 Pitch

2шт.

10

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring

2шт.

11

MT40028172

WASHER,13mm ID x 24mm OD x 2.5mm Thk

Plain

2шт.
