(37.120.00[03]) - UPPER LINK AND LOWER LINK, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (37.120.00[03]) - UPPER LINK AND LOWER LINK, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

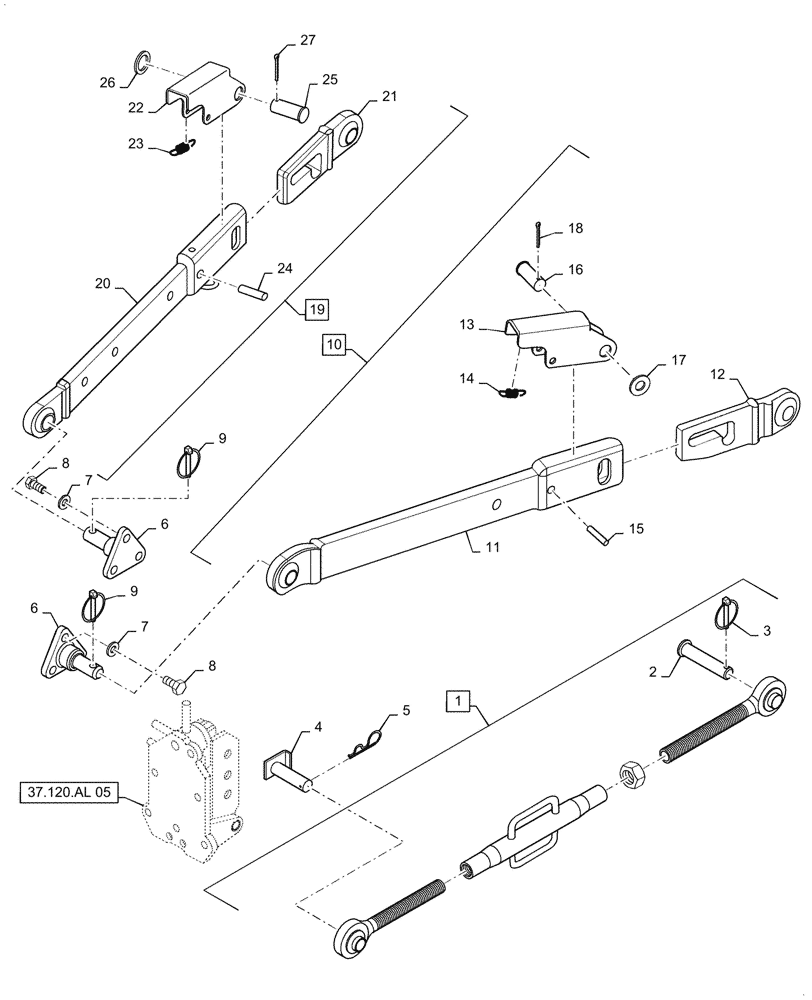

Схема запчастей Case IH FARMALL 50C - (37.120.00[03]) - UPPER LINK AND LOWER LINK, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.al 05
23
8
15
17
21
20
26
27
24
14
5
7
3
19
7
9
9
2
12
11
25
8
16
13
1
4
18
6
6
22
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40008084

TOP LINK

Assy Top w/ Pin Incl 2, 3

1шт.

2

MT40010207

PIN,19mm OD x 99mm L

Upper Link

1шт.

3

MT40012410

PIN,11mm OD x 50mm L

1шт.

4

MT40012529

PIN,19mm OD 90mm L

Upper Link Front

1шт.

5

MT40011979

PIN,20mm OD x 80mm L

1шт.

6

MT40010160

PIN

Lower Link

2шт.

7

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring

6шт.

8

MT40029395

BOLT,Hex, M14 x 2 x 35mm

6шт.

9

MT40012410

PIN,11mm OD x 50mm L

2шт.

10

MT40251381

LOWER LINK

Assy, LH Incl 11 - 18

1шт.

11

MT40251383

LOWER LINK

LH

1шт.

12

MT40227146

LIFT LINK END ASSY

LH

1шт.

13

MT40227147

COVER

Lower Link

1шт.

14

MT40227145

SPRING

Lower Link

1шт.

15

MT40116303

PIN,10mm OD x 50mm L

Spring

1шт.

16

MT40227144

LOCK PIN

Lower Lock

1шт.

17

MT40086650

WASHER,23mm OD x 3mm Thk

Plain

1шт.

18

MT40114756

COTTER PIN,M50 x 36mm L

1шт.

19

MT40251380

LOWER LINK

Assy, RH Incl 20 - 27

1шт.

20

MT40251382

LOWER LINK

RH

1шт.

21

MT40228102

LIFT LINK END ASSY

Lower, RH

1шт.

22

MT40227147

COVER

Lower Link

1шт.

23

MT40227145

SPRING

Lower Link

1шт.

24

MT40116303

PIN,10mm OD x 50mm L

Spring

1шт.

25

MT40227144

LOCK PIN

Lower Link

1шт.

26

MT40086650

WASHER,23mm OD x 3mm Thk

Plain

1шт.

27

MT40114756

COTTER PIN,M50 x 36mm L

1шт.
