(37.110.AP[02]) - REAR HITCH HOUSING, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (37.110.AP[02]) - REAR HITCH HOUSING, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

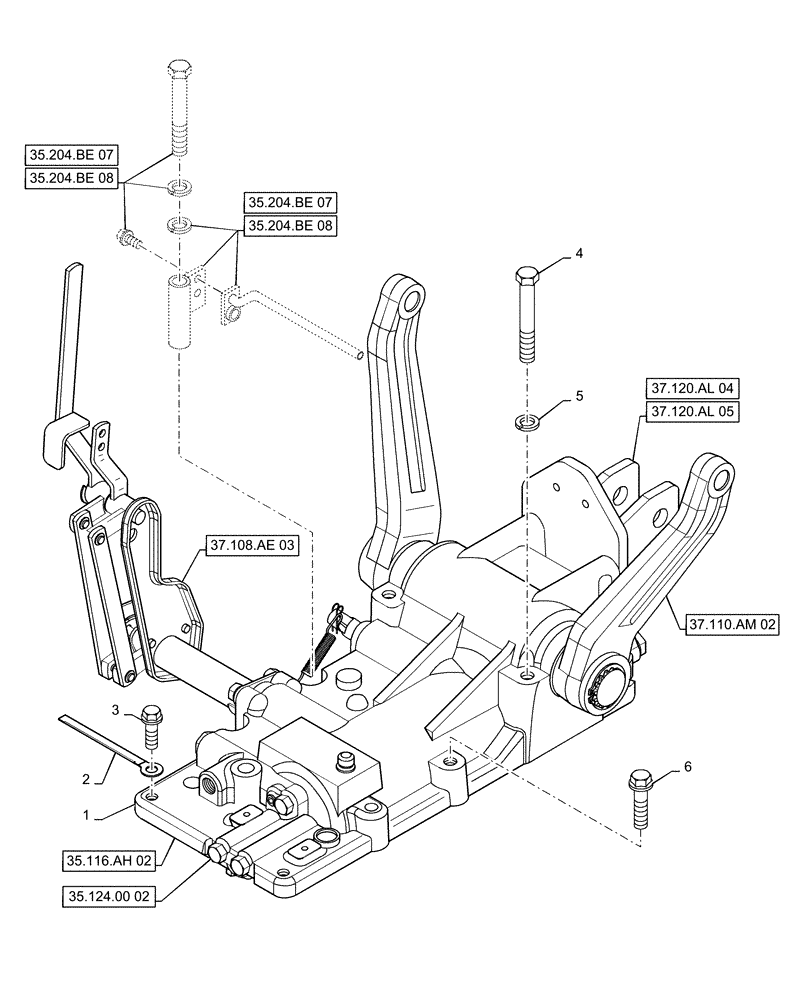

Схема запчастей Case IH FARMALL 50C - (37.110.AP[02]) - REAR HITCH HOUSING, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
1
6
2
35.204.be 08
37.110.am 02
37.108.ae 03
35.204.be 08
5
35.204.be 07
4
35.116.ah 02
3
37.120.al 04
35.204.be 07
35.124.00 02
37.120.al 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT20123910

HOUSING

Assy, Hydr

1шт.

2

MT40012733

CLAMP,10mm W x 140mm L

1шт.

3

MT40028940

BOLT,Hex, M12 x 1.75 x 40mm

3шт.

4

MT40029442

BOLT,Hex, M12 x 1.75 x 110mm

2шт.

5

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring

2шт.

6

MT40028943

BOLT,M12 x 1.75 x 60mm

4шт.
