(35.204.BE[13]) - REMOTE CONTROL VALVE, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (35.204.BE[13]) - REMOTE CONTROL VALVE, FARMALL 40C, 50C (35) - HYDRAULIC SYSTEMS

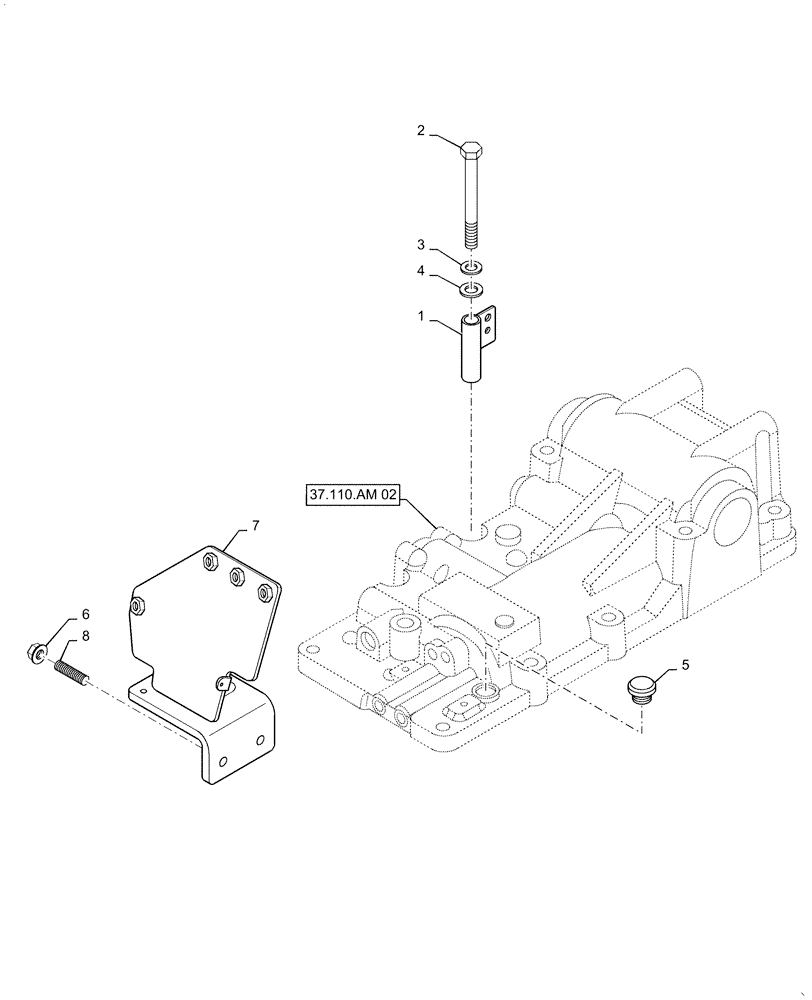

Схема запчастей Case IH FARMALL 50C - (35.204.BE[13]) - REMOTE CONTROL VALVE, FARMALL 40C, 50C (35) - HYDRAULIC SYSTEMS
37.110.am 02
3
4
5
1
2
7
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40296435

BRACKET

Hose Clamp

1шт.

2

MT40029442

BOLT,Hex, M12 x 1.75 x 110mm

1шт.

3

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

1шт.

4

MT40028159

WASHER,13mm ID x 21mm OD x 2.50mm Thk

Plain

1шт.

5

MT40007464

CAP

Rubber

1шт.

6

MT40029079

FLANGE NUT,M10 x 1.25

2шт.

7

MT40051027

BRACKET

Remote Control Valve

1шт.

8

MT40029017

STUD,M10 x 1.25 x25mm

2шт.
