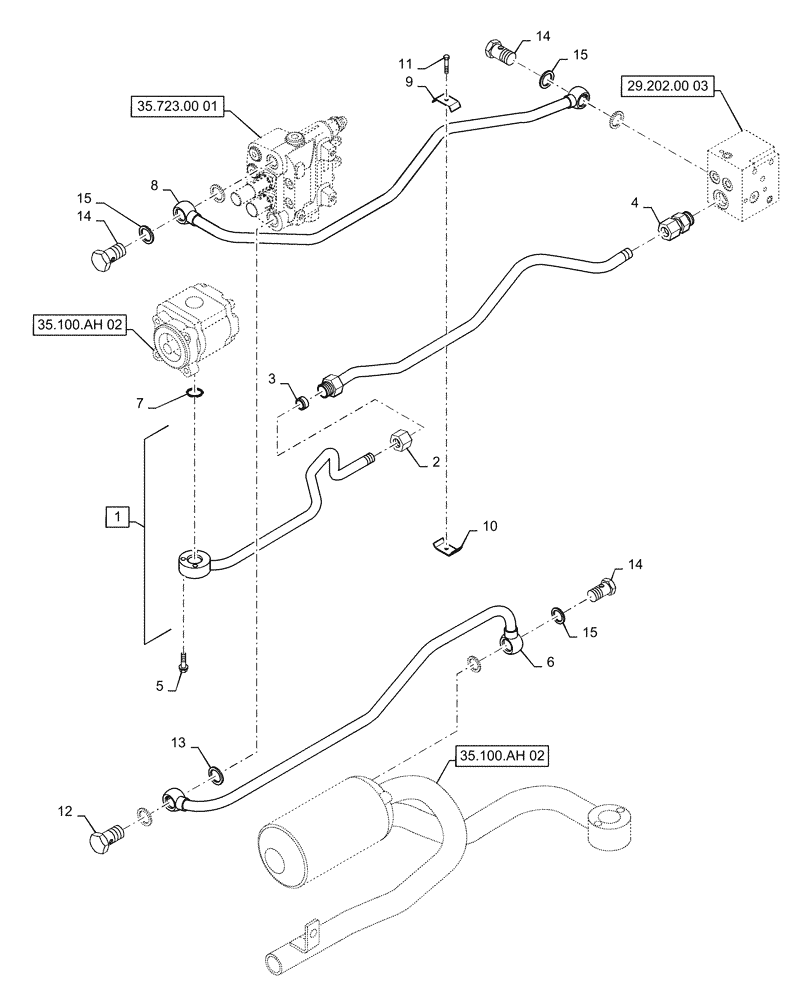

Запчасти Case IH FARMALL 50C (35.100.00[06]) - HYDRAULIC LINES, FARMALL 40C, 50C (35) - HYDRAULIC SYSTEMS

1

MT40269090

PIPE

Assy, Frt Press Incl 2 - 4

1шт.

2

MT40269072

NUT

1шт.

3

MT40269071

SLEEVE

1шт.

4

MT40009907

JOINT,15mm ID x 1/2"

1шт.

5

MT40028913

BOLT,M6 x 1 x30mm L

3шт.

6

MT40280065

PIPE,83mm ID x .8mm Thk

Drain

1шт.

7

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

8

MT40280066

PIPE,15mm OD x 1.5mm Thk

Mid Press

1шт.

9

MT40012306

CLAMP,2.3mm Thk

1шт.

10

MT40012307

PIPE CLAMP,2.3mm Thk

1шт.

11

MT40028968

BOLT,Hex, M6 x 1 x 30mm

1шт.

12

MT40010250

BOLT,Union 1/2" x 36mm L

Union

3шт.

13

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

Bonded

6шт.

14

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

Union

1шт.

15

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded

2шт.
