(35.100.00[03]) - HYDRAULIC LINES, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (35.100.00[03]) - HYDRAULIC LINES, FARMALL 40C, 50C (35) - HYDRAULIC SYSTEMS

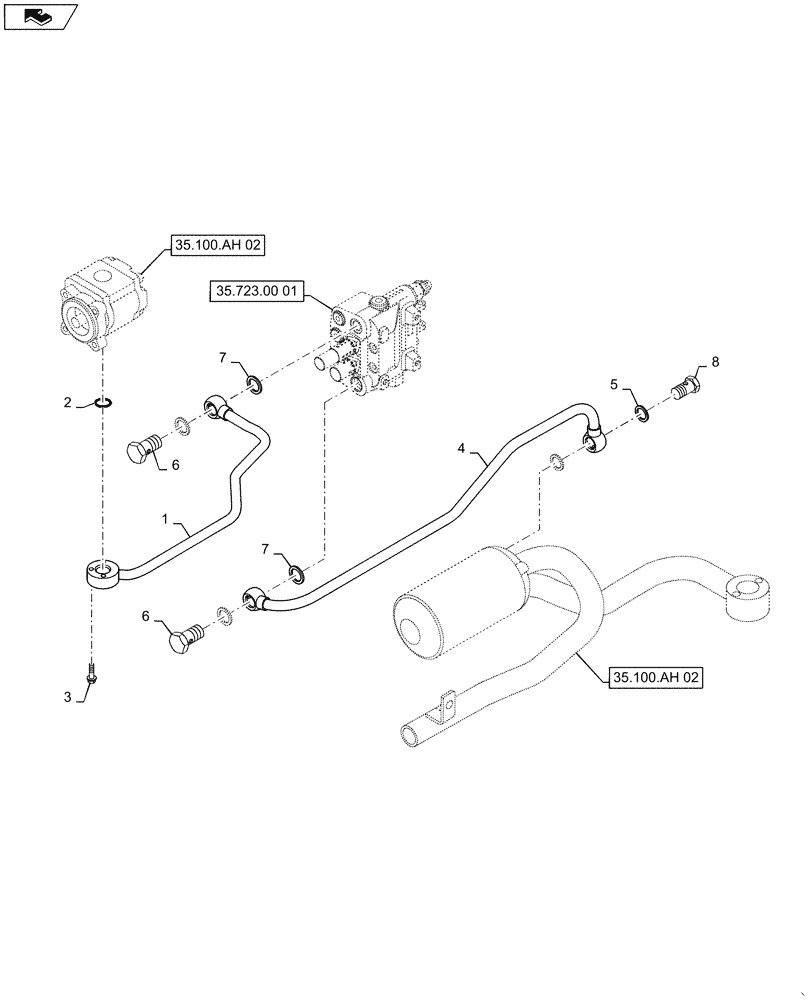

Схема запчастей Case IH FARMALL 50C - (35.100.00[03]) - HYDRAULIC LINES, FARMALL 40C, 50C (35) - HYDRAULIC SYSTEMS
8
35.100.ah 02
35.100.ah 02
7
6
2
3
1
35.723.00 01
6
4
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40280019

PIPE

Frt Press

1шт.

2

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

3

MT40028913

BOLT,M6 x 1 x30mm L

3шт.

4

MT40280065

PIPE,83mm ID x .8mm Thk

Drain

1шт.

5

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded

2шт.

6

MT40010250

BOLT,Union 1/2" x 36mm L

2шт.

7

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

Bonded

4шт.

8

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

1шт.

Выбрано товаров: 8
