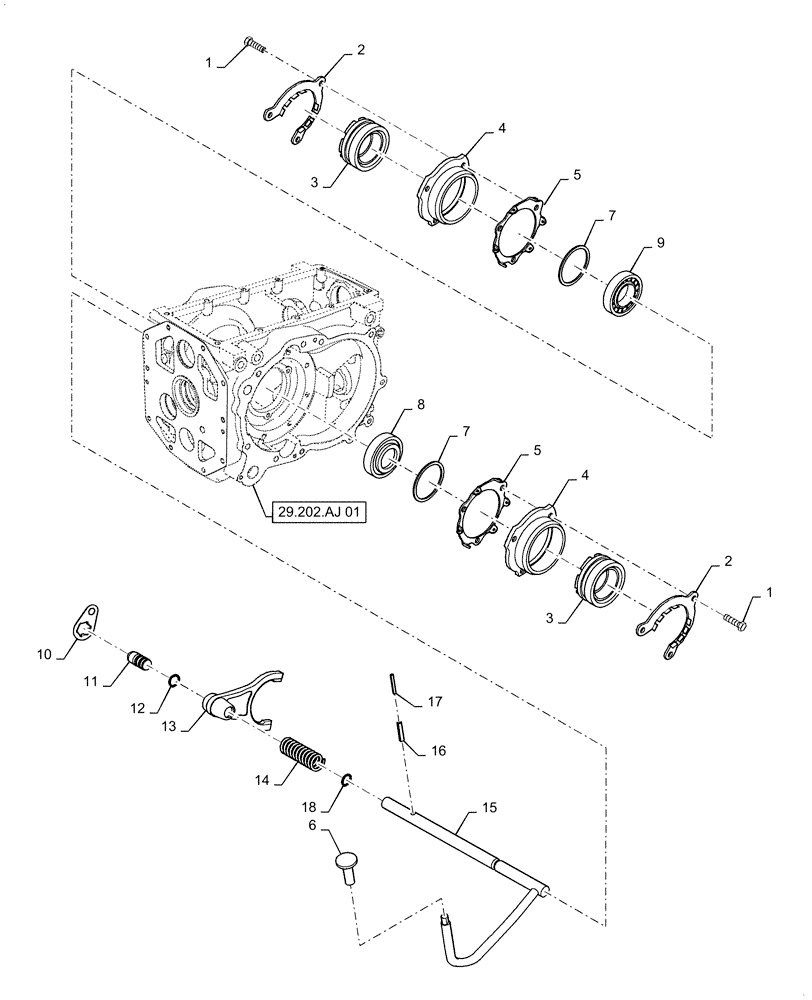

Запчасти Case IH FARMALL 50C (27.106.AK[03]) - DIFFERENTIAL LOCK, HST, FARMALL 40C, 50C (27) - REAR AXLE SYSTEM

1

MT40029523

BOLT,Hex, M10 x 1.25 x 25mm

6шт.

2

MT40011827

PLATE,1mm Thk

Lock

2шт.

3

MT40010125

SCREW,38mm ID x 85mm OD x 30mm

Differential Lock

2шт.

4

MT40009869

SUPPORT

Differential Lock

2шт.

5

MT40012622

HOLDER,3.20mm Thk

Spring, LH

2шт.

6

MT40277910

PEDAL

Differential Lock Foot

1шт.

7

MT40009787

SPACER,77.10mm ID x 89.10mm OD x 2.30mm

2шт.

8

MT40010341

TAPERED BEARING

1шт.

9

MT40012713

BALL BEARING

1шт.

10

MT40011826

PLATE

Lock

1шт.

11

MT40010016

ADAPTER,31mm OD x 52mm L

Rear Differential Lock Shaft

1шт.

12

MT40029247

O-RING,2mm Thk x 27.50mm OD

1шт.

13

MT40009321

FORK

Differential Lock

1шт.

14

MT40011981

SPRING,4.50mm x 21.50mm OD x 98.50mm L

Differential Lock

1шт.

15

MT40255059

PEDAL

Differential Lock, HST

1шт.

16

MT40029179

PIN,Spring, M8 x 40mm L

Spring

1шт.

17

MT40029164

PIN,Spring, M5 x 40mm

Spring

1шт.

18

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

1шт.
