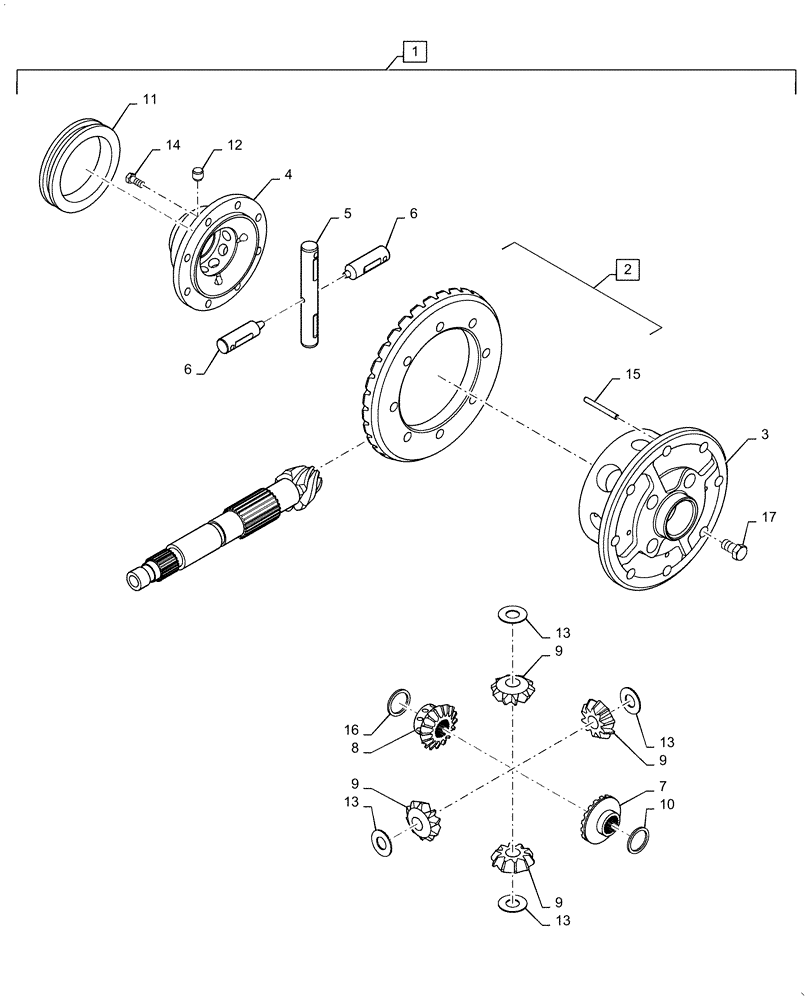

Запчасти Case IH FARMALL 50C (27.106.AC[02]) - REAR AXLE, DIFFERENTIAL, FARMALL 40C, 50C (27) - REAR AXLE SYSTEM

1

MT40175412

AXLE DIFFERENTIAL

Assy, Rear, Incl 2 - 17

1шт.

2

MT40050167

PINION

Pinion and Ring

1шт.

3

MT40009020

CASE

Diff

1шт.

4

MT40009434

CASE

Diff

1шт.

5

MT40213136

SHAFT

1шт.

6

MT40213137

SHAFT

2шт.

7

MT40182443

GEAR

Diff, Side, RH

1шт.

8

MT40182442

GEAR

Diff, Side, LH

1шт.

9

MT40182444

GEAR

Pinion Drive

4шт.

10

MT40012426

WASHER,41.47mm ID x 71.44mm OD x 0.8mm Thk

1шт.

11

MT40009810

HUB,99mm OD x 17mm L

Diff Lock

1шт.

12

MT40009888

ROLLER,12mm OD

10шт.

13

MT40012423

WASHER,19.45mm ID x 45.07mm OD x 0.80mm Thk

4шт.

14

MT40182447

BOLT,M8

8шт.

15

MT40029174

PIN,Spring, M6 x 50mm L

Spring

3шт.

16

MT40012128

WASHER,55mm ID x 74mm OD x 0.8mm Thk

LH

1шт.

17

MT40182446

BOLT,M12

8шт.
