(25.100.AA[02]) - FRONT AXLE, ASSY, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (25.100.AA[02]) - FRONT AXLE, ASSY, FARMALL 40C, 50C (25) - FRONT AXLE SYSTEM

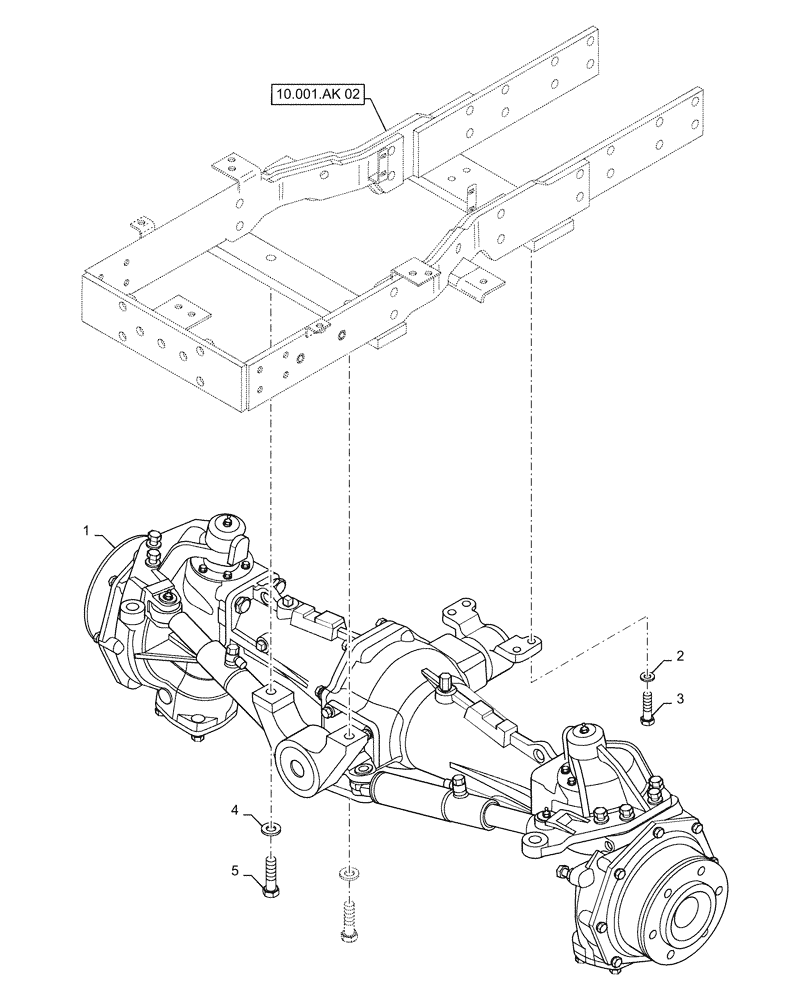

Схема запчастей Case IH FARMALL 50C - (25.100.AA[02]) - FRONT AXLE, ASSY, FARMALL 40C, 50C (25) - FRONT AXLE SYSTEM
10.001.ak 02
1
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT20021266

FRONT AXLE

, Years: -29-NOV-16

1шт.

1

MT20144157

FRONT AXLE

Axle Assy, Start Year: 30-NOV-16

1шт.

2

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring

4шт.

3

MT40090251

BOLT,M12 x 1.25 x 45mm

4шт.

4

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

Spring

2шт.

5

MT40029476

BOLT,M16 x 1.5 x 40mm

2шт.
