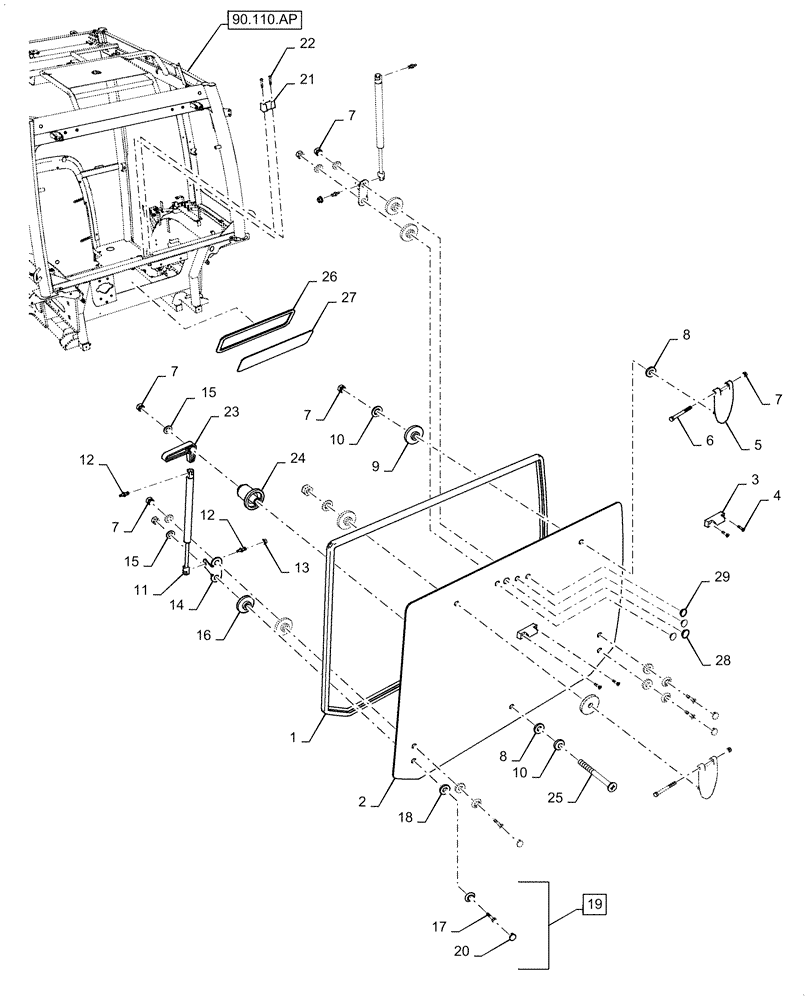

Запчасти Case IH FARMALL 50C (90.156.AB) - CAB GLASS, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40255028

WEATHERSTRIP

1шт.

2

MT40255027

GLASS

Rear Window

1шт.

3

MT40008355

SUPPORT

2шт.

4

MT40028671

SCREW,M6 x 1 x 20mm L

4шт.

5

MT40260604

HINGE

Rear Upper

2шт.

6

MT40029352

BOLT,M8 x 1.25 x 90mm L

2шт.

7

MT40027836

NUT

9шт.

8

MT40008342

CUSHION,37mm OD x 9mm ID x 5mm Thk

Left

3шт.

9

MT40008336

CUSHION,16mm OD x 9mm ID x 5mm Thk

Plastic

2шт.

10

MT40008374

SPACER

3шт.

11

MT40249482

GAS STRUT

2шт.

12

MT40238907

PIVOT

4шт.

13

MT40029075

FLANGE NUT,Hex, M8 x 1.25

2шт.

14

MT40030772

BRACKET

Gas Cylinder

2шт.

15

MT40028157

WASHER,8.40mm ID x 15.50mm OD x 1.60mm Thk

5шт.

16

MT40248718

RUBBER INSULATOR

4шт.

17

MT40071691

SCREW,M8 x 1.25 x 30mm L

4шт.

18

MT40248715

RUBBER INSULATOR

4шт.

19

MT40235635

CAP

Assembly, Black, Incl 20

4шт.

20

MT40235636

CAP

Black

1шт.

21

MT40008359

STOP DEVICE

Lock

1шт.

22

MT40028660

SCREW,M6 x 1 x 35mm L

2шт.

23

MT40008357

HANDLE

Door

1шт.

24

MT40008358

SPACER

Handle

1шт.

25

MT40028677

SCREW,M8 x 1.25 x 70mm L

1шт.

26

MT40255022

WEATHERSTRIP

1шт.

27

MT40255021

GLASS

Rear Lower

1шт.

28

MT40255030

CAP

1шт.

29

MT40255031

CAP

3шт.
