(50.200.CD) - AIR CONDITIONING, BLOWER, FARMALL 40C, 50C

Запчасти Case IH FARMALL 50C (50.200.CD) - AIR CONDITIONING, BLOWER, FARMALL 40C, 50C (50) - CAB CLIMATE CONTROL

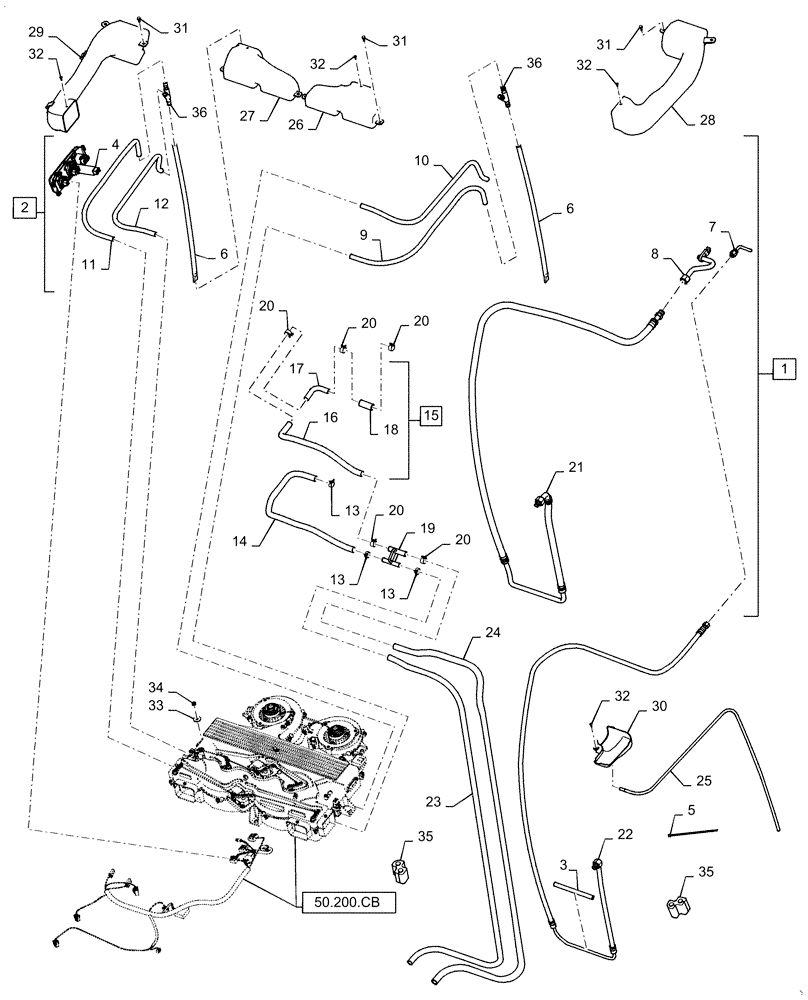

Схема запчастей Case IH FARMALL 50C - (50.200.CD) - AIR CONDITIONING, BLOWER, FARMALL 40C, 50C (50) - CAB CLIMATE CONTROL
50.200.cb
9
31
31
12
6
21
13
20
35
36
33
24
3
13
32
27
17
32
1
31
20
20
8
28
2
32
22
13
20
20
15
18
6
25
16
26
30
23
35
7
36
5
4
11
10
34
32
29
19
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40254743

AIR PRE-CLEANER ASSY

Kit, HVAC, Incl 2, 4, 6 - 21

1шт.

2

MT40278692

AIRCOND. COMPRESSOR

Incl 4, 6 - 21

1шт.

3

MT40287022

HOSE

1шт.

4

MT40278677

CONTROLLER

HVAC

1шт.

5

MT40012737

BAND,143mm L x 7.5mm

2шт.

6

MT40278678

HOSE

Drain, Lower

2шт.

7

MT40254740

UNIVERSAL JOINT

HVAC, Liquid

1шт.

8

MT40279272

UNIVERSAL JOINT

HVAC, Suction

1шт.

9

MT40292577

HOSE

HVAC, Front Left

1шт.

10

MT40292580

HOSE

HVAC, Rear Left

1шт.

11

MT40292578

HOSE

HVAC, Front Right

1шт.

12

MT40292579

HOSE

HVAC, Rear Right

1шт.

13

MT40273303

CLAMP

3шт.

14

MT40278682

HOSE

Water, Heat, Rear

1шт.

15

MT40254741

HOSE

Liquid, Incl 16 - 18

1шт.

16

MT40278687

HOSE

Water, Rear Left

1шт.

17

MT40278684

UNIVERSAL JOINT

Water, Left

1шт.

18

MT40278686

HOSE

Water, Left, Out

1шт.

19

MT40276815

UNIVERSAL JOINT

HVAC, By Pass

1шт.

20

MT40273304

CLAMP

1шт.

21

MT40254745

HOSE

Suction

1шт.

22

MT40254746

HOSE

Liquid

1шт.

23

MT40278690

HOSE

Water, H/T Front

1шт.

24

MT40278689

HOSE

Water, L/T Front

1шт.

25

MT40007904

HOSE,7.5mm ID x 9.5mm OD x 1800mm L

Drain

1шт.

26

MT40254748

DUCT

Defrost, Left

1шт.

27

MT40254747

DUCT

Defrost, Right

1шт.

28

MT40254749

DUCT

Vent, Left

1шт.

29

MT40254750

DUCT

Vent, Right

1шт.

30

MT40275972

HOSE

Water, Pocket

1шт.

31

MT40093946

BOLT,Hex, M6 x1 x 16mm

8шт.

32

MT40029022

SCREW,M4 x 1.4 x 16mm

6шт.

33

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

6шт.

34

MT40028720

NUT,Hex, M8 x 1.25

6шт.

35

MT40275660

SEAL

Sponge

2шт.

36

MT40292686

UNIVERSAL JOINT

Drain

2шт.
