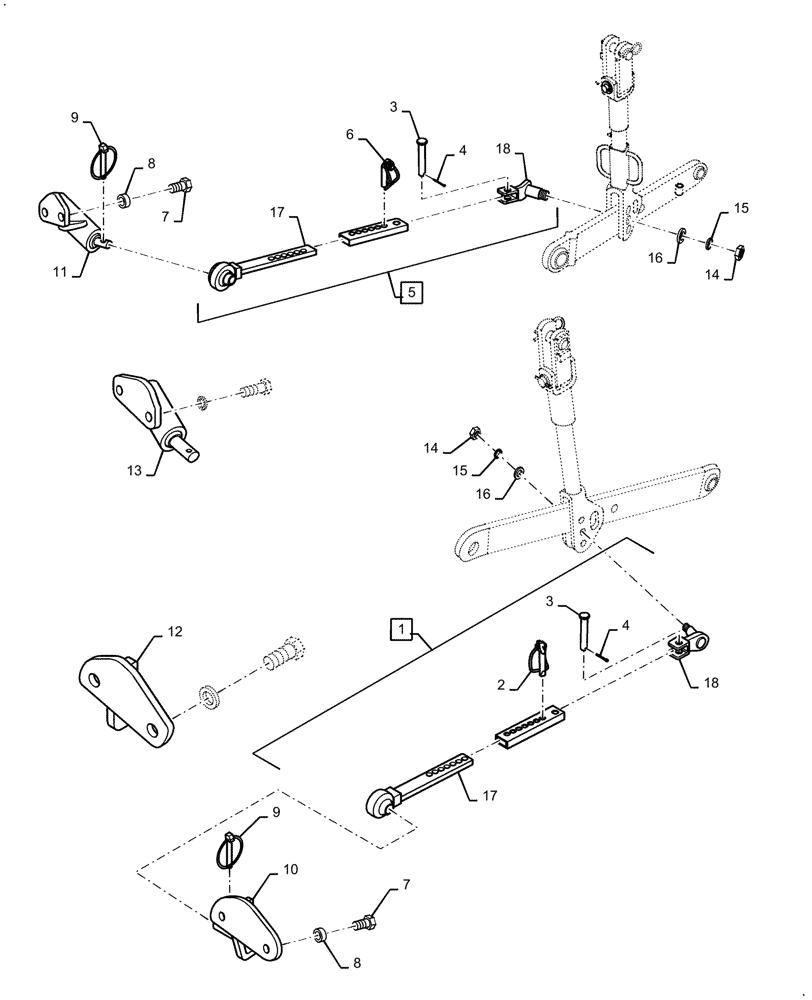

Запчасти Case IH FARMALL 50C (37.120.AF[02]) - STABILIZER, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40270996

STABILIZER

Incl 2 - 4, 17 & 18

1шт.

2

MT40279936

PIN

1шт.

3

MT40036102

PIN,17mm OD x 40mm L

2шт.

4

MT40036103

PIN,4mm OD x 25mm L

2шт.

5

MT40282087

STABILIZER

Incl 3 - 4, 6, 17 & 18

1шт.

6

MT40279936

PIN

1шт.

7

MT40278909

BOLT,Hex, M14 x 2 x 35mm

4шт.

8

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

4шт.

9

MT40012410

PIN,11mm OD x 50mm L

2шт.

10

MT40288500

BRACKET

Cabin

1шт.

11

MT40288601

BRACKET

Cabin

1шт.

12

MT40272368

BRACKET

Frame

1шт.

13

MT40272367

BRACKET

Frame

1шт.

14

MT40029049

NUT,Hex, M12 x 1.25 Pitch

2шт.

15

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

2шт.

16

MT40028172

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

17

MT40270997

ROD

2шт.

18

MT40213185

LINK,4.5mm Thk

2шт.
