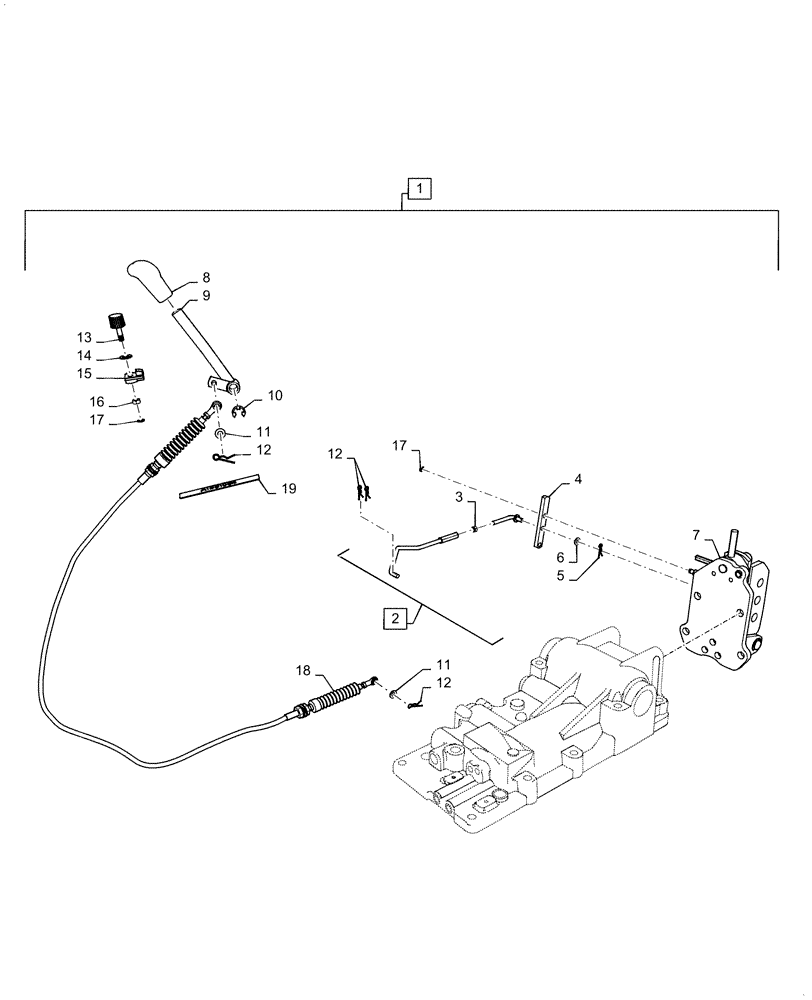

Запчасти Case IH FARMALL 50C (37.108.AG[02]) - CONTROL LINK KIT, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT20137907

KIT

Draft Control, Incl 2 - 19

1шт.

2

MT40008157

LINK

Assy, Draft, Incl 3 - 6

1шт.

3

MT40029041

NUT,M8 x 1.25

1шт.

4

MT40009458

LINK BLOCK

Link Pack

1шт.

5

MT40029131

PIN,M8

1шт.

6

MT40028169

WASHER,8.40mm ID x 17mm OD x 1.60mm Thk

Plain

1шт.

7

MT40278640

UPPER LINK

Assembly, Upper Link

1шт.

8

MT40235094

KNOB

Hydraulic Lever - Green

1шт.

9

MT40254768

LEVER

Draft

1шт.

10

MT40029320

RING,M12

1шт.

11

MT40028157

WASHER,8.40mm ID x 15.50mm OD x 1.60mm Thk

2шт.

12

MT40029131

PIN,M8

4шт.

13

MT40196688

GRIP

Hydraulic Lever

1шт.

14

MT40243207

WASHER

1шт.

15

MT40008351

STOP DEVICE

1шт.

16

MT40028768

NUT,Hex, M8 x 1.25

1шт.

17

MT40029314

SNAP RING,M6

2шт.

18

MT40254941

CABLE

Draft

1шт.

19

MT40008830

DECAL

Hydraulic + Draft

1шт.
