Запчасти Case IH FARMALL 50B (31.104.AR) - PTO HYDRAULIC BLOCK (31) - IMPLEMENT POWER TAKE OFF

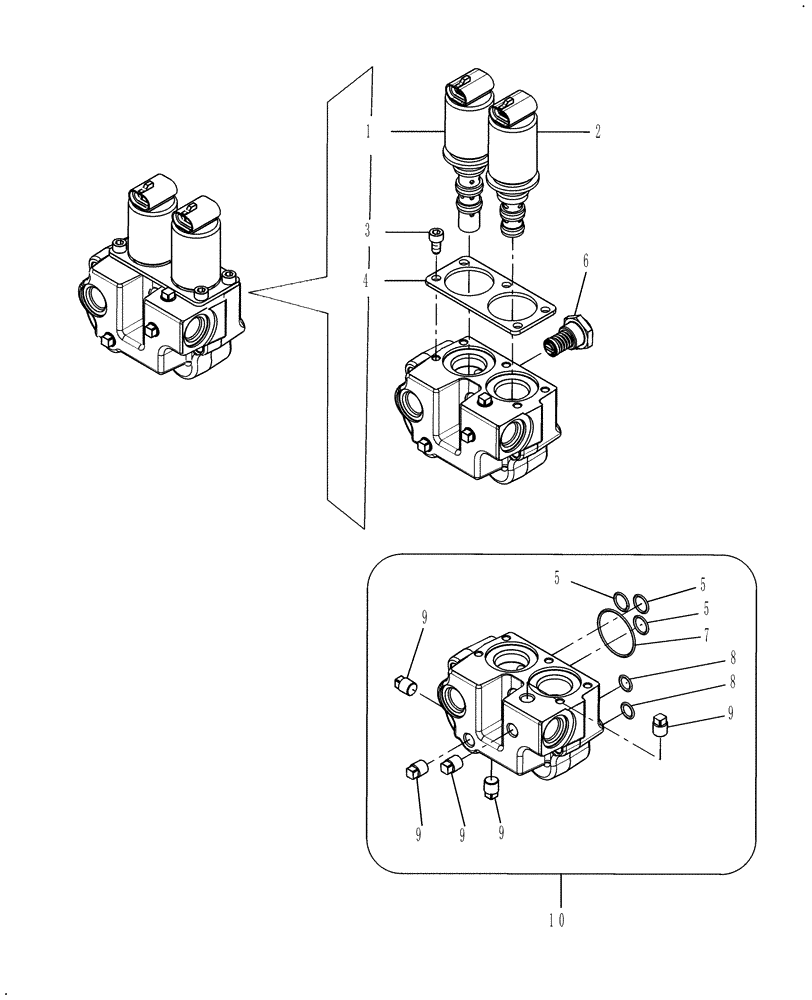

Схема запчастей Case IH FARMALL 50B - (31.104.AR) - PTO HYDRAULIC BLOCK (31) - IMPLEMENT POWER TAKE OFF
9
5
2
5
9
6
8
5
3
4
10
9
9
8
1
9
7

Артикул

Название

Примечание

Количество

1

87739558

SOLENOID VALVE,14W

Proportional Valve

1шт.

87739558R

REMAN-SOLENOID

Boomer 3040, N.A. Only

1шт.

87739558C

CORE-SOLENOID

Return Number, For N.A. Only

1шт.

2

87416918

SOLENOID

Dump

1шт.

3

GRT71282

BOLT

Hex M6 x 12

5шт.

4

NS

NOT SERVICED

Valve Fixing Plate

1шт.

5

GRT70793

O-RING

3шт.

6

GRT3347463

VALVE

Lube

1шт.

7

GRT71786

O-RING

Seal, 1.78 x 34.65

1шт.

8

GRT72577

O-RING,9.91mm ID x 12.61mm OD x 1.14mm Thk

Seal, 1.78 x 9.75

2шт.

9

NS

NOT SERVICED

Tapered Threaded Plug M10 x 1.25

5шт.

10

GRT3VT01563

BLOCK

Rear PTO Hydraulic Block

1шт.

Выбрано товаров: 12
