(23.304.AJ[03]) - FWD/MID PTO ENGAGEMENT

Запчасти Case IH FARMALL 50B (23.304.AJ[03]) - FWD/MID PTO ENGAGEMENT (23) - FOUR WHEEL DRIVE SYSTEM

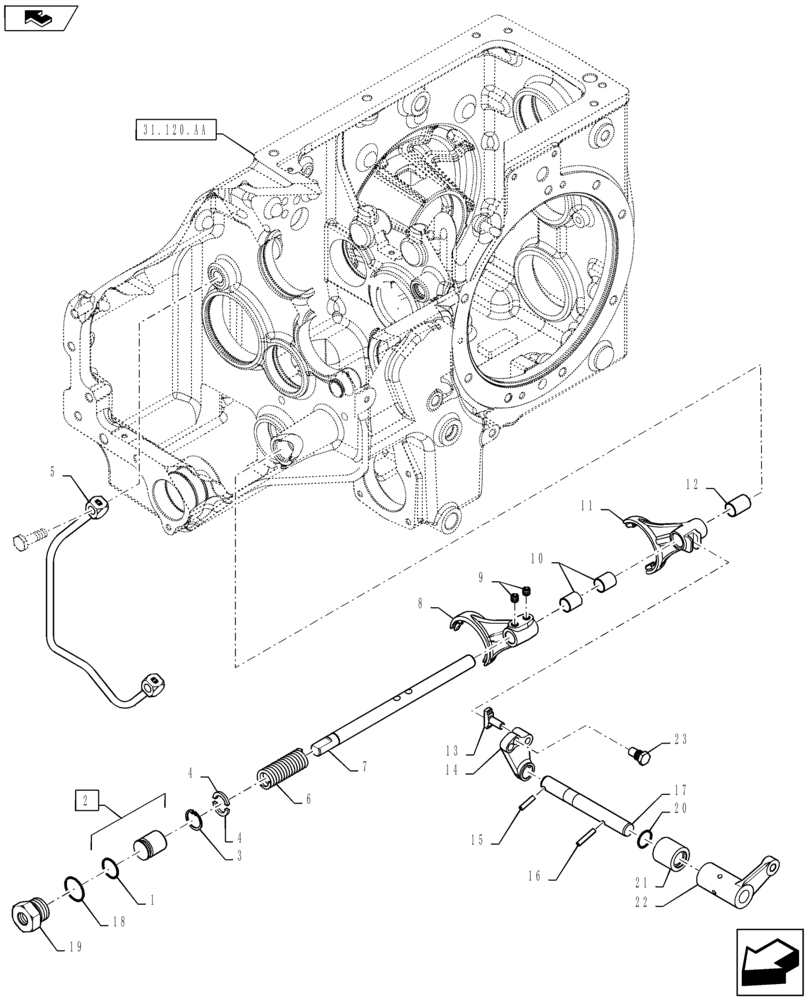

Схема запчастей Case IH FARMALL 50B - (23.304.AJ[03]) - FWD/MID PTO ENGAGEMENT (23) - FOUR WHEEL DRIVE SYSTEM
19
23
8
6
12
4
20
14
22
13
5
10
18
home
17
31.120.aa
2
9
11
16
4
1
3
15
7
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

GRT72498

O-RING

Seal, 2.62 x 18.72

1шт.

2

GRT3VT01413

PISTON

FWD

1шт.

3

GRT72690

RING

Retaining

1шт.

4

GRT3495373

PISTON RING

FWD End Stop Spacer

2шт.

5

GRT3474303

PIPE

FWD Coupling Inlet

1шт.

6

GRT3469653

SPRING

FWD Piston Return

1шт.

7

GRT3495363

SHAFT

FWD Mid PTO Fork Shifting Rod

1шт.

8

GRT3469603

FORK

FWD Engagement

1шт.

9

GRT72389

SCREW

M8 x 10 CL 10.9

2шт.

10

GRT3474343

BUSHING

15 x 17 x 20

2шт.

11

GRT3469593

BUSHING

Mid PTO Engagement

1шт.

12

GRT3347943

BUSHING

15 x 17 x 25

1шт.

13

GRT3346883

PIN

PTO Lever Sliding

1шт.

14

GRT3346593

LEVER

PTO

1шт.

15

GRT71694

PIN

Spring Split

1шт.

16

GRT71264

PIN

Spring Split

1шт.

17

GRT3484303

ROD

Mid PTO Engagement Lever

1шт.

18

GRT3474503

OIL SEAL

19.4 x 2.1

1шт.

19

GRT3474213

REDUCER

FWD Piston

1шт.

20

GRT70462

O-RING

Seal, 2.62 x 15.54

1шт.

21

GRT3484313

SPACER

Mid PTO Lever

1шт.

22

GRT3346903

LEVER

PTO External

1шт.

23

GRT3307623

DETENT

4WD Coupling Inlet Pipe

1шт.
