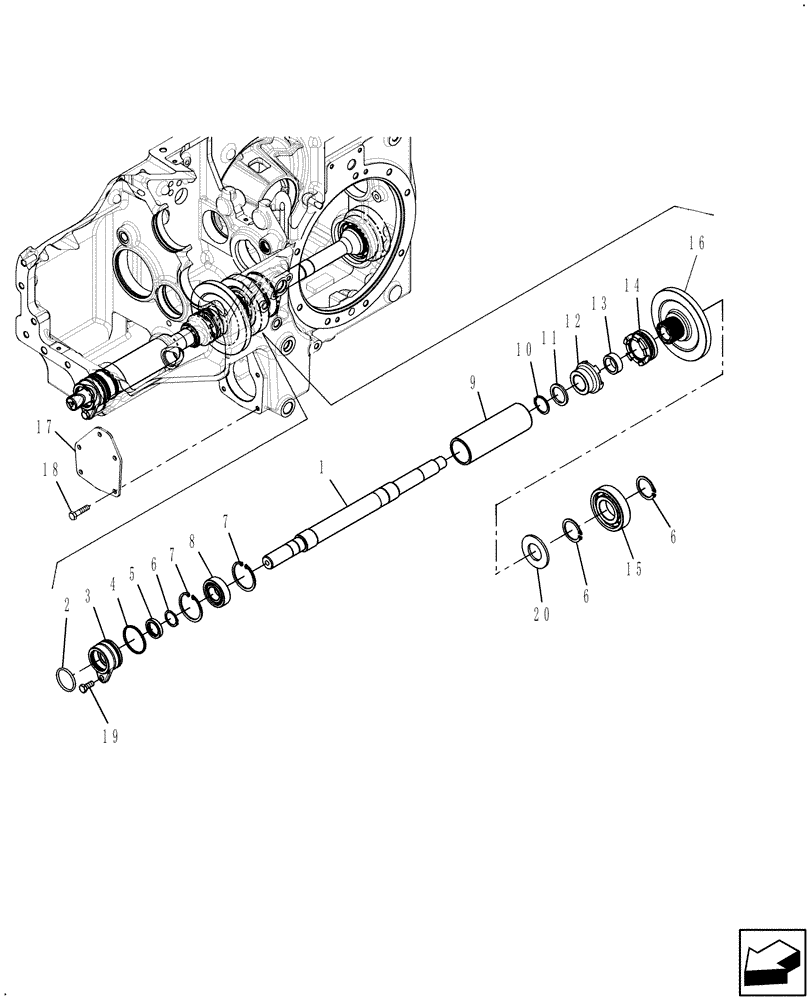

Запчасти Case IH FARMALL 50B (23.304.AJ[02]) - FWD SHAFT W/O MID PTO (23) - FOUR WHEEL DRIVE SYSTEM

1

GRT3484393

SHAFT

FWD Output

1шт.

2

GRT71647

O-RING

Seal 3.53 x 37.69

1шт.

3

GRT3346613

COVER

FWD Output Shaft

1шт.

4

GRT72503

O-RING,2.62mm Thk x 47.29mm ID

Seal, 2.62 x 47.29

1шт.

5

GRT72019

SEAL,25mm ID x 35mm OD x 7mm Thk

25 x 35 x 7

1шт.

6

GRT70486

RING

Retaining

1шт.

7

GRT71187

RING

Retaining

2шт.

8

GRT3484353

BALL BEARING

25 x 52 x 15

1шт.

9

NS

NOT SERVICED

FWD Shaft Guard

1шт.

10

GRT70206

RING

Retaining

1шт.

11

GRT3469573

RING

Washer, FWD Gear Coupling Sleeve

1шт.

12

GRT3469533

SLEEVE

FWD Fixed Coupling

1шт.

13

GRT3469563

SPACER

FWD Gear

1шт.

14

GRT3469523

SLEEVE

Dog Clutch Coupling Sliding

2шт.

15

GRT73510

BALL BEARING

20 x 26 x 16

1шт.

16

GRT3469513

GEAR

FWD

1шт.

17

GRT3484403

COVER

Housing, Lower

1шт.

18

GRT70259

SCREW

M8 x 22

5шт.

19

GRT71149

SCREW

M8 x 20

1шт.

20

GRT3469553

RING

Washer, FWD Gear

1шт.

21

GRT3543333

SHAFT

Output Shaft, FWD

1шт.

22

GRT3543773

SNAP RING

Retainer Ring

2шт.

23

GRT3543043

Spacer

1шт.

24

GRT70232

RING

Retaining

1шт.
