Запчасти Case IH FARMALL 50B (90.160.AF) - CAB FINISHING GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

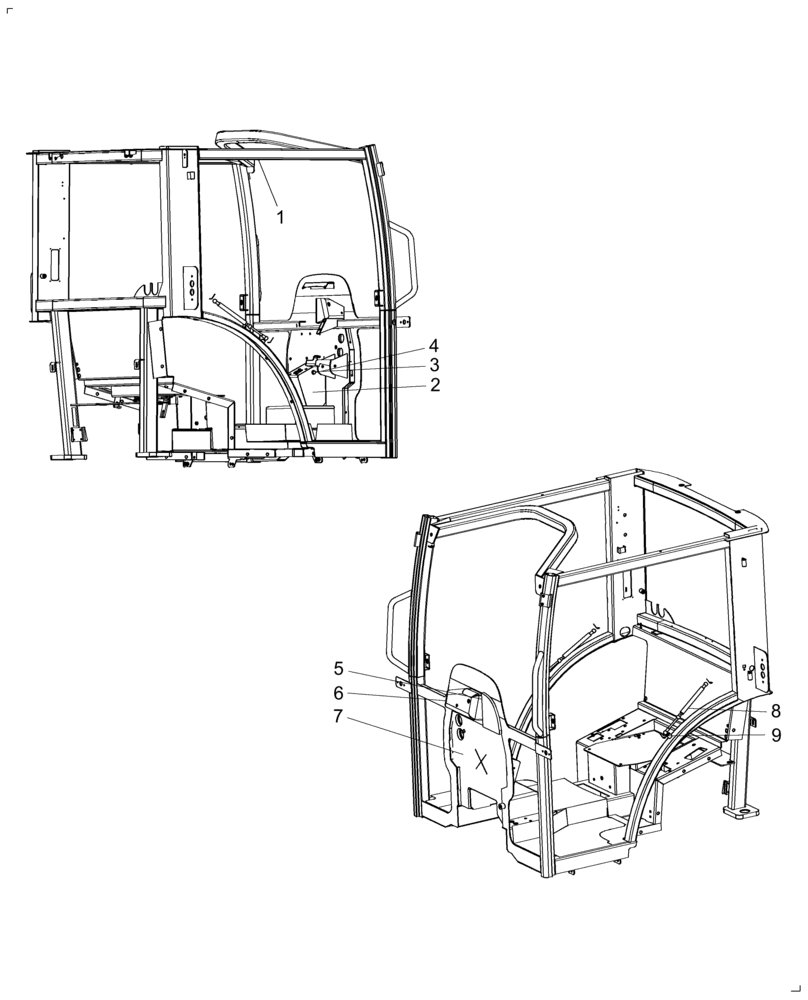

Схема запчастей Case IH FARMALL 50B - (90.160.AF) - CAB FINISHING GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
6
8
2
9
1
7
3

Артикул

Название

Примечание

Количество

1

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

2

84139446

COVER PLATE

Plate, Steering Access Cover

1шт.

3

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

5

87520992

ELECTRIC INSULATION

Firewall

1шт.

6

87740695

FOAM INSULATION

Wiper Motor

1шт.

7

84153764

ELECTRIC INSULATION

Firewall Blanket

1шт.

8

84320293

GAS STRUT

2шт.

9

86999310

CLIP

4шт.

Выбрано товаров: 9
