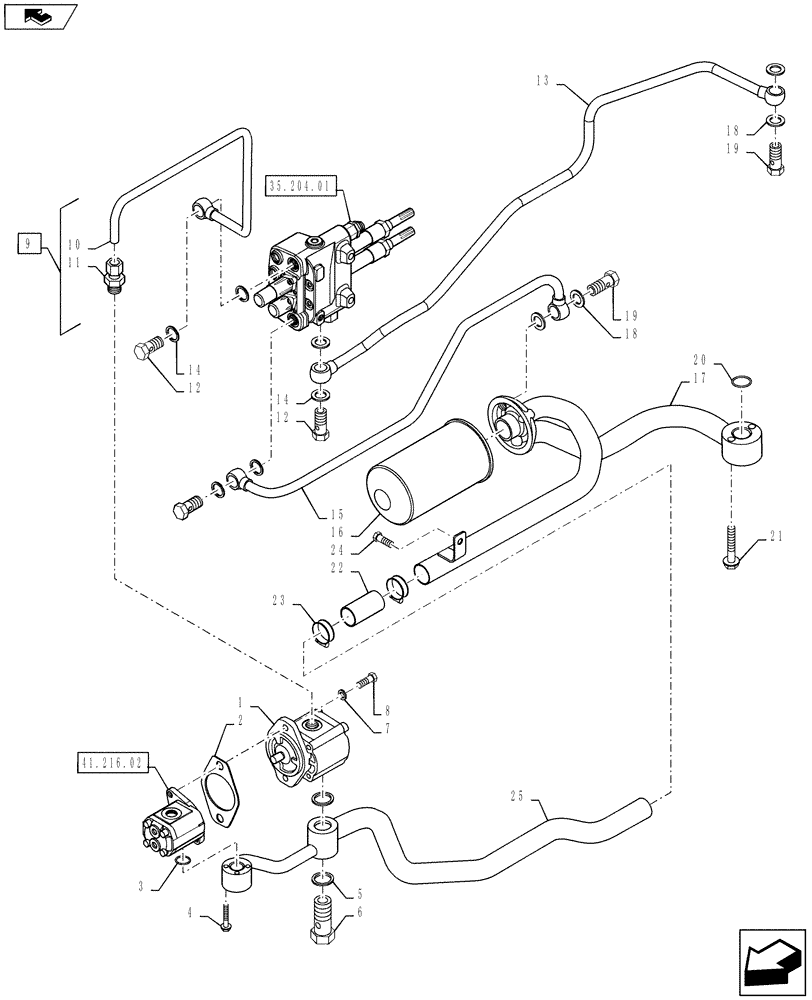

Запчасти Case IH FARMALL 50B (35.204.02) - HYDRAULIC LINES, FILTER & SUCTION FILTER W/O AUXILIARY - 16X16, MECHANICAL (35) - HYDRAULIC SYSTEMS

1

MT40007564

HYDRAULIC PUMP,12 CC

Main, 12.CC/REVxC.W

1шт.

2

MT40006914

GASKET,83mm ID x .8mm Thk

Pump, I.D 83 x 0.8T

1шт.

3

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

4

MT40028916

BOLT,Hex, M6 x 1.0 x 45mm

3шт.

5

MT40012103

COPPER WASHER,26.7mm ID x 36mm OD x 1.5mm Thk

2шт.

6

MT40009817

BOLT

1шт.

7

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

2шт.

8

MT40028885

BOLT

2шт.

9

MT40215860

TUBE

1шт.

10

NSS

NOT SOLD SEPARAT

F/Pressure, Incl 10 - 11

1шт.

11

NSS

NOT SOLD SEPARAT

I.D 15 x 1.5 T

1шт.

12

MT40010250

BOLT,Union 1/2" x 36mm L

3шт.

13

MT40228105

TUBE

1шт.

14

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

6шт.

15

MT40036308

PIPE

Drain

1шт.

16

MT40007638

HYDRAULIC OIL FILTER

Mechanical and Hydrostatic Transmission

1шт.

17

MT40011381

PIPE,47mm OD x 6mm Thk

1шт.

18

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

3шт.

19

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

1шт.

20

MT40029248

O-RING,2.0mm Thk x 29.5mm ID

1шт.

21

MT40028955

BOLT,Hex, M10 x 1.25 x 60mm

2шт.

22

MT40007510

HOSE,47mm OD x 6mm Thk

1шт.

23

MT40012013

CLAMP,27mm - 50mm

2шт.

24

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

1шт.

25

MT40158904

PIPE

1шт.
