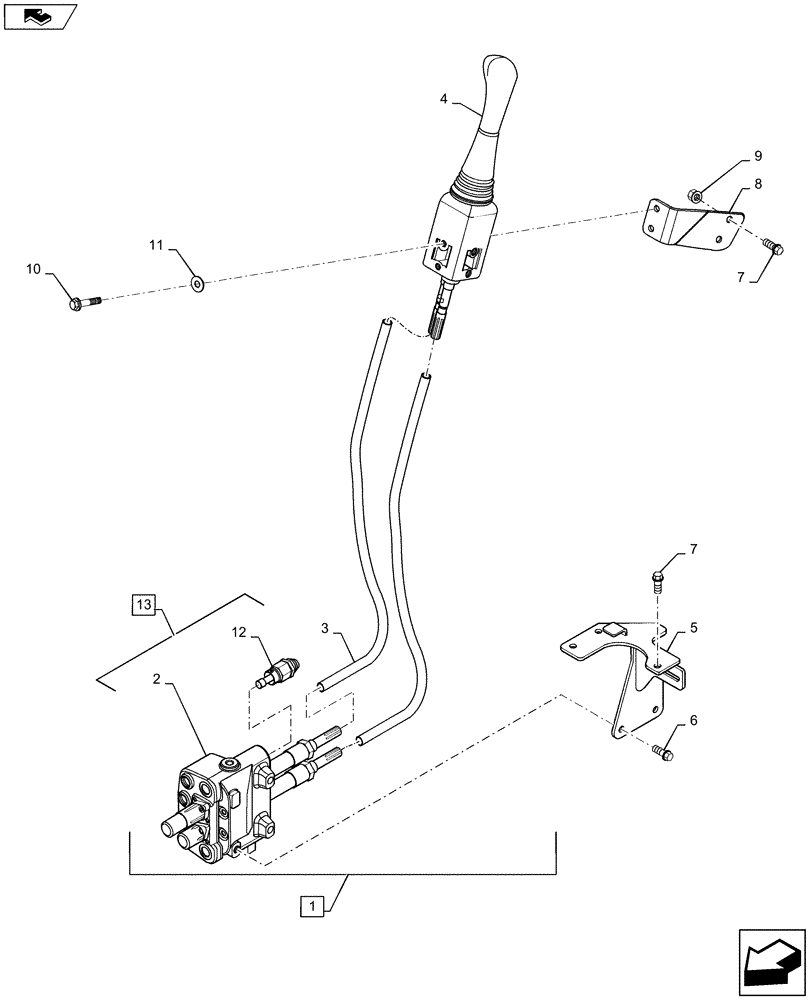

Запчасти Case IH FARMALL 50B (35.204.01) - FRONT OUTLET & LOADER VALVE (35) - HYDRAULIC SYSTEMS

1

MT40236239

VALVE

Includes: 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

Loader W/Relief, Incl In 13

1шт.

3

MT40236241

CABLE

Push/Pull

2шт.

4

MT40236240

LEVER

Lever, Joystick

1шт.

5

MT40030230

BRACKET

Loader Valve, Years: -30-JUN-13

1шт.

5

MT40280806

BRACKET

Loader Valve, Start Year: 01-JUL-13

1шт.

6

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex. W/WS, M8 x 1.25 x 20L

3шт.

7

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex. W/WS, M8 x 1.25 x 25L

5шт.

8

MT40030229

BRACKET

Joystick

1шт.

9

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange M5 x 1.25 x 25

2шт.

10

MT40028934

BOLT,Hex, M8 x 1.25 x 90mm

Hex, W/Washer M8 x 1.25 x 90

2шт.

11

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

O.D26 x I.D8.4 x 2.5T

2шт.

12

MT40266506

VALVE PRESSURE RELIE

170 BAR At 30L/M

1шт.

13

MT40007607

VALVE

Incl 2, 12

1шт.
