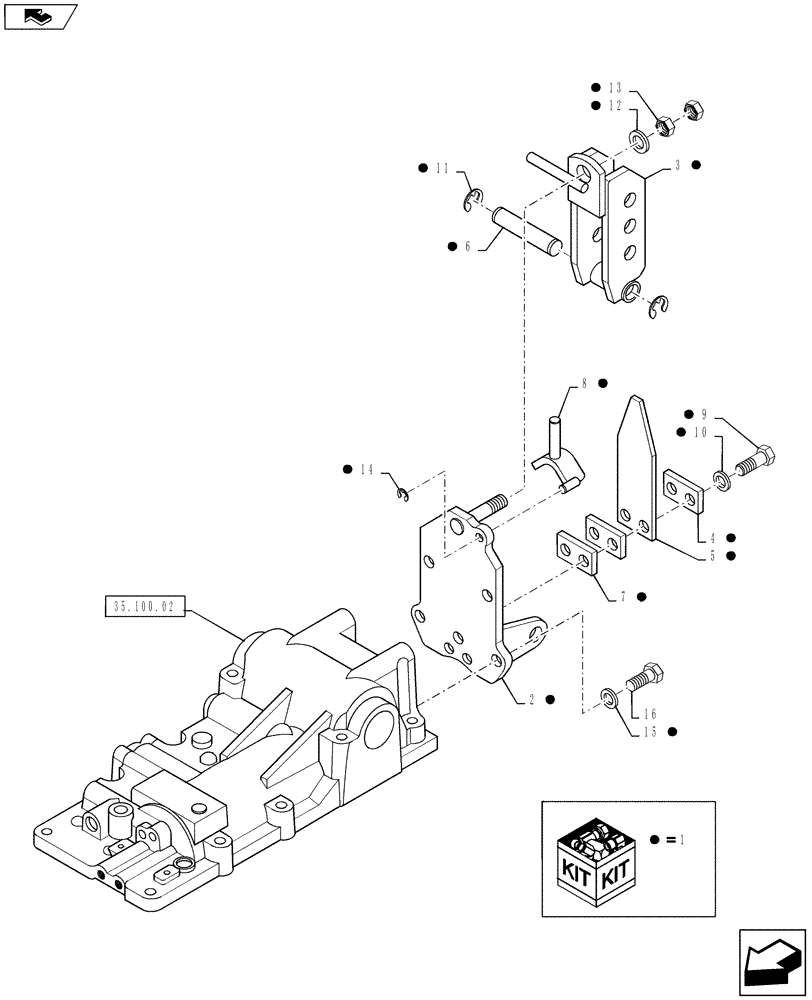

Запчасти Case IH FARMALL 50B (35.100.10) - UPPER LINK BRACKET - W/DRAFT DEALER OPTION KIT (35) - HYDRAULIC SYSTEMS

1

MT40236238

BRACKET

Upper Link

1шт.

2

MT40011578

BRACKET

Upper Link

1шт.

3

MT40011577

BRACKET

Top Link

1шт.

4

MT40011893

PLATE

32 x 6T

2шт.

5

MT40011918

SPRING

Leaf 6T

1шт.

6

MT40009474

PIN,20mm OD x 130mm L

D20 x 103L

1шт.

7

MT40012346

PLATE

8T

1шт.

8

MT40012166

STOP DEVICE

1шт.

9

MT40028895

BOLT,Hex, M14 x 1.5 x 40mm

Hex M14 x 1.5 x 40L

2шт.

10

MT40029083

WASHER,14.2mm ID x 24.7mm OD x 4.2mm Thk

Spring, OD24.7 x ID14.2 x 4.2T

2шт.

11

MT40029322

SNAP RING,M15, Ext

Snap, D15

2шт.

12

MT40028178

WASHER,17mm ID x 30mm OD x 3mm Thk

OD30 x ID17 x 3T

1шт.

13

MT40029052

NUT,Hex, M16 x 1.6

Hex, M16 x 1.5

2шт.

14

MT40029317

RING,M8, Ext

Snap D8

1шт.

15

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring, OD24.5 x ID14.2 x 3.5T

4шт.

16

MT40029395

BOLT,Hex, M14 x 2 x 35mm

Hex, M14 x 2 x 35L

4шт.
