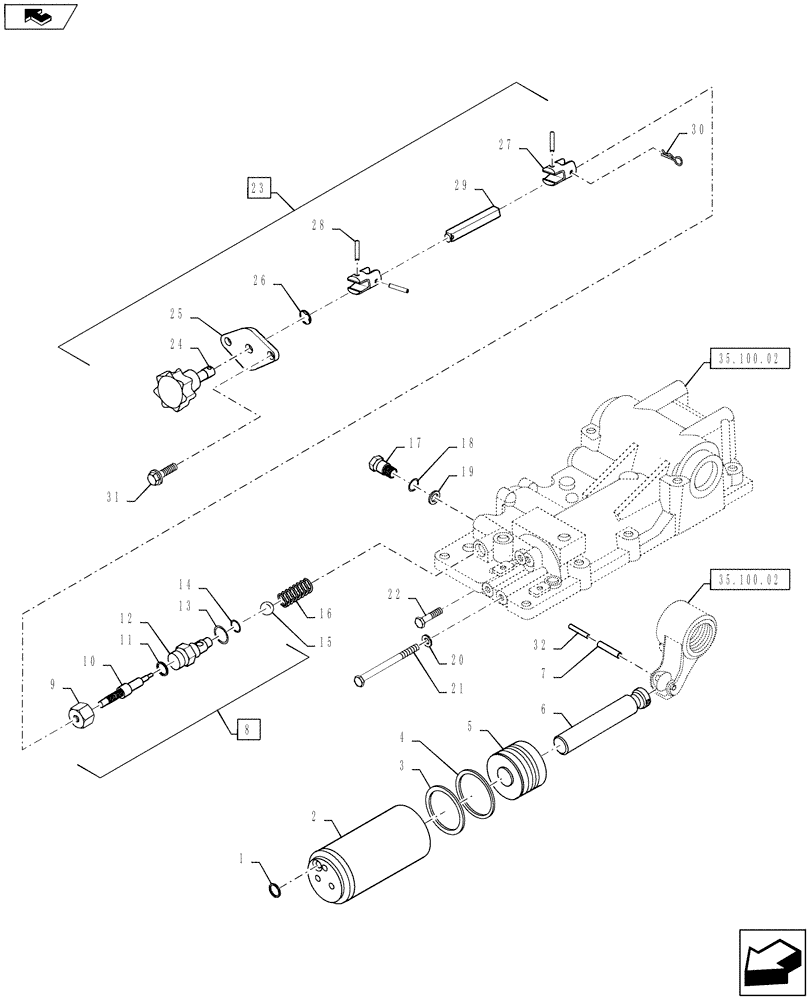

Запчасти Case IH FARMALL 50B (35.100.08) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
MT40029202
O-RING,2.4mm Thk x 13.8mm ID
D13.8 x W2.4
1шт.
2
MT40011329
CYLINDER,80mm ID x 190mm L
Hydraulic ID80 x 190L
1шт.
3
MT40007433
O-RING,5.7mm Thk x 69.6mm ID
Hydraulic Piston OD81 x ID69.6 x 5.7L
2шт.
4
MT40012134
RING,70mm ID x 80mm OD x 3mm Thk
OD80 x ID70 x 3T
2шт.
5
MT40009770
PISTON,80mm OD x 53mmL
Hydraulic OD 80 x 53L
1шт.
6
MT40010017
PISTON ROD,183.5mm L
OD32 x 183.5L
1шт.
7
MT40029181
PIN,8mm OD x 55mm L
Spring D8 x 55L
1шт.
8
MT40008115
VALVE
Regulator
1шт.
9
NSS
NOT SOLD SEPARAT
NUT, OD 22 x 17L - M8 x 1.5
1шт.
10
NSS
NOT SOLD SEPARAT
SCREW, SPEED ADJUSTMENT OD 12 x 89L
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING D5.8 x W1.9
1шт.
12
NSS
NOT SOLD SEPARAT
BODY, REGULATOR VALVE H22 x 51L
1шт.
13
MT40029202
O-RING,2.4mm Thk x 13.8mm ID
D13.8 x W2.4
1шт.
14
MT40029195
O-RING,1.9mm Thk x 9.8mm ID
D9.8 x W1.9
1шт.
15
MT40010340
BALL
Steel
1шт.
16
MT40012356
SPRING,8.6mm OD x 31.5mm L
Locking Valve D1.4 x D8.6 x 31.5L
1шт.
17
MT40008161
VALVE
Safety
1шт.
18
MT40029206
O-RING,2.40mm Thk x 17.80mm ID
D17.8 x W2.4
1шт.
19
MT40012093
SEAL,10.5mm ID x 18mm OD x 1.0 Thk
Plug OD18 x ID10.5 x 1.0T
1шт.
20
MT40029549
WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk
Spring OD18.4 x ID10.2 x 2.5T
2шт.
21
MT40029485
BOLT,Hex, M10 x 1.25 x 120mm
Hex M10 x 1.25 x 120L
2шт.
22
MT40028952
BOLT,Hex, M10 x 1.25 x 45mm
Hex W/Washer M10 x 1.25 x 45L
1шт.
23
MT40008136
KNOB
D/Speed Includes: Ref. 24-29
1шт.
24
NS
NOT SERVICED
Fuel OD19 x 62.5L
1шт.
25
NS
NOT SERVICED
Knob
1шт.
26
NS
NOT SERVICED
1шт.
27
NS
NOT SERVICED
CONNECTION END OD 18 x I.D. 8.2 x 28.5L
2шт.
28
NS
NOT SERVICED
Spring D3 x 20L
3шт.
29
NS
NOT SERVICED
CONNECTOR H8 X 70l
1шт.
30
MT40029135
PIN,M16
Snap
1шт.
31
MT40028966
BOLT,Hex, M6 x 1 x 20mm
Hex W/Washer M6 x 1 x 20L
2шт.
32
MT40029166
PIN,5mm OD x 55mm L
Spring D5 x 55L
1шт.
Выбрано товаров: 32
