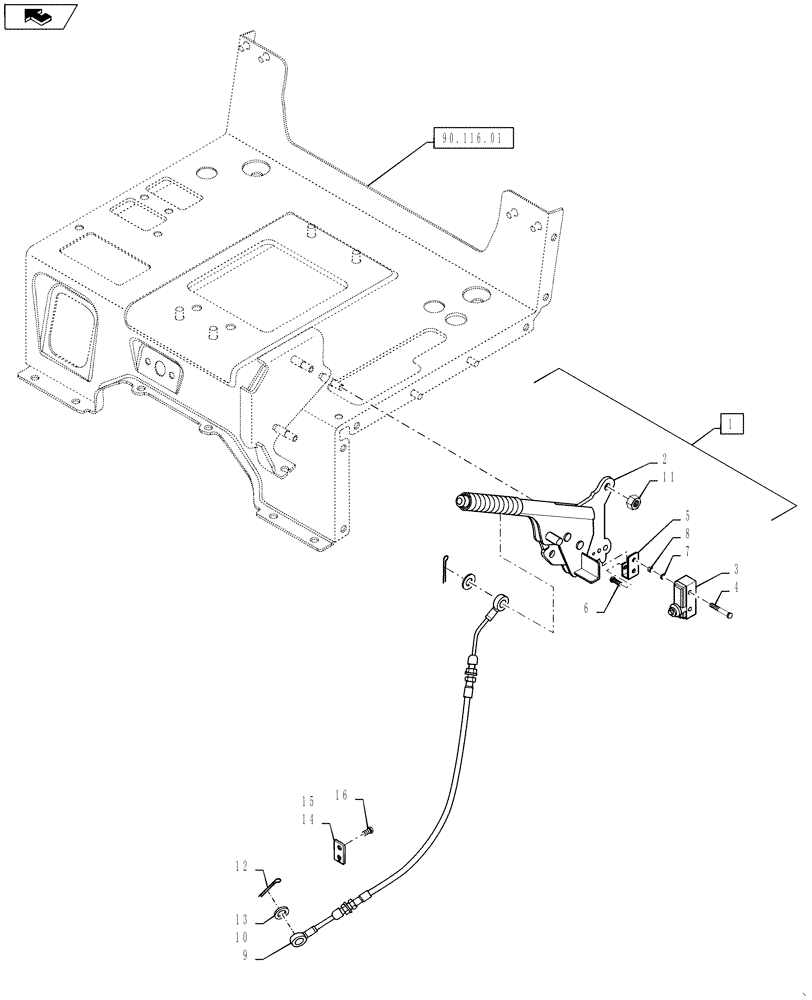

Запчасти Case IH FARMALL 50B (33.120.04) - PARKING BRAKE LEVER (33) - BRAKES & CONTROLS

1

MT40234578

PARKING BRAKE

Includes: Ref. 2-8

1шт.

2

MT40234580

PARKING BRAKE

1шт.

3

MT40007150

MFD SWITCH,125VAC/12A

Neutral

1шт.

4

MT40028709

SCREW,M4 x 0.7 x 30mm

M40 x 0.7 x 30L

2шт.

5

MT40234581

BRACKET

Brake Switch

1шт.

6

MT40072838

SCREW

M5 x 0.8 x 10L

2шт.

7

MT40029564

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

OD8 x ID4.3 x 0.8T

2шт.

8

MT40073337

NUT,M4 x 0.7

Hex M4 x 0.7

2шт.

9

MT40007878

CABLE

Parking Brake 1190.0 OL, 16x16

1шт.

10

MT40275401

CABLE

Parking Brake 711.0 OL, HST

1шт.

11

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange, M8 x 1.25

3шт.

12

MT40029121

PIN,25mm OD x 20mm L

Split D25 x 20L

2шт.

13

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

Plain, OD21 x ID10.5 x 2T

2шт.

14

MT40012332

BRACKET,4.5mm Thk

Parking Brake Cable 4.5T, 16x16

1шт.

15

MT40011915

BRACKET,6mm Thk

Parking Brake Cable 6.0T, HST

1шт.

16

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, M8 x 1.25 x 20L

1шт.
