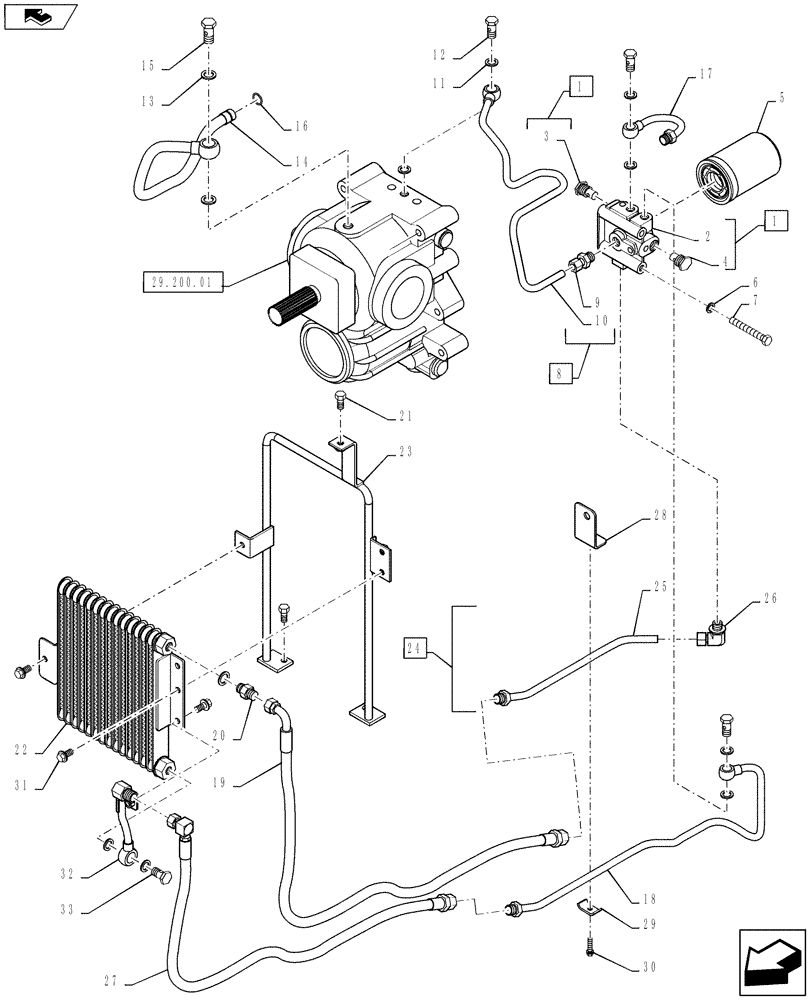

Запчасти Case IH FARMALL 50B (29.204.01) - COOLER - HST (29) - HYDROSTATIC DRIVE

1

MT40007999

FLANGE

Assembly, Filter

1шт.

2

MT40008928

FLANGE

Filter

1шт.

3

MT40007884

VALVE,CHECK, 4.2 BAR

Check, 4.2BAR

1шт.

4

MT40007882

VALVE,CHECK, 2.0 BAR

Check, 2.0BAR

1шт.

5

MT40007563

FILTER

Hydraulic, 10

1шт.

6

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring OD18.4 x ID10.2 x 2.5T

2шт.

7

MT40029437

BOLT,M10 x 1.5 x 120mm

Hex M10 x 1.5 x 120L

2шт.

8

MT40007998

PIPE

HST IN 28cc

1шт.

9

MT40009977

JOINT,12mm OD x 1/2"

OD12 x PF1/2

1шт.

10

NSS

NOT SOLD SEPARAT

HST IN, OD12 x 1.0T 28cc

1шт.

40011084

1шт.

11

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded, OD16.8 x 1.5T

7шт.

12

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

Union, OD22 x PF3/8

3шт.

13

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

Bonded, OD21.2 x 1.5T

2шт.

14

MT40011559

PIPE,15mm OD x 1.5mm Thk

HST Out, OD15 x 1.5T

1шт.

15

MT40010250

BOLT,Union 1/2" x 36mm L

Union, PF1/2 x 36L

1шт.

16

MT40029241

O-RING,1.5 Thk x 15.5mm ID

D15.5 x W1.5

1шт.

17

MT40011543

HYD CONNECTOR

Union, Hose, OD12 x 1.0T

1шт.

18

MT40011367

PIPE

Cooler Out, OD12 x 1.0T

1шт.

19

MT40234786

HOSE

Cooler IN

1шт.

20

MT40009818

HYD CONNECTOR,M16 x 1.50 x 3/8"

Union, Hose, PF3/8-M16 x 1.5

1шт.

21

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

Hex W/Washer, M8 x P1.25 x 20L

3шт.

22

MT40007704

CORE-OIL COOLER

Oil Cooler

1шт.

23

MT40226186

SUPPORT

Cooler

1шт.

24

MT40008118

PIPE

Cooler IN Includes: Ref. 25-26

1шт.

25

NSS

NOT SOLD SEPARAT

PIPE, Cooler IN, OD12 x 1.0T

1шт.

40012073

1шт.

26

MT40008156

ELBOW

Assembly, 21KG/CM^2

1шт.

27

MT40228922

HOSE

Cooler Out

1шт.

28

MT40011862

BRACKET

Oil Cooler 3.0T

1шт.

29

MT40012306

CLAMP,2.3mm Thk

Pipe, 2.3T

1шт.

30

MT40028968

BOLT,Hex, M6 x 1 x 30mm

Hex W/Washer, M6 x P1 x 30L

1шт.

31

MT40028970

BOLT,Hex, M8 x 1.25 x 16mm

Hex W/Washer, M8 x 1.25 x 16L

3шт.

32

MT40235009

TUBE

Pipe

1шт.

33

MT40214654

BOLT

Union

1шт.
