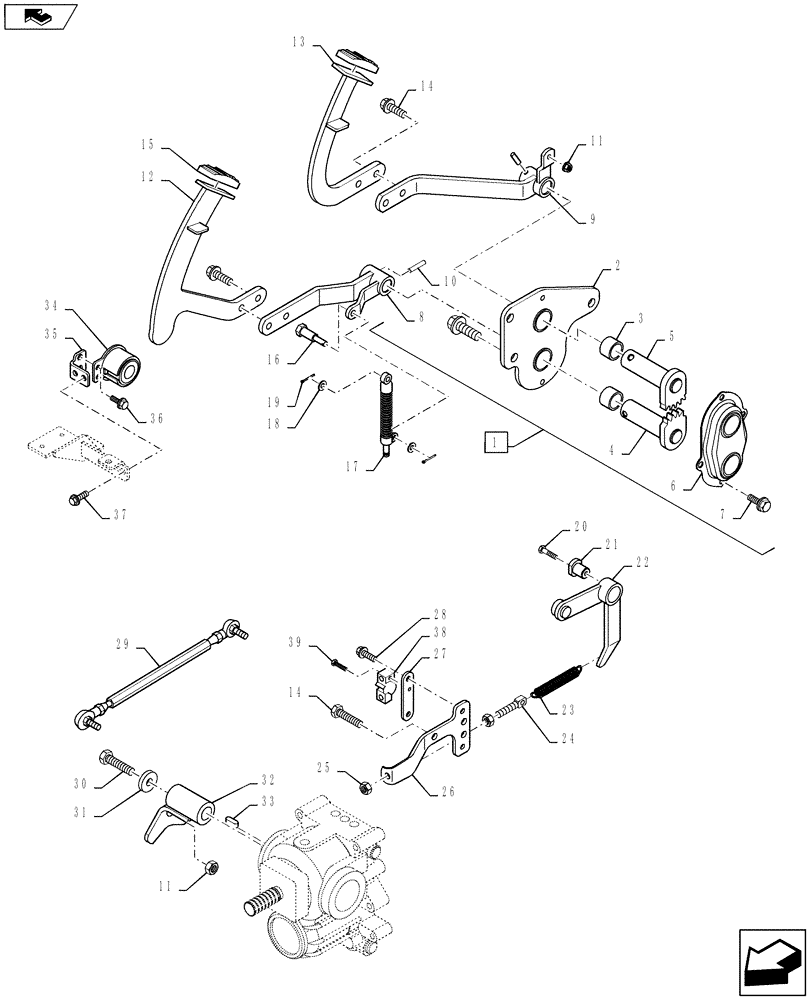

Запчасти Case IH FARMALL 50B (29.200.04) - HST CONTROL & PEDALS (29) - HYDROSTATIC DRIVE

1

MT40013017

SHAFT

CONTROLLER, HST Includes: Ref. 2-10

1шт.

2

MT40011440

PLATE

Base

1шт.

3

MT40012935

BUSHING

#76

2шт.

4

MT40012477

SHAFT

A

1шт.

5

MT40012478

SHAFT

B

1шт.

6

MT40008311

COVER,1mm Thk

Dust

1шт.

7

MT40028909

BOLT,Hex, M6 x 1 x 12mm

Hex, M6 x 1 x 12L

2шт.

8

MT40011619

ARM

Pedal A

1шт.

9

MT40011441

ARM

Pedal B

1шт.

10

MT40029173

PIN,6mm OD x 36mm L

Spring

2шт.

11

MT40027836

NUT

Lock

2шт.

12

MT40011062

PEDAL

Forward, Serial Range: -2105012845

1шт.

12

MT40274941

PEDAL

Forward, Start Serial: 2105012846

1шт.

13

MT40011138

PEDAL

Reverse, Serial Range: -2105013097

1шт.

13

MT40275778

PEDAL

Reverse, Start Serial: 2105013109

1шт.

14

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

M10 x 1.25 x 25L

8шт.

15

MT40232475

RUBBER PEDAL PAD

Pedal

2шт.

16

MT40012784

PIN,M10 x 1.25

M10 x 1.25

1шт.

17

MT40007686

DAMPER

1шт.

18

MT40028157

WASHER,8.40mm ID x 15.50mm OD x 1.60mm Thk

Plain, OD15.5 x ID8.4 x 1.6T

2шт.

19

MT40029119

PIN,20mm OD x 20mm L

2шт.

20

MT40028954

BOLT,M10 x 1.25 x 55mm

Hex, W/Washer M10 x 1.25 x 55L

1шт.

21

MT40009880

SHAFT,25.5mm L

Control, 25.5L

1шт.

22

MT40013018

ARM

Sub-Neutral

1шт.

23

MT40012894

SPRING,2.9mm ID x 22mm OD x 110mm L

1шт.

24

MT40012133

BOLT,8mm OD

Adjustable

1шт.

25

MT40029040

NUT,Hex, M8 x 1.25

Hex, Small M8 x 1.25

2шт.

26

MT40011300

BRACKET,4.5mm Thk

Spring 4.5T

1шт.

27

MT40009454

PLATE,4.5mm Thk

4.5T

1шт.

28

MT40028909

BOLT,Hex, M6 x 1 x 12mm

Hex W/Washer M6 x 1 x 12L

2шт.

29

MT40013043

DRAG LINK

HST

1шт.

30

MT40028956

BOLT,Hex, M10 x 1.25 x 70mm

Hex, W/Washer M10 x 1.25 x 70L

1шт.

31

MT40012971

WASHER

1шт.

32

MT40012240

CAM

HST

1шт.

33

MT40029090

KEY

5 x 5 x 16L

1шт.

34

MT40181852

MAGNET

Cruise

1шт.

35

MT40012241

BRACKET

Magnet

1шт.

36

MT40028924

BOLT,Hex, M8 x 1.25 x 30mm

Hex, W/Washer M8 x 1.25 x 30L

2шт.

37

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

Hex W/Washer M8 x 1.25 x 25L

2шт.

38

MT40007150

MFD SWITCH,125VAC/12A

125VAC/15A

1шт.

39

MT40028710

SCREW,M4 x 0.7 x 35mm

M4 x 0.7 x 35

2шт.

40

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

ID 17.8mm Thickness 2.4mm Used With Plug

2шт.

NOT ILLUSTRATED

1шт.
