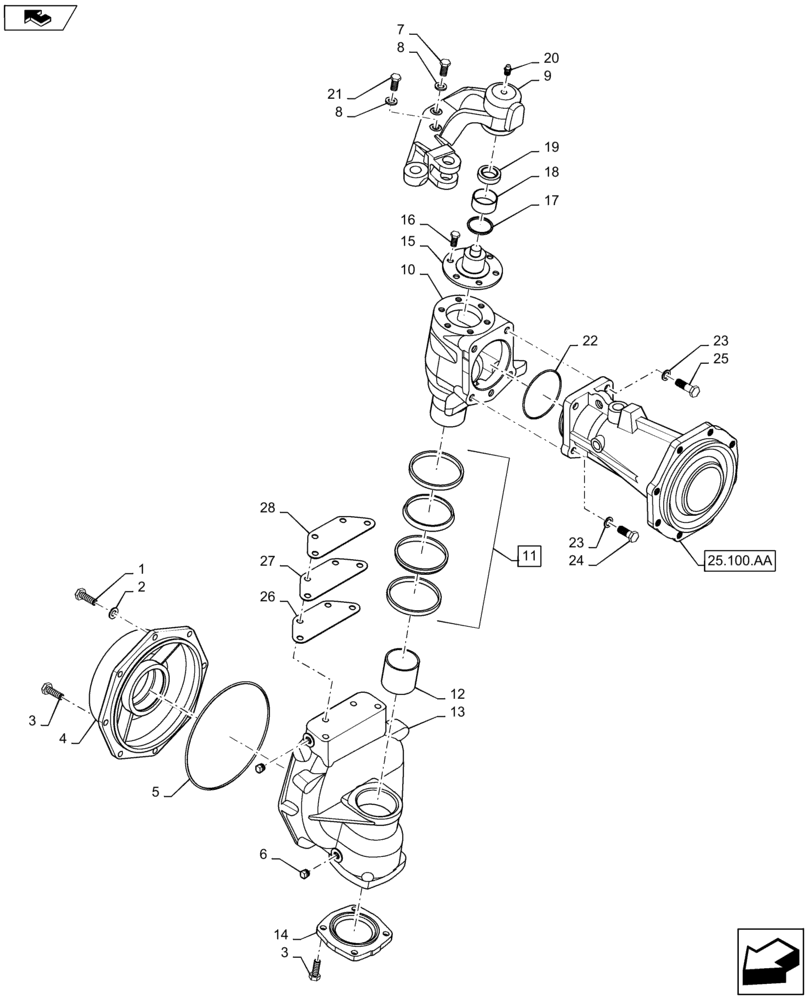

Запчасти Case IH FARMALL 50B (25.108.AS[02]) - RH FRONT AXLE (25) - FRONT AXLE SYSTEM

1

MT40009512

BOLT,Hex, M10 x 1.25 x 35mm

1шт.

2

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring

1шт.

3

MT40028949

BOLT,Hex, M10 x 1.25 x 30mm

11шт.

4

MT40009327

COVER

Front Axle Shaft

1шт.

5

MT40007364

O-RING,231mm OD x 3mm Thk

Rubber

1шт.

6

MT40009626

PLUG,Tpr, 16.66mm OD x 21mm L

2шт.

7

MT40029381

BOLT,Hex, M12 x 1.75 x 30mm

2шт.

8

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring

4шт.

9

MT40008947

ARM

LH

1шт.

10

MT40009021

CASE

King Pin, Serial Range: -2103015061

1шт.

10

MT40304945

HOUSING

King Pin Case, Start Serial: 2103015062

1шт.

11

MT40007918

SEAL

1шт.

12

MT40007901

BUSHING,60mm ID x 65mm OD x 30mm

1шт.

13

MT40008939

CASE

Gear, LH

2шт.

14

MT40036079

COVER

W/Bearing Case

1шт.

15

MT40009964

HOLDER,105mm OD x 62.50mm L

Arm, OD105 x 62.5L

1шт.

16

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

6шт.

17

MT40012856

SEAL

Dust

1шт.

18

MT40012936

BUSHING

#81

1шт.

19

MT40007983

TAPERED BEARING

1шт.

20

MT40009516

NIPPLE,M10 x 1/8"

Grease

1шт.

21

MT40009921

BOLT,M12 x 1.75 x 35mm

Reamer

2шт.

22

MT40029230

O-RING

D89.4 x W3.1

1шт.

23

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring

5шт.

24

MT40029398

BOLT

Hex, M14 x 2P x 40L

3шт.

25

MT40009536

BOLT

Reamer, M14 x 2 x 50L

2шт.

26

MT40012502

SHIM,0.15mm Thk

1шт.

27

MT40012667

SHIM,0.30mm Thk

1шт.

28

MT40012668

SHIM,0.40mm Thk

1шт.

29

MT40316062

SERVICE KIT

King Pin

1шт.

If Requesting this Kit Please Refer to ASIST: "Troubleshoot loose bolts on the front axle kingpin case"

1шт.
