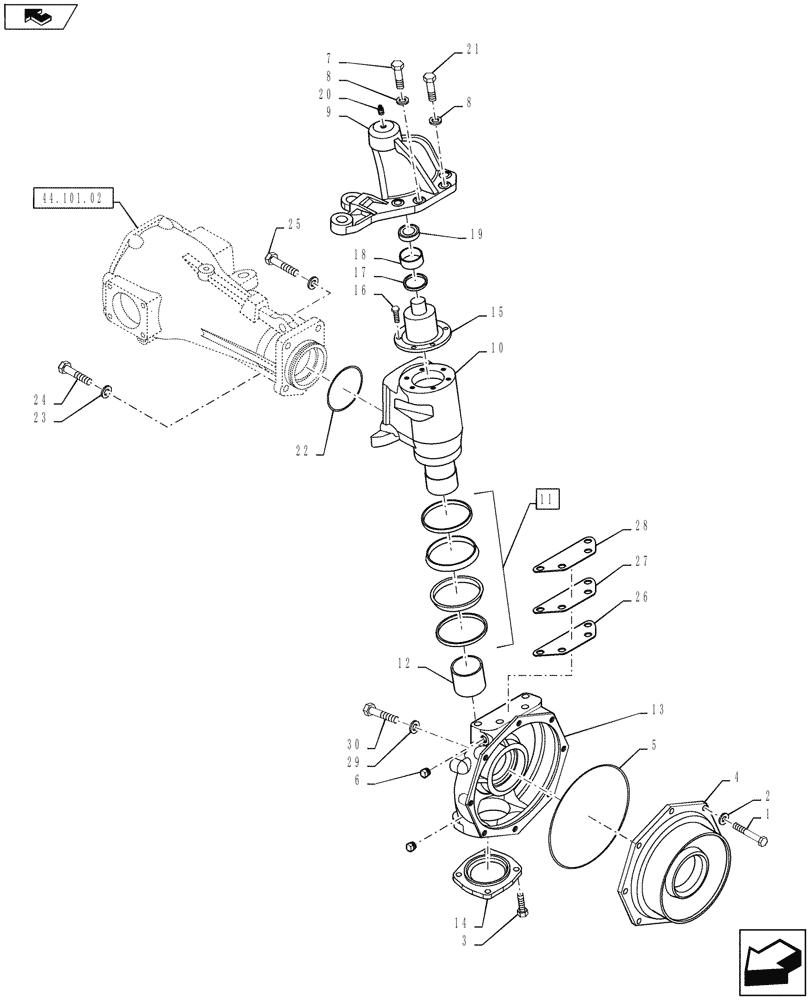

Запчасти Case IH FARMALL 50B (25.108.AS[01]) - LH FRONT AXLE (25) - FRONT AXLE SYSTEM

1

MT40009512

BOLT,Hex, M10 x 1.25 x 35mm

Hex, M10 x 1.25 x 35.0L

1шт.

2

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring, OD18.4 x ID10.2 x 2.5T

1шт.

3

MT40028949

BOLT,Hex, M10 x 1.25 x 30mm

Hex, W/Washer, M10 x P1.25 x 30L

11шт.

4

MT40009327

COVER

Front Axle Shaft

1шт.

5

MT40007364

O-RING,231mm OD x 3mm Thk

Rubber, D3 x OD231.0

1шт.

6

MT40009626

PLUG,Tpr, 16.66mm OD x 21mm L

Taper, OD16.662 x 21.0L

2шт.

7

MT40029381

BOLT,Hex, M12 x 1.75 x 30mm

Hex, M12 x 1.75 x 30L

2шт.

8

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring, OD21.5 x ID12.2 x 3T

4шт.

9

MT40008948

ARM

LH

1шт.

10

MT40009021

CASE

King Pin

1шт.

11

MT40007918

SEAL

1шт.

12

MT40007901

BUSHING,60mm ID x 65mm OD x 30mm

DU, OD65 x ID60 x 30L

1шт.

13

MT40008939

CASE

Gear LH

2шт.

14

MT40036079

COVER

W/Bearing Case

1шт.

15

MT40009964

HOLDER,105mm OD x 62.50mm L

Arm, OD105 x 62.5L

1шт.

16

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex, W/Washer, M8 x P1.25 x 25L

6шт.

17

MT40012856

SEAL

Dust

1шт.

18

MT40012936

BUSHING

#81

1шт.

19

MT40007983

TAPERED BEARING

Taper

1шт.

20

MT40009516

NIPPLE,M10 x 1/8"

Grease, M10 x PT1/8

1шт.

21

MT40009921

BOLT,M12 x 1.75 x 35mm

Reamer, M12 x 1.75 x 35.0L

2шт.

22

MT40029230

O-RING

D89.4 x W3.1

1шт.

23

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring, OD24.5 x ID14.2 x 3.5T

5шт.

24

MT40029398

BOLT

Hex, M14 x 2P x 40L

3шт.

25

MT40009536

BOLT

Reamer, M14 x 2 x 50L

2шт.

26

MT40012502

SHIM,0.15mm Thk

0.15T

1шт.

27

MT40012667

SHIM,0.30mm Thk

0.3T

1шт.

28

MT40012668

SHIM,0.40mm Thk

0.4T

1шт.

29

MT40028726

NUT,Hex, M12 x 1.75

Hex, M12 x 1.75P

2шт.

30

MT40029381

BOLT,Hex, M12 x 1.75 x 30mm

Hex, M12 x 1.75P x 30L

1шт.

31

MT40316062

SERVICE KIT

1шт.

If Requesting this Kit Please Refer to ASIST: "Troubleshoot loose bolts on the front axle kingpin case"

1шт.
