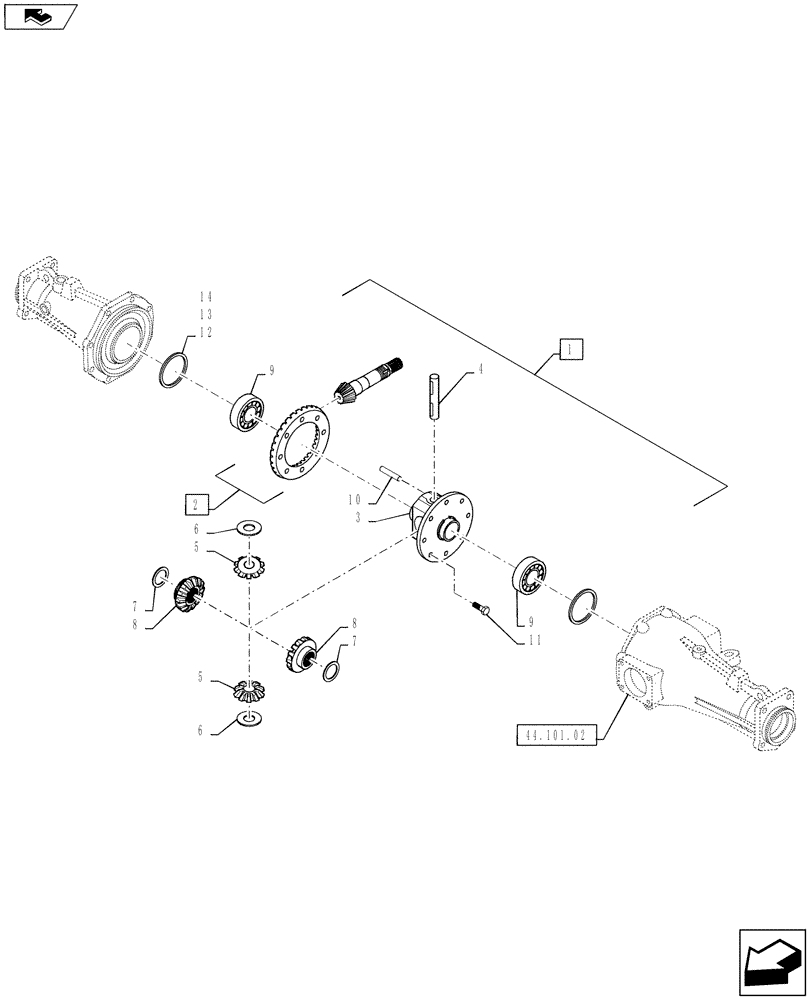

Запчасти Case IH FARMALL 50B (25.102.AD[02]) - FRONT DIFFERENTIAL (USE ON & AFTER 02/28/2009) (25) - FRONT AXLE SYSTEM

1

MT40122879

AXLE DIFFERENTIAL

Front Axle Includes: 2-8 & 10

1шт.

2

MT40036068

PINION

Ring, Gear Set M.

1шт.

3

MT40027840

CASE

Differential

1шт.

4

MT40009997

SHAFT,19.05mm OD x 122.63mm L

Differential, OD19.05 x 122.63L

1шт.

5

MT40182444

GEAR

Pinion Drive

2шт.

6

MT40012423

WASHER,19.45mm ID x 45.07mm OD x 0.80mm Thk

Thrust, OD45.07 x ID19.45 x 0.8L

2шт.

7

MT40012426

WASHER,41.47mm ID x 71.44mm OD x 0.8mm Thk

Thrust, OD71.44 x ID41.47 x 0.8L

2шт.

8

MT40182443

GEAR

Differential Side, RH

2шт.

9

MT40012713

BALL BEARING

#62100

2шт.

10

MT40029175

PIN,Spring, M6 x 50mm

Spring, D6 x 50L

1шт.

11

MT40187241

BOLT

M10 x 1.25 x 18

8шт.

12

MT40012427

LINER,73mm ID x 89mm OD x 0.1mm Thk

OD89.0 x ID73.0 x 0.07L

1шт.

13

MT40012428

LINER,73mm ID x 89mm OD x 0.2mm Thk

OD89.0 x ID73.0 x 0.2L

1шт.

14

MT40012429

LINER,73mm ID x 89 mm OD x 0.5mm Thk

OD89.0 x ID73.0 x 0.5L

1шт.
