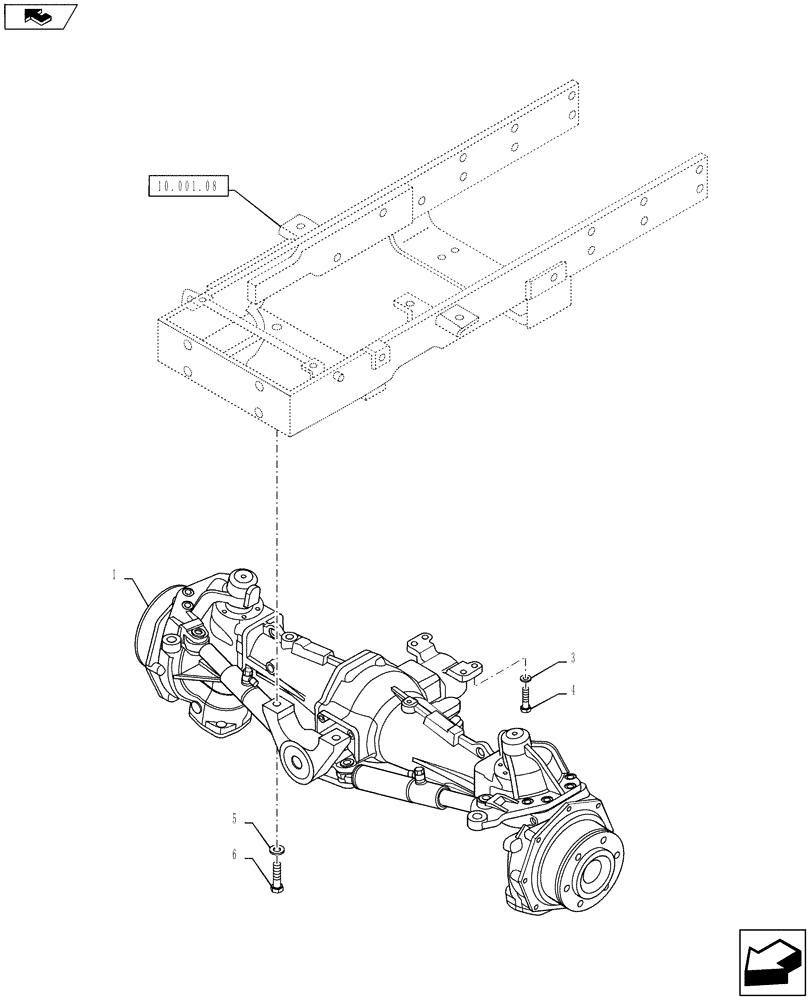

Запчасти Case IH FARMALL 50B (25.100.AA) - FRONT AXLE ASSY (25) - FRONT AXLE SYSTEM

1

MT20021266

FRONT AXLE

1шт.

3

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring, OD21.5 x ID12.2 x 3T

4шт.

4

MT40090251

BOLT,M12 x 1.25 x 45mm

Hex M12 x 1.25 x 45L

4шт.

5

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

Spring, OD28 x ID16.2 x 4T

2шт.

6

MT40029476

BOLT,M16 x 1.5 x 40mm

Hex, M16 x 1.5P x 40L

2шт.

7

MT40313095

SERVICE KIT

Kingpin, Incl 8-12

1шт.

8

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

(Not Shown)

5шт.

9

MT40077564

BOLT,M14 x 1.5 x 40mm

Hex, (Not Shown)

3шт.

10

MT40305363

BOLT,HEX, M14 x 1.5 x 50mm

(Not Shown)

2шт.

11

MT40313092

HOUSING

King Pin, (Not Shown)

1шт.
