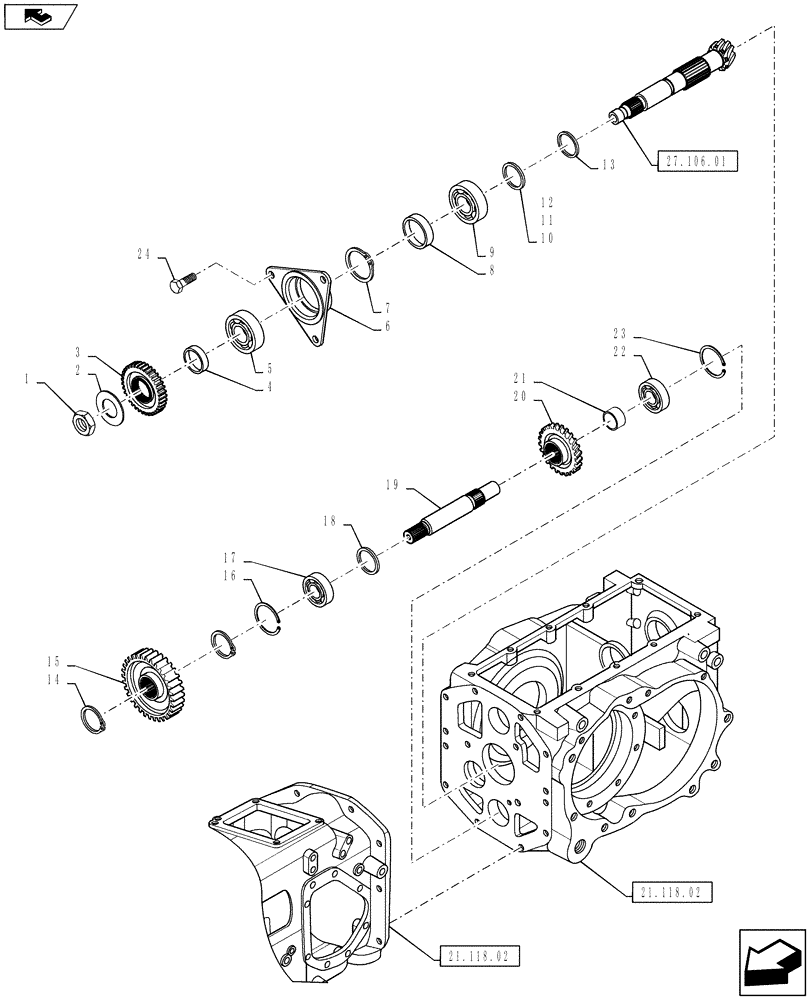

Запчасти Case IH FARMALL 50B (21.148.04) - RANGE GEAR SHAFT - HST (21) - TRANSMISSION

1

MT40009547

NUT,M40, 1.5mm Pitch

Lock, M40 x 1.5

1шт.

2

MT40012127

WASHER,37.50mm ID x 70mm OD x 1.20mm

Lock, OD70 x ID37.5 x 2T

1шт.

3

MT40009807

GEAR,37.50mm ID x 98.10mm OD x 16mm W, 30T

Range Drive, OD98.1 x ID37.5 x 16W (N30)

1шт.

4

MT40010101

SPACER,40mm ID x 55mm OD x 15.50mm

Drive Shaft, OD55 x ID40 x 15.5L

1шт.

5

MT40012983

TAPERED BEARING

Taper

1шт.

6

MT40175296

HOLDER

Pinion Bearing

1шт.

7

MT40029304

SNAP RING,M90

1шт.

8

MT40009796

SPACER

OD90 x ID75 x 5.3L

1шт.

9

MT40012984

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm L

1шт.

10

MT40012828

LINER

OD51 x ID41 x 0.15T

1шт.

11

MT40012829

LINER

OD51 x ID41 x 0.2T

1шт.

12

MT40012947

LINER

OD51 x ID41 x 0.5T

1шт.

13

MT40009724

WASHER

Thrust Rear Pinion, OD56.5 x ID40.2 x 1.2T

1шт.

14

MT40029275

SNAP RING,M35

D35

2шт.

15

MT40010132

GEAR

4WD Drive, OD92.3 x ID32.5 x 15W (N31)

1шт.

16

MT40029301

SNAP RING,M72

D72

1шт.

17

MT40012709

BALL BEARING

#62070

1шт.

18

MT40009709

WASHER,35mm ID x 48mm OD x 2mm

OD 48 X ID 35 x 2L

1шт.

19

MT40009105

SHAFT,38mm OD x 346.5mm L

SHAFT, 4WD Input O.D. 38 x 346.5L

1шт.

20

MT40009806

GEAR,32.50mm ID x 98.10mm OD x 16mm W, 30T

Range Drive, OD98.1 x ID32.5 x 16W (N30)

1шт.

21

MT40010046

SPACER,30mm ID x 40mm OD x 22mm

OD40 x ID30 x 22L

1шт.

22

MT40012706

BALL BEARING

#62060

1шт.

23

MT40029299

SNAP RING,M62

D62

1шт.

24

MT40028938

BOLT,Hex, M12 x 1.75 x 30mm

Hex, W/Washer, M12 x P1.75 x 30L

3шт.
