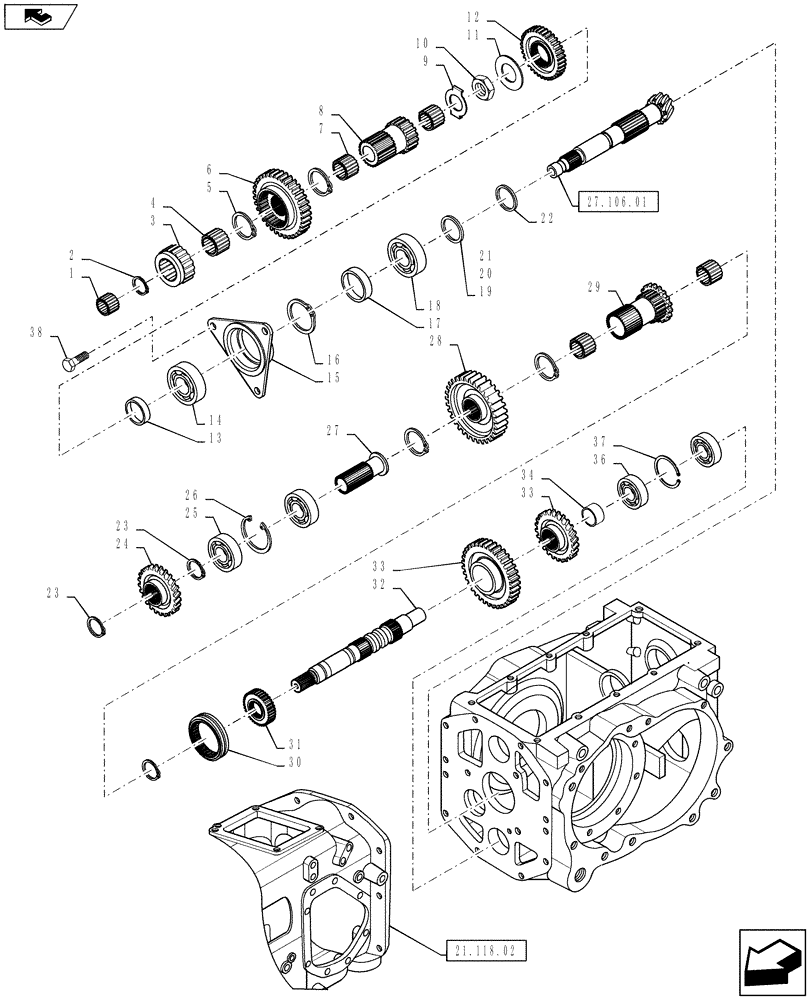

Запчасти Case IH FARMALL 50B (21.148.03) - RANGE GEAR SHAFT - 16X16 (21) - TRANSMISSION

1

MT40007812

NEEDLE BEARING,24mm ID x 31mm OD x 31mm

Needle Roller, OD31 x ID24 x 31L

1шт.

2

MT40029273

SNAP RING,M30

D30

1шт.

3

MT40009137

GEAR,42.50mm ID x 71.60mm OD x 26.50mm

Selector, Range, OD71.6 x ID42.5 x 6.5L

1шт.

4

MT40009707

HUB,27.50mm ID x 47.50mm OD x 32mm

Range(2-4), OD47.5 x ID27.5 x 32L

1шт.

5

MT40029280

SNAP RING,M50

Snap, D50

4шт.

6

MT40009230

GEAR,46.70mm ID x 131.10mm OD x 24mm W

Range Drive, OD131.1 x ID46.7 x 24W (N42)

1шт.

7

MT40007818

NEEDLE BEARING,32mm ID x 37mm OD x 27mm

Needle Roller, OD37 x ID32 x 27L

4шт.

8

MT40009287

GEAR,33.50mm ID x 64.50mm OD x 98mm

Range Drive #2, OD64.5 x ID33.5 x 98L (N19)

1шт.

9

MT40012301

THRUST WASHER,2.30mm Thk

Thrust (2.3T)

1шт.

10

MT40009547

NUT,M40, 1.5mm Pitch

Lock, M40 x 1.5

1шт.

11

MT40012127

WASHER,37.50mm ID x 70mm OD x 1.20mm

Lock, OD70 x ID37.5 x 2T

1шт.

12

MT40009807

GEAR,37.50mm ID x 98.10mm OD x 16mm W, 30T

Range Drive, OD98.1 x ID37.5 x 16W (N30)

1шт.

13

MT40010101

SPACER,40mm ID x 55mm OD x 15.50mm

Drive Shaft, OD55 x ID40 x 15.5L

1шт.

14

MT40012983

TAPERED BEARING

1шт.

15

MT40175296

HOLDER

Pinion Bearing

1шт.

16

MT40029304

SNAP RING,M90

1шт.

17

MT40009796

SPACER

OD90 x ID75 x 5.3L

1шт.

18

MT40012984

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm L

1шт.

19

MT40012828

LINER

OD51 x ID41 x 0.15T

1шт.

20

MT40012829

LINER

OD51 x ID41 x 0.2T

1шт.

21

MT40012947

LINER

OD51 x ID41 x 0.5T

1шт.

22

MT40009724

WASHER

Thrust R/Pinion, OD56.5 x ID40.2 x 1.2T

1шт.

23

MT40029275

SNAP RING,M35

D35

3шт.

24

MT40010132

GEAR

4WD Drive, OD92.3 x ID32.5 x 15W (N31)

1шт.

25

MT40012709

BALL BEARING

#62070

2шт.

26

MT40029301

SNAP RING,M72

D72

1шт.

27

MT40009120

SHAFT,22.50mm ID x 45mm OD x 95.50mm L

2WD Input, OD45 x ID22.5 x 95.5L

1шт.

28

MT40009615

GEAR,46.70mm ID x 137.10mm OD x 27mm, 44T

Range Drive, OD137.1 x ID46.7 x 27W (N44)

1шт.

29

MT40009134

GEAR,67.60mm OD x 116mm L, 19T

Range Drive #1, OD67.6 x 116L (N19)

1шт.

30

MT40009299

SLEEVE,64mm ID x 86mm OD x 23mm

Shift, OD86 x ID64 x 23L

1шт.

31

MT40009755

HUB,32.50mm ID x 68mm OD x 20mm W

Range(1-3), OD68 x ID32.5 x 20W

1шт.

32

MT40009364

SHAFT,38mm OD x 335mm L

Range Counter, OD38 x 335L

1шт.

33

MT40009231

GEAR,38mm ID x 131.20mm OD x 19.50mm W, 43T

Range Drive, OD131.2 x ID38 x 19.5W (N43)

1шт.

34

MT40009806

GEAR,32.50mm ID x 98.10mm OD x 16mm W, 30T

Range Drive, OD98.1 x ID32.5 x 16W (N30)

1шт.

35

MT40010046

SPACER,30mm ID x 40mm OD x 22mm

OD40 x ID30 x 22L

1шт.

36

MT40012706

BALL BEARING

#62060

2шт.

37

MT40029299

SNAP RING,M62

D62

1шт.

38

MT40028938

BOLT,Hex, M12 x 1.75 x 30mm

Hex, W/Washer, M12 x P1.75 x 30L

3шт.
