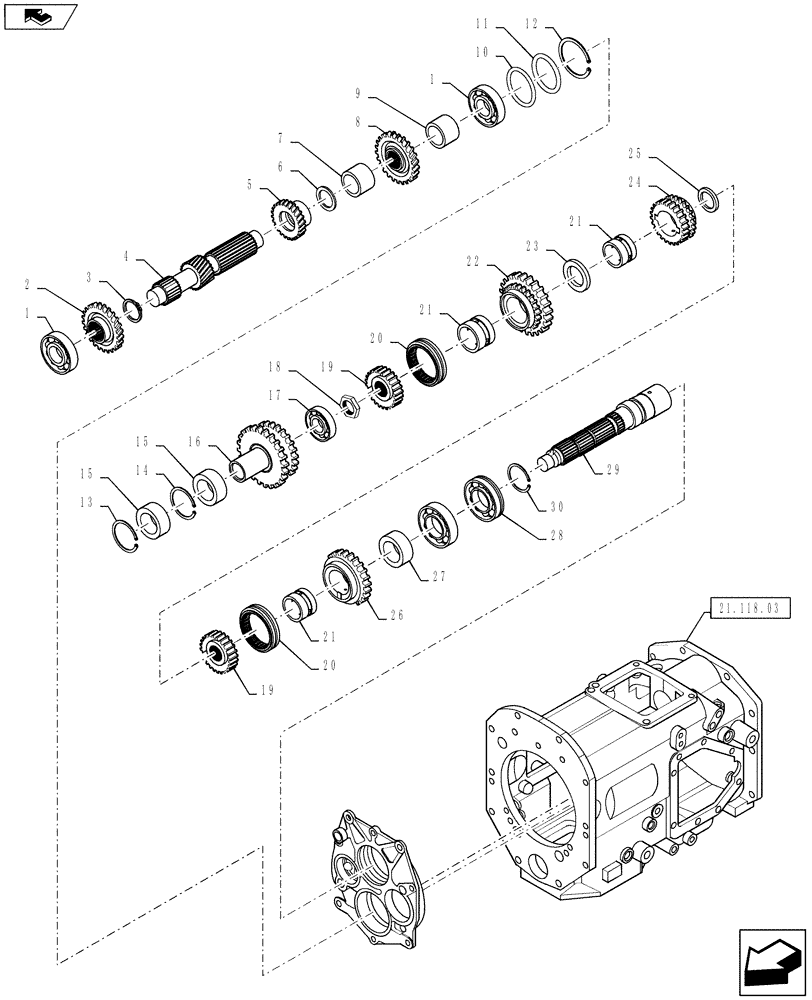

Запчасти Case IH FARMALL 50B (21.148.02) - MAIN GEAR SHAFT - HST (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
MT40012715
BALL BEARING
#63050
2шт.
2
MT40010119
GEAR,29T
Main Shift Drive
1шт.
3
MT40029273
SNAP RING,M30
D30
1шт.
4
MT40009104
SHAFT,37.8mm OD x 210mm L
Range OD 37.8 x 210L
1шт.
5
MT40010107
GEAR,22T
Range Drive OD 61 x ID 30 x 13W
1шт.
6
MT40009692
SPACER,30mm ID x 42mm OD x 3mm L
PTO Shaft OD 42 x ID 30 x 3
1шт.
7
MT40010046
SPACER,30mm ID x 40mm OD x 22mm
OD40 x ID30 x 22L
1шт.
8
MT40009801
GEAR,27.50mm ID x 93.70mm OD x 11mm W, 35T
Main Shift Drive. 4TH, OD93.7 x ID27.5 x 11W (N35)
1шт.
9
MT40220724
SPACER
Main Shift Drive
1шт.
10
MT40012834
LINER,50mm ID x 61mm OD x 0.15mm Thk
OD61 x ID50 x 0.15T
1шт.
11
MT40012835
LINER,50mm ID x 61mm OD x 0.20mm Thk
OD61 x ID50 x 0.2T
1шт.
12
MT40029299
SNAP RING,M62
D62
1шт.
13
MT40029309
SNAP RING,M35
Snap D35
1шт.
14
MT40029301
SNAP RING,M72
D72
1шт.
15
MT40012709
BALL BEARING
#62070
2шт.
16
MT40009163
GEAR,32T
GEAR, Range Input OD87.2 x ID22.5 x 13W
1шт.
17
MT40012714
BALL BEARING
#63040
1шт.
18
MT40009934
NUT,M25 x 1.5 Pitch, 10mm Thk
Lock, M25 x P1.5 x 10L
1шт.
19
MT40009428
HUB,30.69mm ID x 78.62mm OD x 19mm
Shift, OD78.62 x ID30.69 x 19L
2шт.
20
MT40009384
SLEEVE,74.73mm ID x 93mm OD x 19.60mm
Shift, OD93 x ID74.73 x 19.6L
2шт.
21
MT40010047
SLEEVE,32.809mm ID x 40mm OD x 27mm L
Gear, OD40 x ID32.809 x 27L
3шт.
22
MT40009229
GEAR,48T
Range Drive 1st, OD128.4 x ID40 x 22W
1шт.
23
MT40009711
SPACER,33mm ID x 50mm OD x 6mm
OD50 x ID33x6L
1шт.
24
MT40009218
GEAR,39T
Range Drive 2nd, OD105.7 x ID40 x 13W
1шт.
25
MT40220280
SPACER
Main Shift Drive
1шт.
26
MT40009294
GEAR,40mm ID x 79.50mm OD x 11mm W, 27 T
Main Shift Drive, OD79.5 x ID40 x 11W (N27)
1шт.
27
MT40010087
SPACER,33mm ID x 50mm OD x 22mm
Main Shift Drive, OD50 x ID33 x 22L
1шт.
28
MT40012924
BALL BEARING
#62080
2шт.
29
MT40009117
SHAFT,42mm OD x 270mm L
Range Drive OD42 x 270L
1шт.
30
MT40029277
SNAP RING,M40
D40
1шт.
Выбрано товаров: 30
