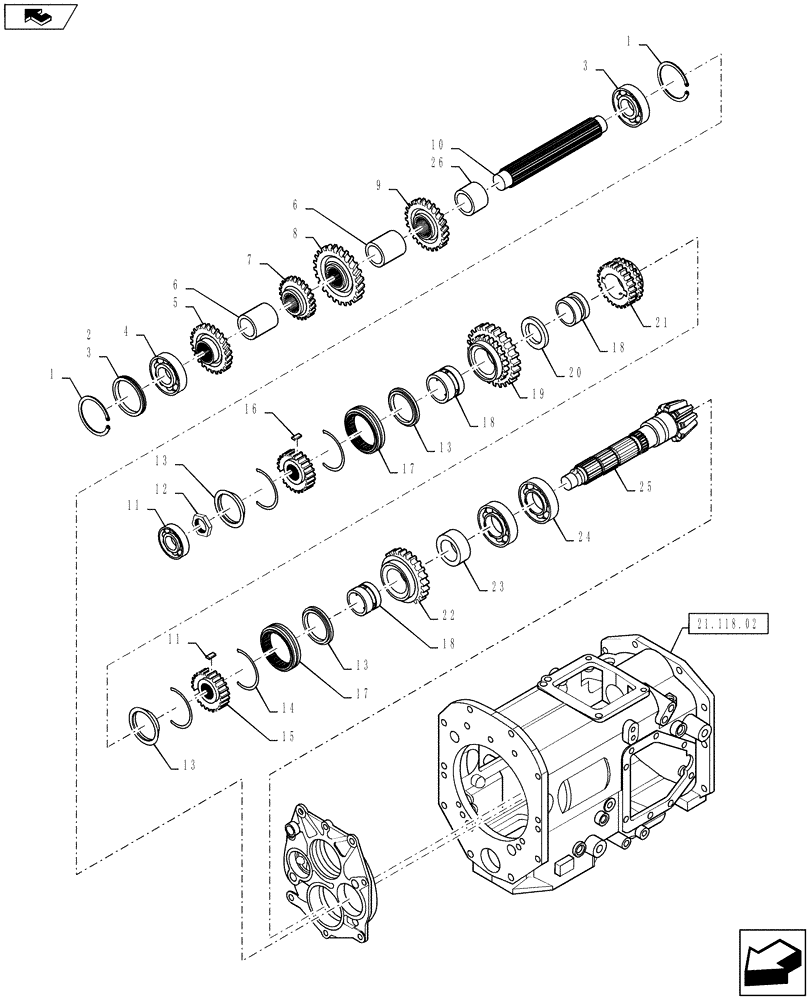

Запчасти Case IH FARMALL 50B (21.148.01) - MAIN GEAR SHAFT - 16X16 (21) - TRANSMISSION

1

MT40029299

SNAP RING,M62

Snap, D62

1шт.

2

MT40012834

LINER,50mm ID x 61mm OD x 0.15mm Thk

OD61 x ID50 x 0.15T

1шт.

3

MT40012835

LINER,50mm ID x 61mm OD x 0.20mm Thk

OD61 x ID50 x 0.2T

1шт.

4

MT40012715

BALL BEARING

#63050

2шт.

5

MT40010117

GEAR,27.50mm ID x 75.60mm OD x 13mm W, 28T

Cntrol Shaft Drive, OD75.6 x ID27.5 x 13W (N28)

1шт.

6

MT40010066

SPACER,30mm ID x 42mm OD x 44.50mm L

OD42 x ID30 x 44.5L

2шт.

7

MT40009754

GEAR,27.50mm ID x 68mm OD x 11mm W, 25T

Drive,1ST, OD68 x ID27.5 x 11W (N25)

1шт.

8

MT40009801

GEAR,27.50mm ID x 93.70mm OD x 11mm W, 35T

Main Shift Drive 4TH, OD93.7 x ID27.5 x 11W (N35)

1шт.

9

MT40009774

GEAR,27.50mm ID x 82mm OD x 11mm W, 30T

Main Shift Drive 3RD, OD82 x ID27.5 x 11W (N31)

1шт.

10

MT40010212

SHAFT,29.75mm OD x 226.50mm L

Main Shift Drive, OD29.75 x 226.5L

1шт.

11

MT40012714

BALL BEARING

#63040

1шт.

12

MT40009934

NUT,M25 x 1.5 Pitch, 10mm Thk

Lock, M25 x P1.5 x 10L

1шт.

13

MT40009141

RING,77.80mm OD x 8.50mm Thk

Synchoronizer, OD77.8 x 8.5L

4шт.

14

MT40012536

SPRING

D73.0 x 1.0T

4шт.

15

MT40009428

HUB,30.69mm ID x 78.62mm OD x 19mm

Shift, OD78.62 x ID30.69 x 19L

2шт.

16

MT40009946

KEY

Piece

6шт.

17

MT40009384

SLEEVE,74.73mm ID x 93mm OD x 19.60mm

Shift, OD93 x ID74.73 x 19.6L

2шт.

18

MT40010047

SLEEVE,32.809mm ID x 40mm OD x 27mm L

Gear, OD40 x ID32.809 x 27L

3шт.

19

MT40009173

GEAR,40mm ID x 97mm OD x 11mm W, 36T

Main Shift Drive 1, OD97 x ID40 x 11W (N36)

1шт.

20

MT40009711

SPACER,33mm ID x 50mm OD x 6mm

OD50 x ID33 x 6L

1шт.

21

MT40009294

GEAR,40mm ID x 79.50mm OD x 11mm W, 27 T

Main Shift Drive 4, OD79.5 x ID40 x 11W (N27)

1шт.

22

MT40009158

GEAR,40mm ID x 84.60mm OD x 11mm W, 31 T

Main Shift Drive 3, OD84.6 x ID40 x 11W (N31)

1шт.

23

MT40010087

SPACER,33mm ID x 50mm OD x 22mm

Main Shift Drive, OD50 x ID33 x 22L

1шт.

24

MT40012925

BALL BEARING

#62082NR

2шт.

25

MT40009129

SHAFT,58.50mm OD x 255.50mm L, W/ Gear

Main Shift Drive, OD58.5 x ID55.5L (N17)

1шт.

26

MT40010046

SPACER,30mm ID x 40mm OD x 22mm

OD40 x ID30 x 22L

1шт.
