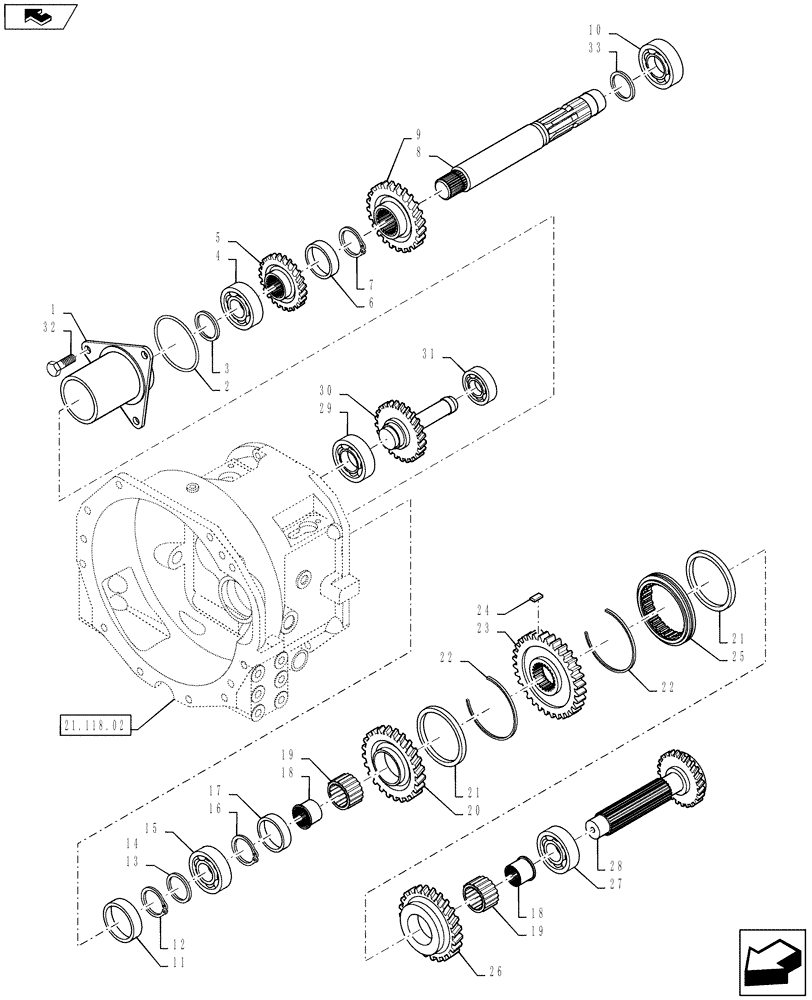

Запчасти Case IH FARMALL 50B (21.145.01) - MAIN SHAFT - 16X16 (21) - TRANSMISSION

1

MT40009840

COVER

Forward/Reverse Drive Shaft

1шт.

2

MT40029228

O-RING,74.40mm Dia x 3.10mm

D74.4 x W3.1

1шт.

3

MT40012920

SEAL

Oil

1шт.

4

MT40012709

BALL BEARING

#62070

1шт.

5

MT40009772

GEAR,37.5mm ID x 81.5mm OD x 12mm W, 29T

Reverse Drive, OD81.5 x ID37.5 x 12W (N29)

1шт.

6

MT40010089

SPACER,40mm ID x 50mm OD x 19mm

Forward/Reverse Drive Shaft, OD50 x ID40 x 19L

1шт.

7

MT40029277

SNAP RING,M40

D40

1шт.

8

MT40009113

SHAFT

Forward/Reverse Drive (I/PTO), OD40 x ID25 x 253.5L

1шт.

9

MT40009962

GEAR,38T

Forward Drive, OD102.5 x ID37.5 x 10W(N38)

1шт.

10

MT40012711

BALL BEARING

#62080

1шт.

11

MT40007474

CAP,72mm OD x 10mm W, Rubber

Rubber, OD72 x 10L

1шт.

12

MT40029301

SNAP RING,M72

Snap, D72

1шт.

13

MT40012836

LINER,56mm ID x 71mm OD x 0.15mm Thk

OD71 x ID56 x 0.15T

1шт.

14

MT40012949

LINER,56mm ID x 71mm OD x 0.20mm Thk

OD71 x ID56 x 0.2T

1шт.

15

MT40012718

BALL BEARING

#63060

1шт.

16

MT40029273

SNAP RING,M30

D30

1шт.

17

MT40010068

SPACER,32.809mm ID x 44mm OD x 9.50mm

Forward/Reverse Drive Shaft, OD44 x ID32.809 x 9.5L

1шт.

18

MT40010338

SLEEVE,30.69mm ID x 50mm OD x 31mm L

Gear,OD50 x ID30.69 x 31L

2шт.

19

MT40009699

NEEDLE BEARING,40mm ID x 45mm OD x 27mm

OD45 x ID40 x 27.0L

2шт.

20

MT40009050

GEAR,37T

Reverse Drive, OD102.3 x ID45 x 11W (N37)

1шт.

21

MT40009156

RING

Synchronizer, OD83.2 x 8.0L

2шт.

22

MT40012135

SPRING,83mm OD x 1.60mm Thk

Synchronizer, OD83.2 x 1.6L

2шт.

23

MT40009380

HUB,30.69mm ID x 87.60mm OD x 21mm

Shift, OD87.6 x ID30.69 x 21L

1шт.

24

MT40009844

STRUT

Synchronizer

3шт.

25

MT40009053

SLEEVE,84mm ID x 103mm OD x 21mm

Shift, OD103 x ID84 x 21L

1шт.

26

MT40009061

GEAR,44T

Forward Drive, OD118.2 x ID45 x 10W (N44)

1шт.

27

MT40012720

BALL BEARING

#63070

1шт.

28

MT40009167

SHAFT,91.1mm OD x 189.3mm L

Forward/Reverse Drive, OD91.1 x 89.3L (N34R)

1шт.

29

MT40012715

BALL BEARING

#63050

1шт.

30

MT40009790

SHAFT,89.30mm OD x 118.50mm L

Reverse Idle, OD89.3 x 118.5L (N32L)

1шт.

31

MT40012703

BALL BEARING

#62050

1шт.

32

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

Hex, W/Washer, M10 x P1.25 x 25L

3шт.

33

MT40007811

SEAL

Oil, OD31 x ID22.8 x 6L

1шт.
