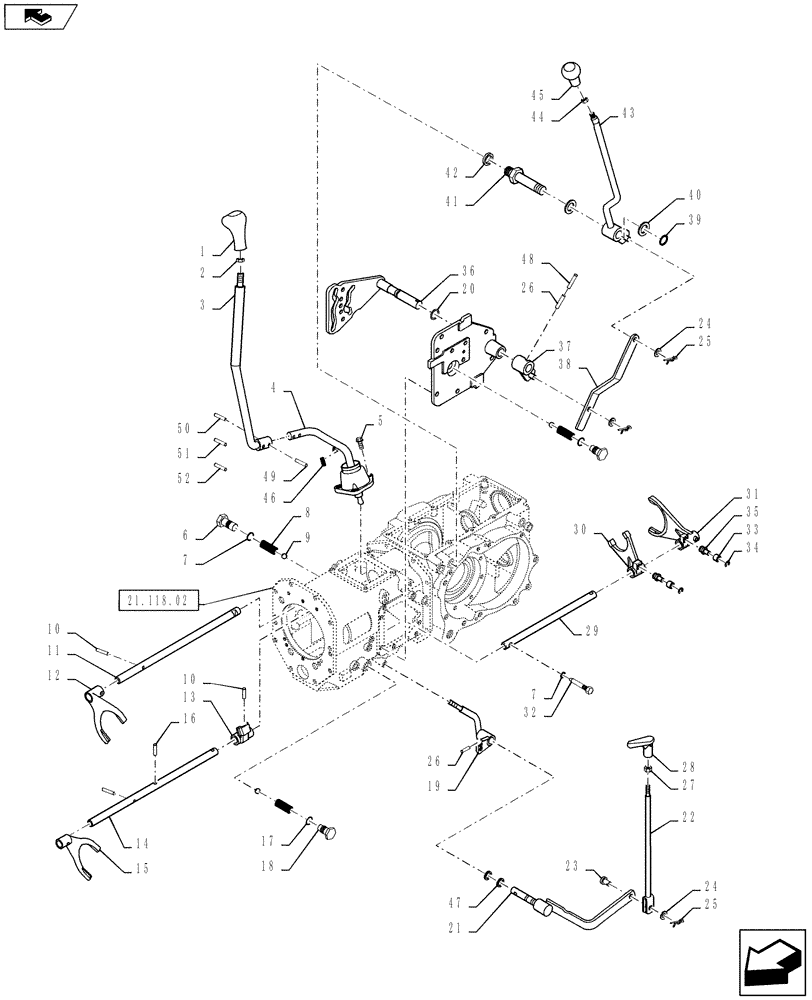

Запчасти Case IH FARMALL 50B (21.130.01) - MAIN SHIFT LEVER, 4WD LEVER & FORK - 16X16 (21) - TRANSMISSION

1

MT40229665

KNOB

Main Shift, Orange, 1st - 2nd - 3rd - N - 4th

1шт.

2

MT40028726

NUT,Hex, M12 x 1.75

Hex, 1 TY, M12 x 1.75P

1шт.

3

MT40011618

LEVER

Main Shift Hand

1шт.

4

MT40013025

LEVER

1шт.

5

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex, W/Washer, M8 x P1.25 x 25L

3шт.

6

MT40009498

BOLT

Rail, H19

2шт.

7

MT40029196

O-RING,2.4mm Thk x 9.8mm ID

D9.8 x W2.4

3шт.

8

MT40011943

SPRING,7.2mm OD x 22mm L

D1.6 x D8.75 x 26.6L

4шт.

9

MT40010339

BALL

Shift Fork

4шт.

10

MT40029167

PIN,6mm OD x 25mm L

Spring, D6 x 25L

5шт.

11

MT40009077

RAIL ASSY.,16mm OD x 405mm L

Main Shift(1-2), OD16 x 420

1шт.

12

MT40010308

FORK

Main Shift(1-2)

1шт.

13

MT40009850

ADAPTER

Main Shift(3-4)

1шт.

14

MT40009078

RAIL ASSY.,16mm OD x 420mm L

Main Shift(3-4)

1шт.

15

MT40010309

FORK

Main Shift(3-4)

1шт.

16

MT40009848

PIN

1шт.

17

MT40029203

O-RING,2.40mm Thk x 14.8mm OD

D14.8 x W2.4

2шт.

18

MT40010268

BOLT

Forward/Reverse Shift

2шт.

19

MT40012614

LEVER

4WD

1шт.

20

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

D15.8 x W2.4

1шт.

21

MT40236435

ARM

4WD

1шт.

22

MT40236807

LEVER

4WD

1шт.

23

MT40029108

HEADED PIN,M10 x 20mm

Head, D10 x 20L

1шт.

24

MT40028158

WASHER,10.50mm ID x 18mm OD x 2mm Thk

OD18 x ID 10.5 x 2T

3шт.

25

MT40029132

HAIR PIN COTTER,M10

D10 x 0L

3шт.

26

MT40029172

PIN,6mm OD x 35mm L

Spring, D6 x 35L

2шт.

27

MT40029040

NUT,Hex, M8 x 1.25

Hex, Small, M8 x P1.25

1шт.

28

MT40008386

KNOB

4WD

1шт.

29

MT40009995

SHIFT RAIL,16mm OD x 302mm L

Range, OD16 x 302L

1шт.

30

MT40009191

FORK

Range (2-4)

1шт.

31

MT40009190

FORK

Range (1-3)

1шт.

32

MT40009858

BOLT

Range Fork, O.D14x29L

1шт.

33

MT40010196

ROLLER,8mm ID x 12mm OD x 12.50mm L

OD12.0 x ID8.0 x 12.5L

2шт.

34

MT40029314

SNAP RING,M6

D6

2шт.

35

MT40009858

BOLT

Self Lock

2шт.

36

MT40009317

CAM

Range Lever

1шт.

37

MT40032433

ARM

Range

1шт.

38

MT40012309

LINK,25mm x 9mm Thk

Range, 25 x 9T

1шт.

39

MT40029265

SNAP RING,M20

Snap, D20

1шт.

40

MT40028163

WASHER,21mm ID x 34mm OD x 3mm Thk

OD34 x ID16.2 x 4T

2шт.

41

MT40009903

SHAFT

Hand Lever

1шт.

42

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

Spring

1шт.

43

MT40011702

LEVER

Lever, Range

1шт.

44

MT40029047

NUT,Hex, M10 x 1.25

Hex, Small, M10 x P1.25

1шт.

45

MT40229661

KNOB

Range

1шт.

46

MT40012358

SPRING,9.20mm OD x 51mm L

D1.8 x D9.2 x 51L

1шт.

47

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

D11.8 x W2.4

2шт.

48

MT40012772

PIN,4mm OD x 35mm L

Spring, D4 x 35

1шт.

49

MT40029167

PIN,6mm OD x 25mm L

Spring, D6 x 25

2шт.

50

MT40012771

PIN,4mm OD x 35mm L

Spring, D4 x 25

2шт.

51

MT40029167

PIN,6mm OD x 25mm L

Spring, D6 x 25

1шт.

52

MT40029121

PIN,25mm OD x 20mm L

Split, D25 x 20

1шт.
