(10.106.04) - VALVE MECHANISM

Запчасти Case IH FARMALL 50B (10.106.04) - VALVE MECHANISM (10) - ENGINE

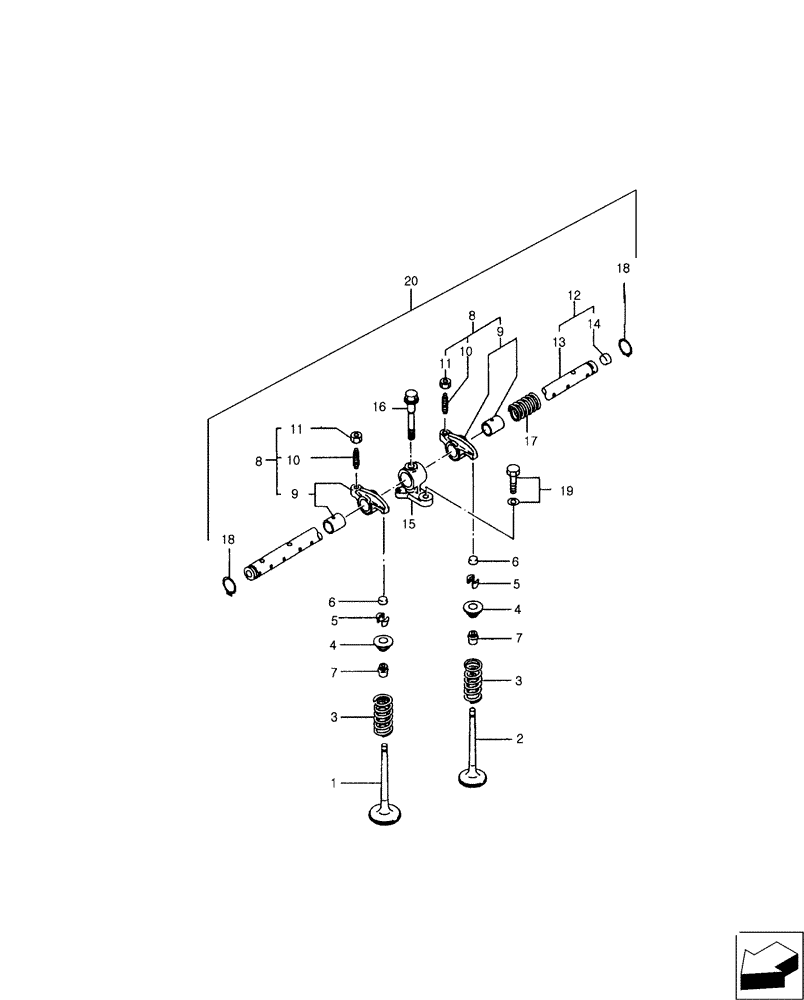

Схема запчастей Case IH FARMALL 50B - (10.106.04) - VALVE MECHANISM (10) - ENGINE
1
10
7
8
3
9
10
7
13
6
16
19
11
8
12
5
6
18
20
4
15
18
2
4
17
3
14
9
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40009581

VALVE

Intake

4шт.

2

MT40009582

VALVE

Exhaust

4шт.

3

MT40219465

VALVE SPRING,D4mm x D24mm x 48.85mm L

8шт.

4

MT40009951

RETAINER

Valve Upper

8шт.

5

MT40009583

ROCKER ARM COTTER

Valve

16шт.

6

MT40009584

CAP

Valve

8шт.

7

MT40007384

SEAL

Valve Stem

8шт.

8

MT40006978

ROCKER

Includes: 9-11

8шт.

9

NSS

NOT SOLD SEPARAT

ROCKER Bushing

8шт.

10

MT40009566

SCREW

Rocker

8шт.

11

MT40029055

NUT,Hex, M8 x 1.25

Hex Small, M8 x P1.25

8шт.

12

MT40006959

ROCKER

Shaft Assy., Includes: 13-14

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT Rocker

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG Rocker Shaft

2шт.

15

MT40009944

BRACKET

Rocker Shaft

4шт.

16

MT40009568

BOLT

Rocker Bracket

4шт.

17

MT40011945

SPRING,1.8mm ID x 21.3mm OD x 50.3mm L

Rocker, D1.8 x D21.3 x 50.3L

3шт.

18

MT40029264

SNAP RING,M19

Snap, D19

2шт.

19

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex., M8 x P1.25 x 25L

4шт.

20

MT40006966

ROCKER

Shaft Assembly Includes: 1-19

1шт.
