(10.101.02) - CYLINDER HEAD

Запчасти Case IH FARMALL 50B (10.101.02) - CYLINDER HEAD (10) - ENGINE

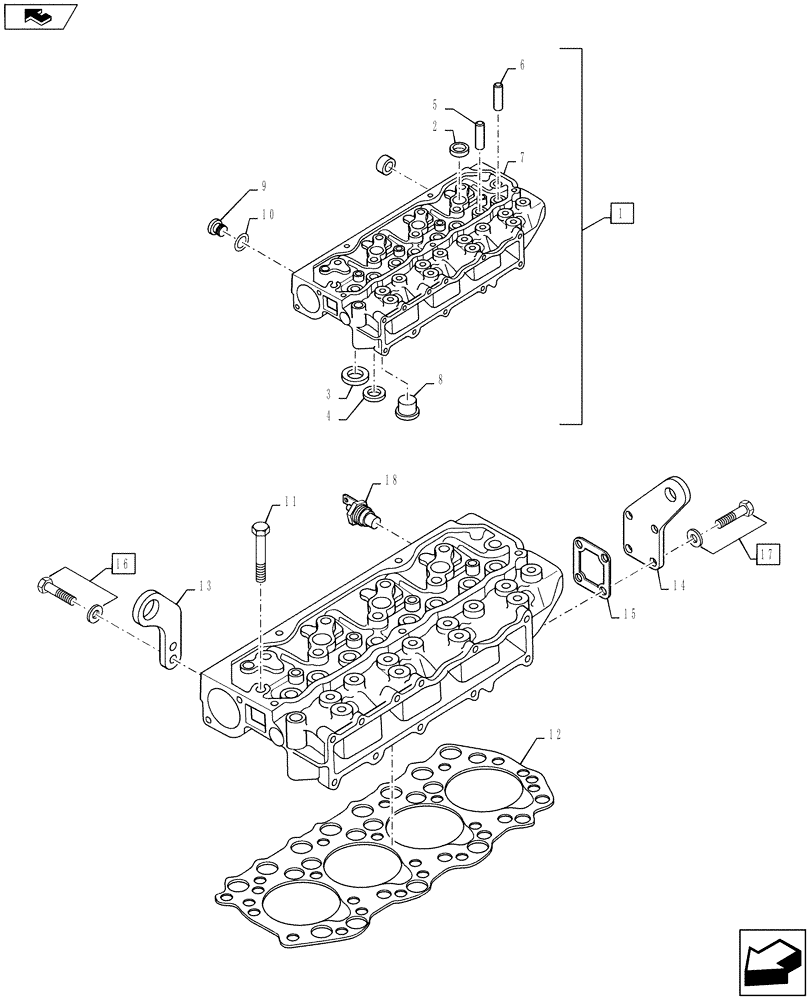

Схема запчастей Case IH FARMALL 50B - (10.101.02) - CYLINDER HEAD (10) - ENGINE
6
17
10
8
15
5
18
13
9
1
home
14
16
11
12
2
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT20107557

CYLINDER HEAD

Includes: 2-10

1шт.

2

NSS

NOT SOLD SEPARAT

CAP OD25 x BH x 1.6T

7шт.

3

NSS

NOT SOLD SEPARAT

INSERT Intake Valve Seat

4шт.

4

NSS

NOT SOLD SEPARAT

INSERT Exhaust Valve Seat

4шт.

5

NSS

NOT SOLD SEPARAT

GUIDE Valve(IN)

4шт.

6

NSS

NOT SOLD SEPARAT

GUIDE Valve(EX)

4шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER, Head

1шт.

40192080

1шт.

8

MT40190184

JET

Combustion

4шт.

9

MT40012789

PLUG,M16 x 1.5

M16 x 1.5T

1шт.

10

MT40011806

GASKET,1.40mm Thk

Drain Plug, 1.4T

1шт.

11

MT40009525

BOLT

Cylinder Head, M12 x 1.75 x 103L

18шт.

12

MT40006823

GASKET

Cylinder Head

1шт.

13

MT40012333

LIFTING EYE,4.50mm Thk

Front, 4.5T

1шт.

14

MT40011907

LIFTING EYE,4.50mm Thk

Rear, 4.5T

1шт.

15

MT40006915

GASKET,9mm ID x 1mm Thk

Head Rear, ID9 x 1T

1шт.

16

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

Hex, M8 x P1.25 x 16L

2шт.

17

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, M8 x P1.25 x 20L

4шт.

18

MT40007156

TEMPERATURE SENDER,50 Degree, - 120 Degree,

Water Temp., 50DEG-120DEG

1шт.
