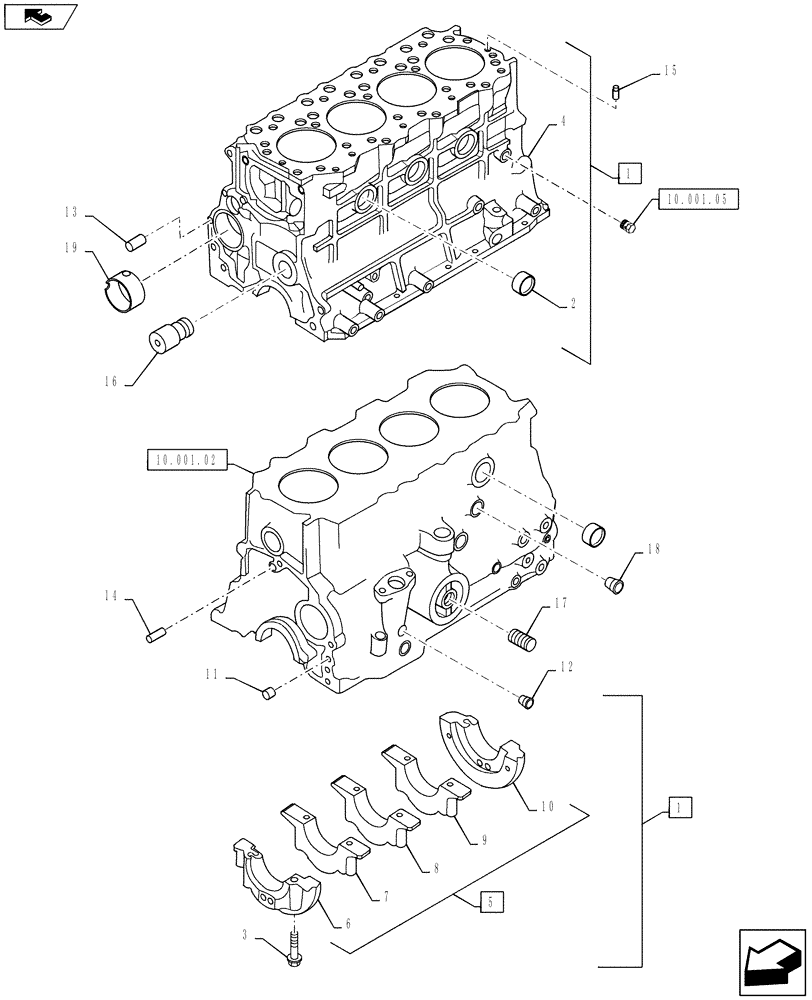

Запчасти Case IH FARMALL 50B (10.001.02) - CYLINDER BLOCK ASSEMBLY (10) - ENGINE

1

MT20102378

CRANKCASE

Cylinder Block Includes: 1-10, 19

1шт.

2

MT40012819

CAP,35mm OD x 10mm High x 1.50mm Thk

OD35 X 10H X 1.5T

6шт.

3

MT40009529

BOLT,M12 x 1.75 x 75mm

Bearing Cap, M12 X 1.75 X 75L

10шт.

4

NSS

NOT SOLD SEPARAT

CASE Crank

1шт.

5

NSS

NOT SOLD SEPARAT

CAP Bearing, Includes: 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

CAP Bearing NO1

1шт.

7

NSS

NOT SOLD SEPARAT

CAP Bearing NO2

1шт.

8

NSS

NOT SOLD SEPARAT

CAP Bearing NO3

1шт.

9

NSS

NOT SOLD SEPARAT

CAP Bearing NO4

1шт.

10

NSS

NOT SOLD SEPARAT

CAP Bearing NO5

1шт.

11

MT40012807

CAP,5mm x 16mm OD x 1mm Thk

OD16X5HX1T

3шт.

12

MT40012846

PLUG,Taper, 1/8"

Taper, PT1/8

4шт.

13

MT40009641

DOWEL,16mm OD x 40mm L

Dowel, OD16 X 40L

2шт.

14

MT40012840

DOWEL,8mm OD x 18mm L

Dowel, OD8 X 18L

6шт.

15

MT40012833

DOWEL,5mm OD x 12mm L

Dowel, OD5 X 12L

2шт.

16

MT40009683

SHAFT,40mm OD x 60mm L

Idler, OD40 X 60L

1шт.

17

MT40009603

SHAFT

Oil Filter, OD12 X 28L

1шт.

18

MT40012847

PLUG,3/8”

Taper, PT3/8

2шт.

19

NSS

NOT SOLD SEPARAT

BUSHING Cam Shaft Front, OD57 X 1.65T X 30L

1шт.
