(90.108.03) - SLOW MOVING VEHICLE

Запчасти Case IH FARMALL 50B (90.108.03) - SLOW MOVING VEHICLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

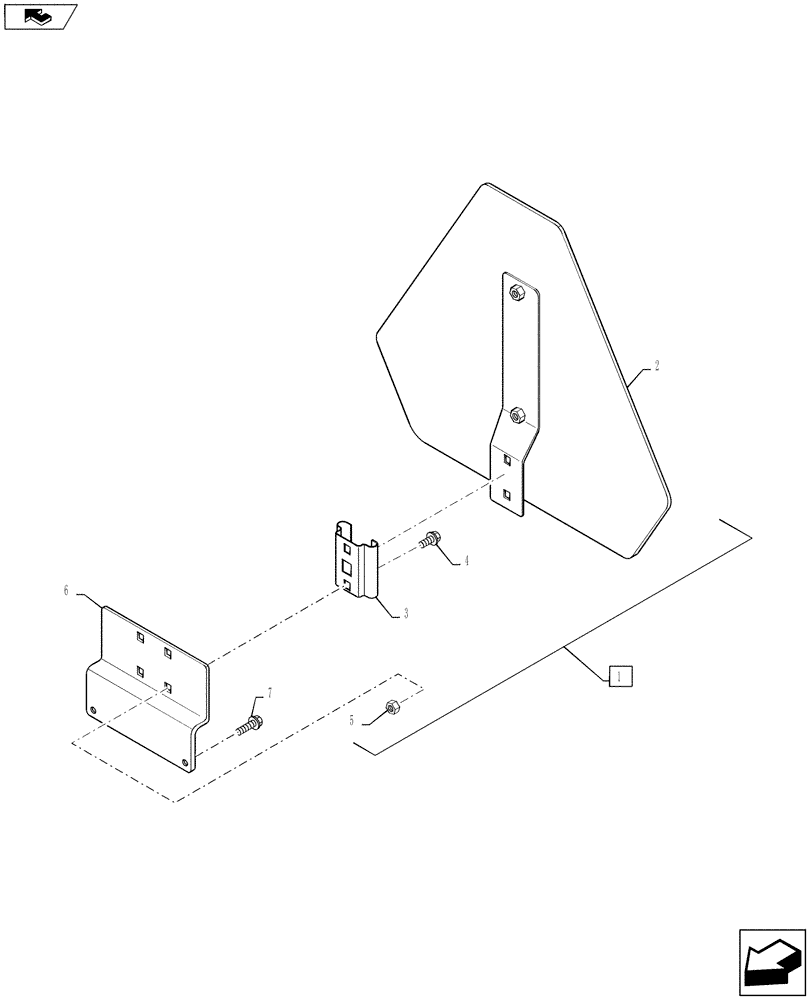

Схема запчастей Case IH FARMALL 50B - (90.108.03) - SLOW MOVING VEHICLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
7
4
5
3
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

KIT, SMV Includes: Ref. 2-5

1шт.

40229668

1шт.

2

MT40229669

PLATE

SMV

1шт.

3

MT40229670

BRACKET, SUPPORTING

SMV

1шт.

4

MT40233958

BOLT

Cup

2шт.

5

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange, M8 x 1.25

2шт.

6

MT40219591

BRACKET

SMV Frame

1шт.

7

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

Hex, W/Washer M8 x 1.25 x 25L

2шт.
