(90.100.04) - PEDAL FRAME - 16X16

Запчасти Case IH FARMALL 50B (90.100.04) - PEDAL FRAME - 16X16 (90) - PLATFORM, CAB, BODYWORK AND DECALS

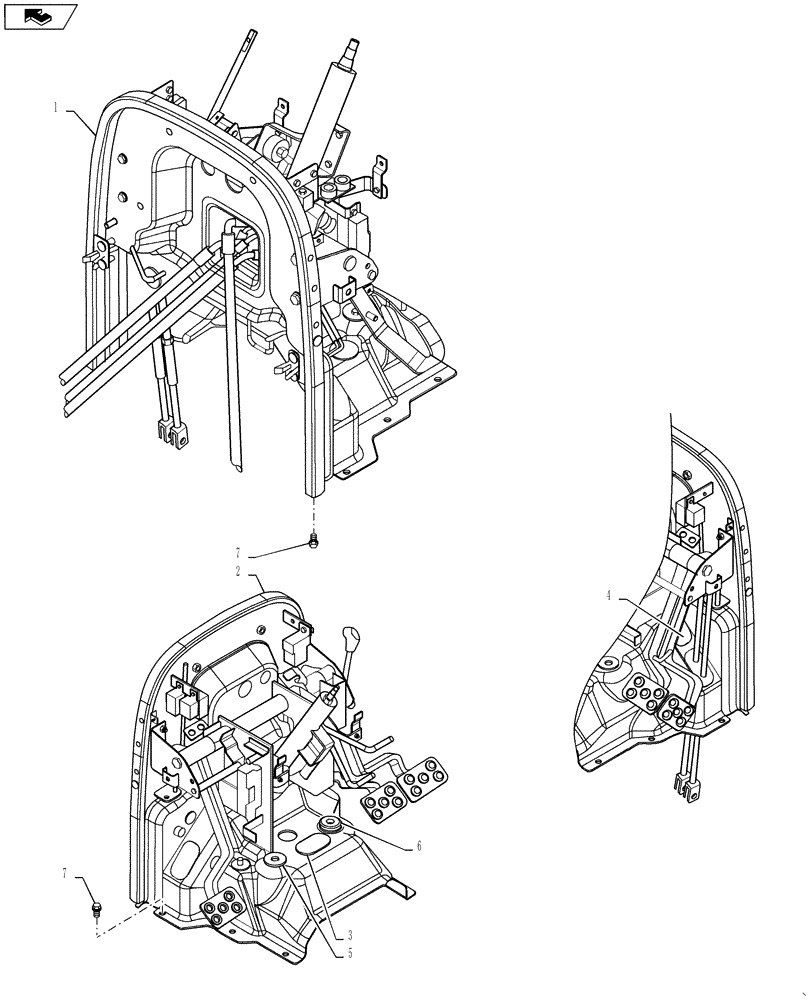

Схема запчастей Case IH FARMALL 50B - (90.100.04) - PEDAL FRAME - 16X16 (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
3
7
1
6
4
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Pedal Includes: Ref. 2-7

1шт.

2

MT40233353

SUPPORT

Pedal

1шт.

3

MT40007466

GROMMET

2.5T

1шт.

4

MT40007325

GROMMET

Creeper Lever 2.5T

1шт.

5

MT40007414

GROMMET

Forward/Reverse Shaft OD38 x ID16 x 2.5T

1шт.

6

MT40007356

RUBBER SLEEVE,12mm OD x 2.5mm Thk

Creeper Lever, D12 x 2.5T

1шт.

7

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

Hex, M8 x 1.25 x 25

8шт.
