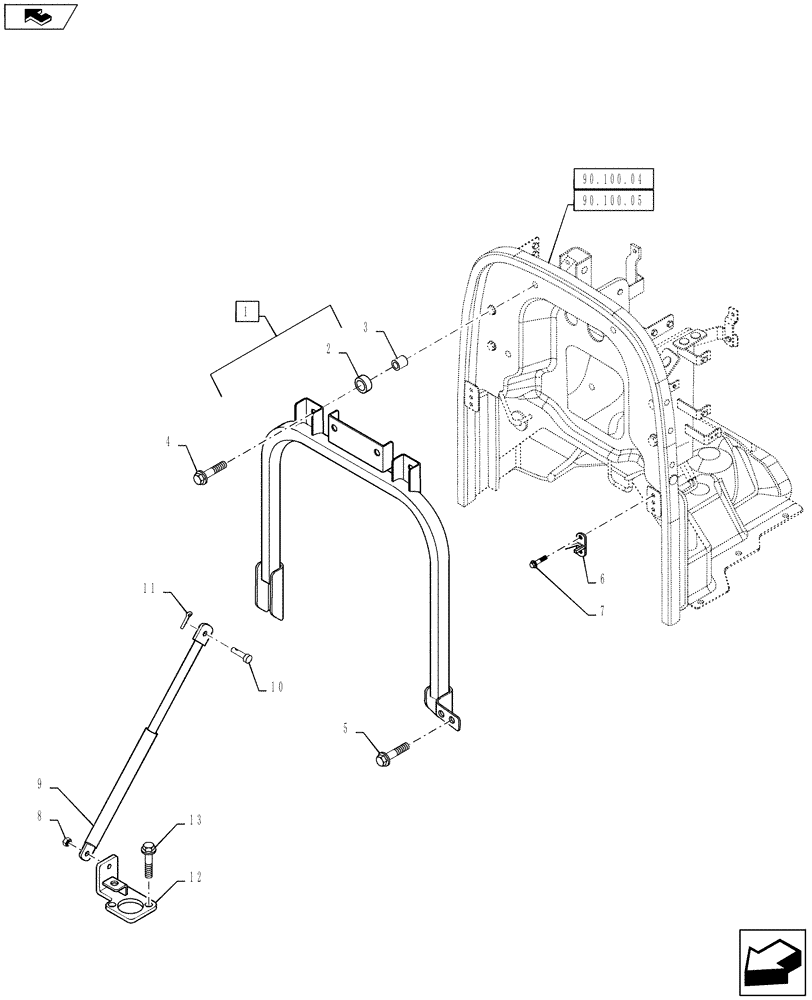

Запчасти Case IH FARMALL 50B (90.100.02) - HOOD SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40202757

SUPPORT

Hood

1шт.

2

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

Pedal Frmae OD20 x ID14 x 2T

2шт.

3

MT40009979

SPACER,9.2mm ID x 13.8mm OD x 18mm L

Mount OD13.8 x ID9.2 x 18L

2шт.

4

MT40029010

BOLT,Hex, M8 x 1.25 x 35mm

Hex, M8 x 1.25 x 35

2шт.

5

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

Hex, M10 x 1.25 x 25

2шт.

6

MT40008372

GUIDE

Hood

2шт.

7

MT40028674

SCREW,M8 x 1.25 x 25mm L

M8 x 1.25 x 25

4шт.

8

MT40029075

FLANGE NUT,Hex, M8 x 1.25

Flange, M8 x 1.25

4шт.

9

MT40007643

GAS STRUT

Gas

1шт.

10

MT40029106

PIN,M8 x 35mm L

D8 x 35

1шт.

11

MT40029131

PIN,M8

Snap

1шт.

12

MT40012261

BRACKET

Gas Spring

1шт.

13

MT40028924

BOLT,Hex, M8 x 1.25 x 30mm

M8 x 1.25 x 30

2шт.
