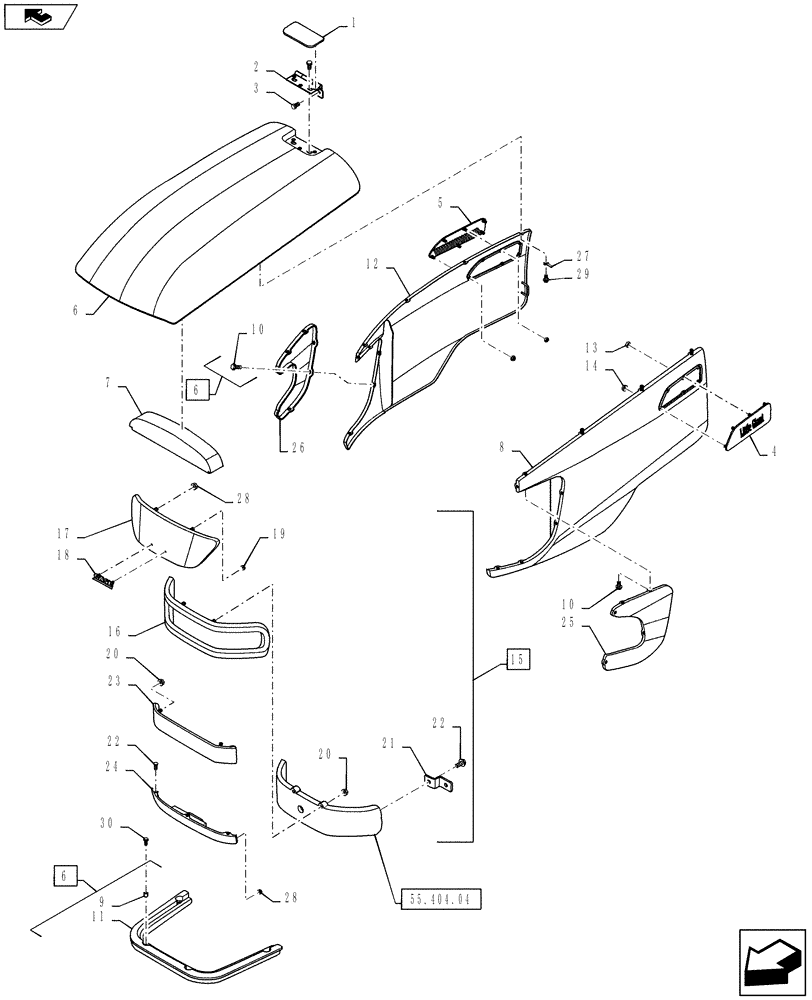

Запчасти Case IH FARMALL 50B (90.100.01) - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40235610

COVER

Hinge

1шт.

2

MT40012635

HINGE

1шт.

3

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

Hex W/Washer M8 x 1.25 x 20L

4шт.

4

MT40235611

COVER

Exhaust, LH

1шт.

5

MT40235612

COVER

Exhaust, RH

1шт.

6

MT40210917

HOOD

Complete Includes: Ref. 9-11

1шт.

7

MT40006836

SEAL

Radiator Upper

1шт.

8

MT40210918

COVER

Side, LH

1шт.

9

MT40009608

SPACER

OD12 x ID10 x 18L

4шт.

10

MT40028963

BOLT,Hex, M6 x 1 x 12mm

Hex W/Washer M6 x 1 x 12L

16шт.

11

MT40226182

SEAL

1шт.

12

MT40210921

COVER

Side, RH

1шт.

13

MT40009447

NUT,Silver, Rivet

Speed, 0.4T

2шт.

14

MT40029072

FLANGE NUT,M5 x 0.8

Flange, M5

4шт.

15

MT20117210

GRILLE

Complete Includes: Ref. 16-24

1шт.

16

MT40226980

BEZEL

1шт.

17

MT40226976

SCREEN

Net, Front Upper

1шт.

18

MT40211189

EMBLEM

CASE

1шт.

19

MT40251058

NUT

Speed

2шт.

20

MT40029073

FLANGE NUT,M6 x 1.0

Flange M6 x 1

15шт.

21

MT40226981

BRACKET

Lamp

2шт.

22

MT40028964

BOLT,Hex, M6 x 1 x 16mm

Hex W/Washer M6 x 1 x 16L

5шт.

23

MT40226977

SCREEN

NET, Front Under

1шт.

24

MT40211148

GRILLE

1шт.

25

MT40226978

SCREEN

LH

1шт.

26

MT40226979

SCREEN

RH

1шт.

27

MT40012735

CLAMP,10mm W x 95mm L

10W x 95L

3шт.

28

MT40029073

FLANGE NUT,M6 x 1.0

Flange M6

6шт.

29

MT40028998

BOLT,M6 x 1 x 16mm L

Hex, W/Washer M6 x 1 x 16L

8шт.

30

MT40029010

BOLT,Hex, M8 x 1.25 x 35mm

Hex W/Washer M8 x 1.25 x 35L

4шт.
