(88.090.11) - DIA KIT, TRACTOR, REAR VIEW MIRROR

Запчасти Case IH FARMALL 50B (88.090.11) - DIA KIT, TRACTOR, REAR VIEW MIRROR (88) - ACCESSORIES

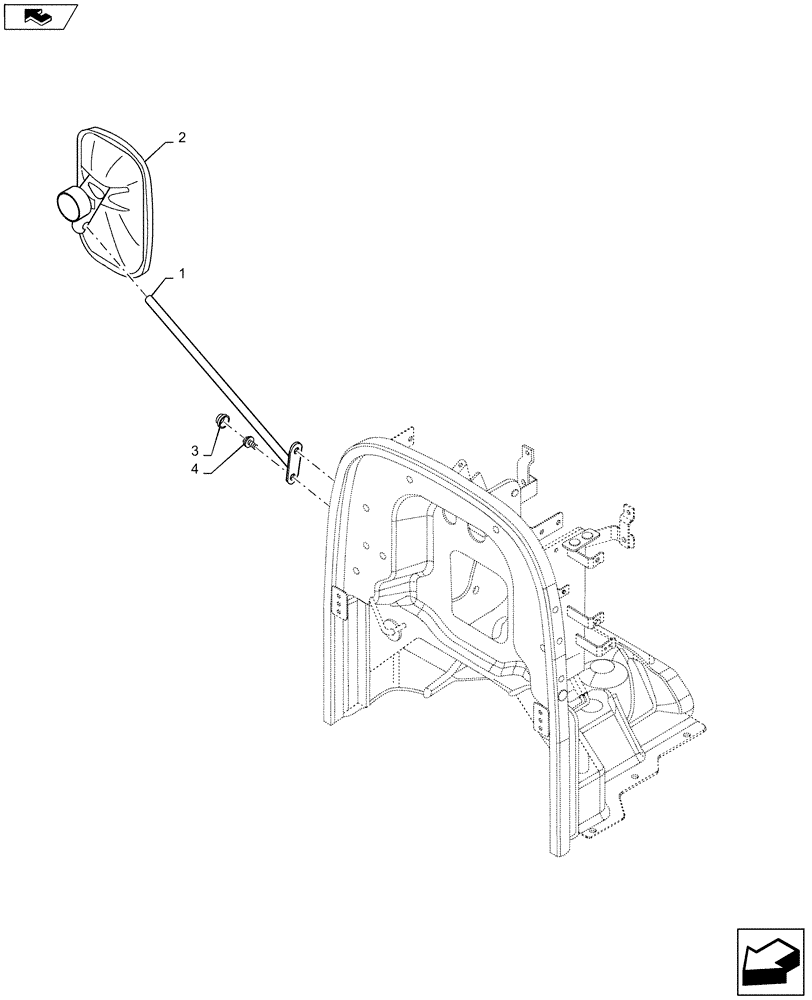

Схема запчастей Case IH FARMALL 50B - (88.090.11) - DIA KIT, TRACTOR, REAR VIEW MIRROR (88) - ACCESSORIES
3
1
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40012260

MIRROR ARM

Support, Mirror

1шт.

2

MT40007650

REAR VIEW MIRROR

1шт.

3

MT40008371

CAP

Hex Bolt, Plastic

2шт.

4

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

Hex, M8XP1.25X20L

2шт.

5

718877036

RH, Rear View Mirror Kit

1шт.

Order Through Wholegoods

1шт.
