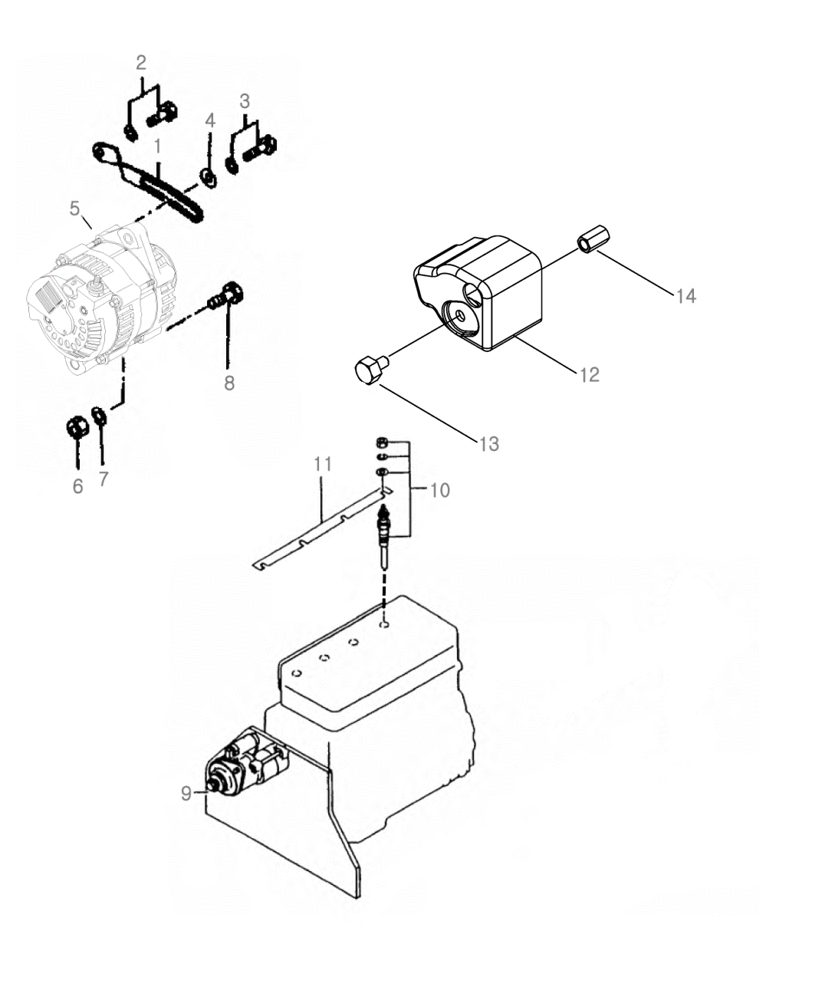

Запчасти Case IH FARMALL 50B (55.201.03) - ALTERNATOR & GLOW PLUGS (55) - ELECTRICAL SYSTEMS

1

MT40011923

PLATE,6mm Thk

Adjust, 6T

1шт.

2

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, W/Washer, M8 x P1.25 x 20L

1шт.

3

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

Hex, W/Washer, M8 x P1.25 x 20L

1шт.

4

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

OD21 x ID10.5 x 2T

1шт.

5

MT40006956

ALTERNATOR

1шт.

6

MT40029048

NUT,Hex, M10 x 1.25

Hex, M10 x P1.25

1шт.

7

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring, OD18.4 x ID10.2 x 2.5T

1шт.

8

MT40029467

BOLT,Hex, M10 x 1.25 x 65mm

Hex, M10 x 1.25P x 65L

1шт.

9

MT40006954

STARTER MOTOR

1шт.

10

MT40059417

PLUG

Glow

4шт.

11

MT40011816

PLATE,1.60mm Thk

Connection, 1.6T

1шт.

12

MT40229811

COVER

Starter Motor

1шт.

13

MT40229814

BOLT

Starter Motor Cover

1шт.

14

MT40229813

NUT

Starter Motor Cover

1шт.
