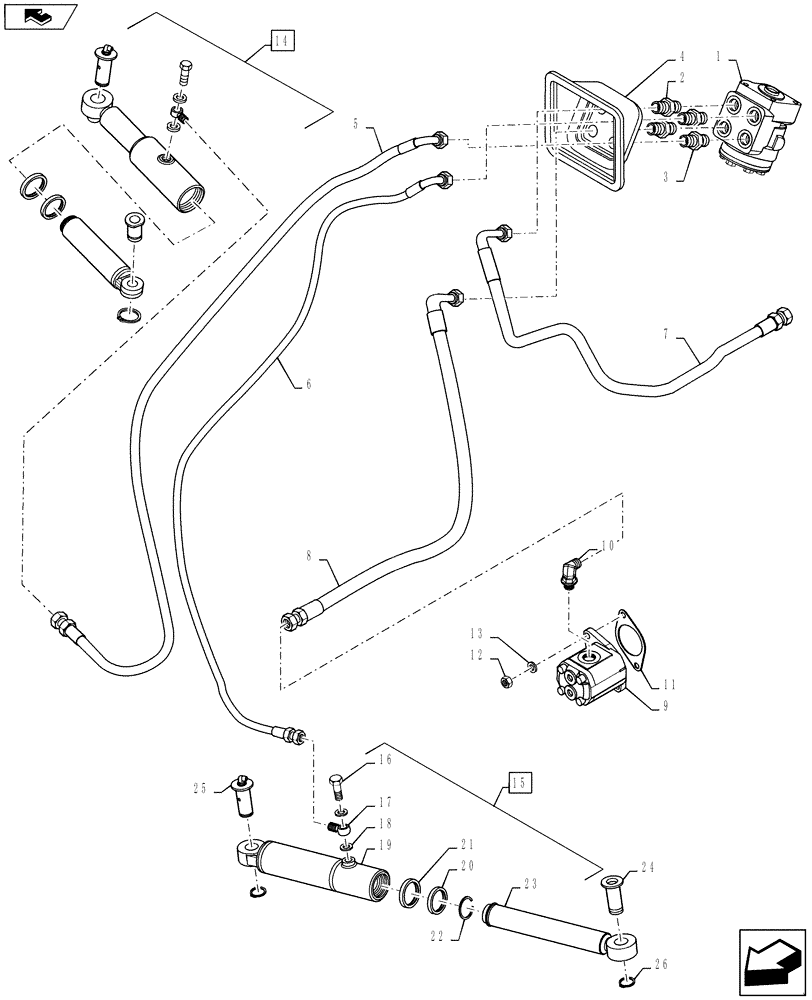

Запчасти Case IH FARMALL 50B (41.216.02) - STEERING CYLINDER & LINES - HST (41) - STEERING

1

MT40200338

STEERING VALVE

Power 50CC

1шт.

2

MT40010152

JOINT,3/8" x 3/8"

3/8-3/8

1шт.

3

MT40010149

JOINT,3/8" x 1/4"

3/8-1/4

2шт.

4

MT40007310

COVER

Steering Hose

1шт.

5

MT40007911

HOSE,6.35mm ID x 1630mm L

Steering Cylinder 1/4 x 1630L

2шт.

6

MT40007849

HOSE

Steering Cylinder 3/8 x 1530L

1шт.

7

MT40243624

HOSE

Steering Drain 3/8 x 680L

1шт.

8

MT40007857

HOSE

Steering Pressure 3/8 x 870L

1шт.

9

MT40007602

HYDRAULIC PUMP

Steering 8cc

1шт.

10

MT40010151

JOINT

3/8-3/8

1шт.

11

MT40006913

GASKET,54mm ID x 0.6mm Thk

Pump ID 54 x 0.6T

1шт.

12

MT40029040

NUT,Hex, M8 x 1.25

Hex, Small M8 x 1.25

2шт.

13

MT40029546

WASHER,8.20mm ID x 15.40mm OD x 2mm Thk

Spring OD15.4 x ID8.2 x 2T

2шт.

14

MT40008014

STEERING ASSY

Cylinder ID40 x 181L LH Includes: 16-23

1шт.

15

MT40007986

STEERING ASSY,40mmm ID x 181mm L

Cylinder ID10 x 181L RH Includes: 16-23

1шт.

16

MT40009527

BOLT,M12 x 1.75 x 27mm L

Union M12 x 1.75 x 27L

1шт.

17

MT40009814

ADAPTER

Cylinder Port 1/4

1шт.

18

MT40012552

SEAL,12.20mm ID x 19mm OD, 1.50mm Thk, Copper

Copper OD19 x ID12.2 x 1.5T

2шт.

19

MT40008038

PIPE,40mm ID

Cylinder ID 40

1шт.

20

MT40007271

GASKET,35mm ID x 45mm OD x 6mm Thk

U, OD45 x ID35 x 6T

1шт.

21

MT40007269

SEAL,35mm ID x 43mm OD x 6mm Thk

Dust, OD43 x ID35 x 6T

1шт.

22

MT40011318

RING,32.2mm OD x 2.6mm Thk

WIRE Ring D32.2 x 2.6T

1шт.

23

MT40011319

ACCESSORIES

Ram, Steering Cylinder D35.3/D50

1шт.

24

MT40009475

PIN,20mm OD x 59mm L

Steering Cylinder D20 x59L

2шт.

25

MT40009476

PIN,20mm OD x 59mm L

Steering Cylinder D20 x 59L

2шт.

26

MT40029266

SNAP RING,M20

D20

4шт.

27

MT40289688

SEAL KIT

Seal Kit, Power Steering Pump, Used On MT40200338

1шт.

Not Illustrated

1шт.
