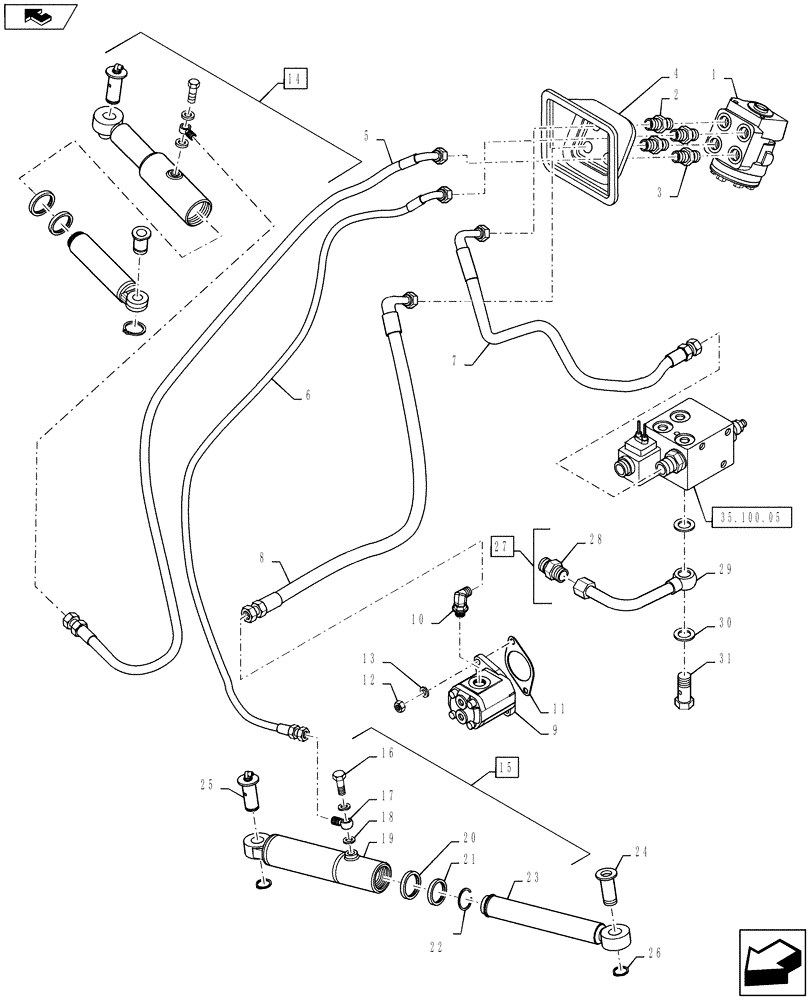

Запчасти Case IH FARMALL 50B (41.216.01) - STEERING CYLINDER & LINES - 16X16 (41) - STEERING

1

MT40200338

STEERING VALVE

Steering (Normal) 50CC/REV X 175KGF/CM 2

1шт.

2

MT40010152

JOINT,3/8" x 3/8"

HOFCM 0303G PF3/8-PF3/8

1шт.

3

MT40010149

JOINT,3/8" x 1/4"

PF3/8-PF1/4

2шт.

4

MT40007310

COVER

Steering Hose

1шт.

5

MT40007911

HOSE,6.35mm ID x 1630mm L

Steering Cylinder PF1/4 X 1630L

1шт.

6

MT40007849

HOSE

Steering Cylinder PF1/4 X 1530L

1шт.

7

MT40007852

HOSE,3/8” x 1110mm L

Steering Drain PF3/8 X 1110L

1шт.

8

MT40007857

HOSE

Steering Pressure PF3/8 X 870L

1шт.

9

MT40007598

HYDRAULIC PUMP,6 CC

Steering 6CC/REV X C.C.W

1шт.

10

MT40010151

JOINT

HOFBM O303G PF3/8-PF3/8

1шт.

11

MT40006913

GASKET,54mm ID x 0.6mm Thk

Pump ID54 X 0.6T

1шт.

12

MT40029040

NUT,Hex, M8 x 1.25

Hex, SMALL M8 X P1.25

2шт.

13

MT40029546

WASHER,8.20mm ID x 15.40mm OD x 2mm Thk

Spr. S361080013 OD15.4 X ID8.2 X 2T

2шт.

14

MT40008014

STEERING ASSY

Cylinder, LH ID40 X 181L Includes: Ref. 16-23

1шт.

15

MT40007986

STEERING ASSY,40mmm ID x 181mm L

Cylinder, RH ID40 X 181L Includes: Ref. 16-23

1шт.

16

MT40009527

BOLT,M12 x 1.75 x 27mm L

Union M12 X 1.75 X 27L

1шт.

17

MT40009814

ADAPTER

Cylinder Port PF1/4

1шт.

18

MT40012552

SEAL,12.20mm ID x 19mm OD, 1.50mm Thk, Copper

Copper OD19 X ID12.2 X 1.5T

2шт.

19

MT40008038

PIPE,40mm ID

Cylinder ID40

1шт.

20

MT40007271

GASKET,35mm ID x 45mm OD x 6mm Thk

U OD45 X ID35 X6T

1шт.

21

MT40007269

SEAL,35mm ID x 43mm OD x 6mm Thk

Dust OD43 X ID35 X 6T

1шт.

22

MT40011318

RING,32.2mm OD x 2.6mm Thk

WIRE Ring D32.2 X 2.6T

1шт.

23

MT40011319

ACCESSORIES

RAM Steering Cylinder D35.3/D50

1шт.

24

MT40009475

PIN,20mm OD x 59mm L

Steering Cylinder D20 X 59L

2шт.

25

MT40009476

PIN,20mm OD x 59mm L

Steering Cylinder D20 X 59L

2шт.

26

MT40029266

SNAP RING,M20

S810020003 D20

4шт.

27

MT40008123

PIPE

PIPE ASSY V/V OUT

1шт.

28

MT40009978

JOINT,12mm OD x 3/8”

OD12 XPF3/8

1шт.

29

MT40012075

PIPE

PTO V/V Drain OD12 X 1.0T

1шт.

30

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded OD16.8 X 1.5T

2шт.

31

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

Union OD22 X PF3/8

1шт.

32

MT40289688

SEAL KIT

Seal Kit, Power Steering Pump, Used On MT40200338

1шт.

Not Illustrated

1шт.
