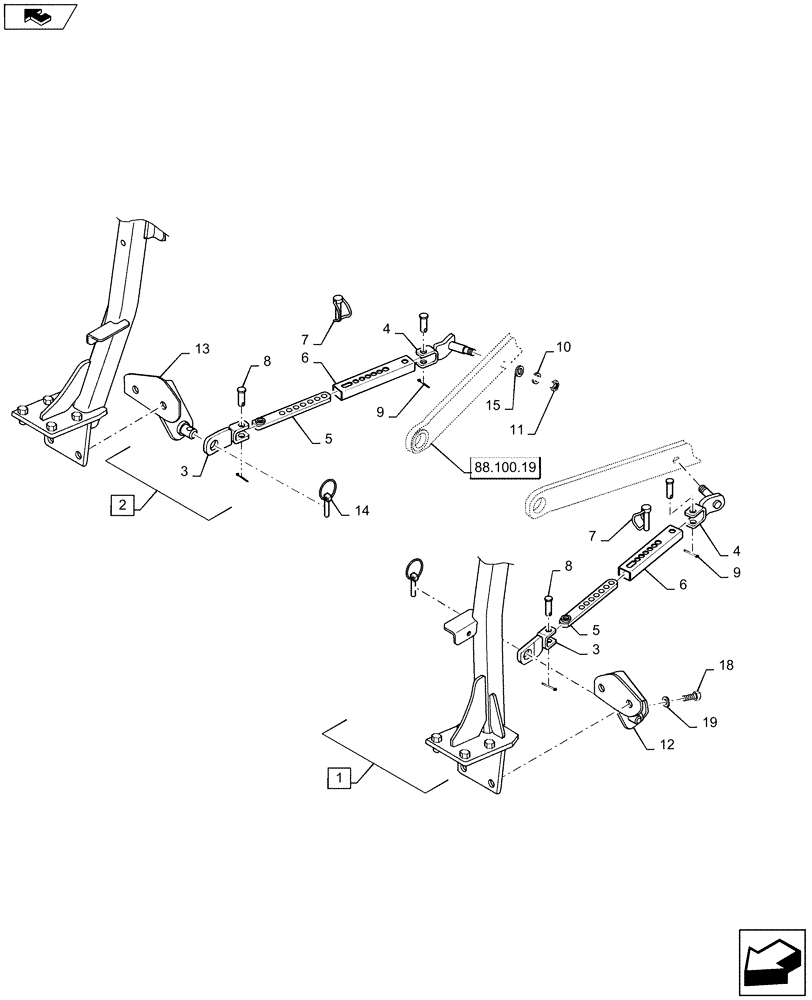

Запчасти Case IH FARMALL 50B (37.120.05) - CHECK LINK - PIN & PLATE STYLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40036345

STABILIZER

LH Includes: Ref. 3-9, Years: 13-SEP-07-27-FEB-09

1шт.

1

MT40213520

STABILIZER

LH Includes: Ref. 3-9, Years: 28-FEB-09-31-JUL-12

1шт.

1

MT40274356

STABILIZER

LH Includes: Ref. 3-9, Start Year: 01-AUG-12

1шт.

2

MT40036346

STABILIZER

RH Includes: Ref. 3-9, Years: 13-SEP-07-27-FEB-09

1шт.

2

MT40213521

STABILIZER

RH Includes: Ref. 3-9, Start Year: 13-SEP-07

1шт.

3

NSS

NOT SOLD SEPARAT

LINK, FRONT

2шт.

4

NSS

NOT SOLD SEPARAT

LINK, REAR

2шт.

5

NSS

NOT SOLD SEPARAT

LINK, INNER 25 x 12T

2шт.

6

NSS

NOT SOLD SEPARAT

LINK, OUTER 4.5T

2шт.

7

MT40036096

PIN

PIN, LINK

2шт.

8

MT40036102

PIN,17mm OD x 40mm L

PIN, HEAD I.D. 12 x O.D. 17 x 40L

4шт.

9

MT40036103

PIN,4mm OD x 25mm L

PIN, SPLIT DIA 4.0 x 25L

4шт.

10

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring O.D. 24.5 x I.D. 14.2 x 3.5 T, Years: 13-SEP-07-31-JUL-12

4шт.

10

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring O.D. 21.5 x I.D. 12.2 x 3 T, Start Year: 01-AUG-12

4шт.

11

MT40029051

NUT,Hex, M14 x 1.5

Hex Small M14 x 1.5 Pitch, Years: 13-SEP-07-31-JUL-12

2шт.

11

MT40029049

NUT,Hex, M12 x 1.25 Pitch

Hex Small M12 x 1.25 Pitch, Start Year: 01-AUG-12

2шт.

12

MT40011604

BRACKET

Check Chain, LH

1шт.

13

MT40011605

BRACKET

Check Chain, RH

1шт.

14

MT40012410

PIN,11mm OD x 50mm L

Link O.D. 11 x 50.0L

2шт.

15

MT40028176

WASHER,M8 x 1.25mm x 30mm L

O.D. 28 x I.D. 15 x 2.5 T, Years: 13-SEP-07-31-JUL-12

2шт.

15

MT40028172

WASHER,13mm ID x 24mm OD x 2.5mm Thk

O.D. 24 x I.D. 13 x 2.5 T, Start Year: 01-AUG-12

2шт.

16

MT40012505

BRACKET

Spring Bracket, Not Shown, Used Between 15 & 4

2шт.

17

MT40011513

SPRING

Not Shown, Connects Both Spring Brackets, See Ref 16

1шт.

18

MT40237347

BOLT,M14 x 2 x 35mm L

4шт.

19

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

O.D 24.5 x I.D. 14.2 x 3.5T

12шт.
